Using the Software

NOTE:
When connected to an online device, a connection status icon shows green on the device
name tab.
The configuration page (see figure 23) has a global navigation bar (ribbon,
each of the individual configuration pages can be accessed. These pages are:
•
•
•
•
•
•
•
On the left side of the tab is the AV Controls pane which can be used to switch inputs,
view active input and output status, execute an Auto-Image, freeze the displayed image,
and mute or unmute video and audio signals.
There is also a Device drop-down menu on the Device tab (
configuration options.

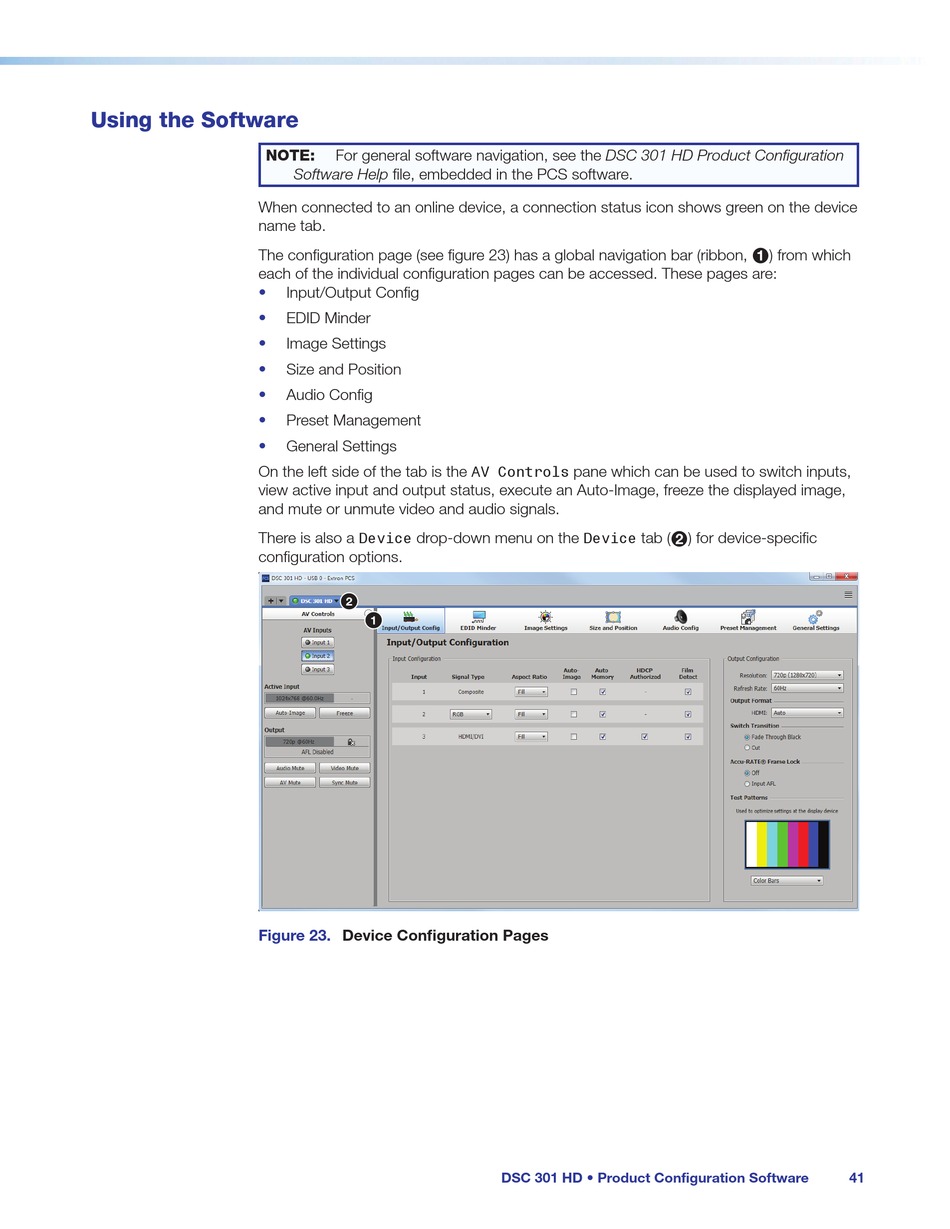

Figure 23.
For general software navigation, see the DSC 301 HD Product Configuration
Software Help file, embedded in the PCS software.
Input/Output Config
EDID Minder
Image Settings
Size and Position
Audio Config
Preset Management
General Settings
2
1
Device Configuration Pages
2
DSC 301 HD • Product Configuration Software
) from which
1
) for device-specific
41
