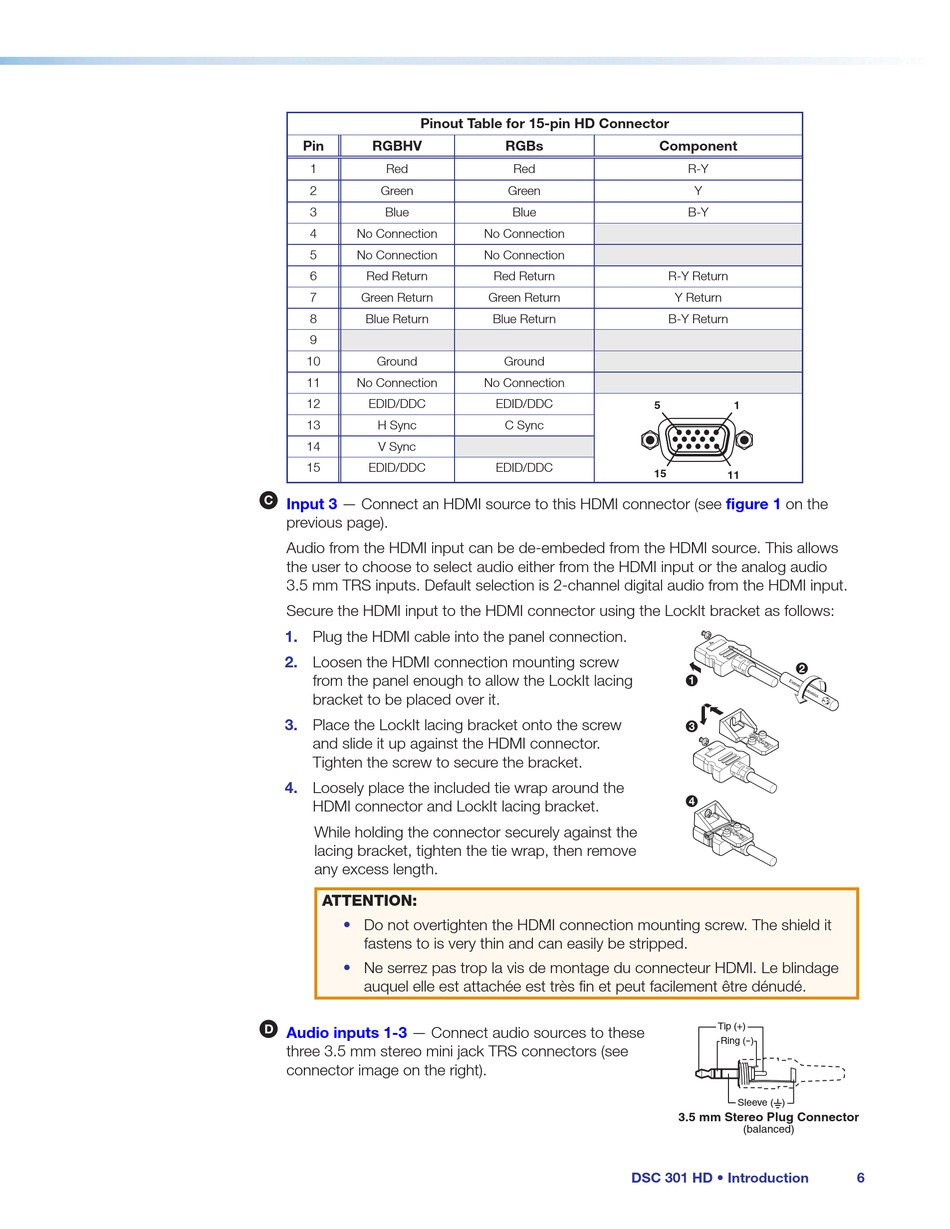

Pinout Table for 15-pin HD Connector
Pin RGBHV
1 Red
2 Green
3 Blue
4 No Connection
5 No Connection
6 Red Return
7 Green Return
8 Blue Return
9
10 Ground
11 No Connection
12 EDID/DDC
13 H Sync
14 V Sync
15 EDID/DDC
C
Input 3 — Connect an HDMI source to this HDMI connector (see
previous page).
Audio from the HDMI input can be de-embeded from the HDMI source. This allows
the user to choose to select audio either from the HDMI input or the analog audio
3.5 mm TRS inputs. Default selection is 2-channel digital audio from the HDMI input.
Secure the HDMI input to the HDMI connector using the LockIt bracket as follows:
1. Plug the HDMI cable into the panel connection.
2. Loosen the HDMI connection mounting screw
from the panel enough to allow the LockIt lacing
bracket to be placed over it.
3. Place the LockIt lacing bracket onto the screw
and slide it up against the HDMI connector.
Tighten the screw to secure the bracket.
4. Loosely place the included tie wrap around the
HDMI connector and LockIt lacing bracket.
While holding the connector securely against the
lacing bracket, tighten the tie wrap, then remove
any excess length.
ATTENTION:
• Do not overtighten the HDMI connection mounting screw. The shield it
fastens to is very thin and can easily be stripped.
• Ne serrez pas trop la vis de montage du connecteur HDMI. Le blindage
auquel elle est attachée est très fin et peut facilement être dénudé.
D
Audio inputs 1-3 — Connect audio sources to these
three 3.5 mm stereo mini jack TRS connectors (see
connector image on the right).
RGBs Component
Red
Green
Blue
No Connection
No Connection
Red Return
Green Return
Blue Return
Ground
No Connection
EDID/DDC
5
C Sync
EDID/DDC
15
DSC 301 HD • Introduction
R-Y
Y
B-Y
R-Y Return
Y Return
B-Y Return
1
11
figure 1 on the
2 2
1 1
3 3
4 4
3
Tip (+)
Ring (-)
Sleeve ( )
3.5 mm Stereo Plug Connector
(balanced)
6
