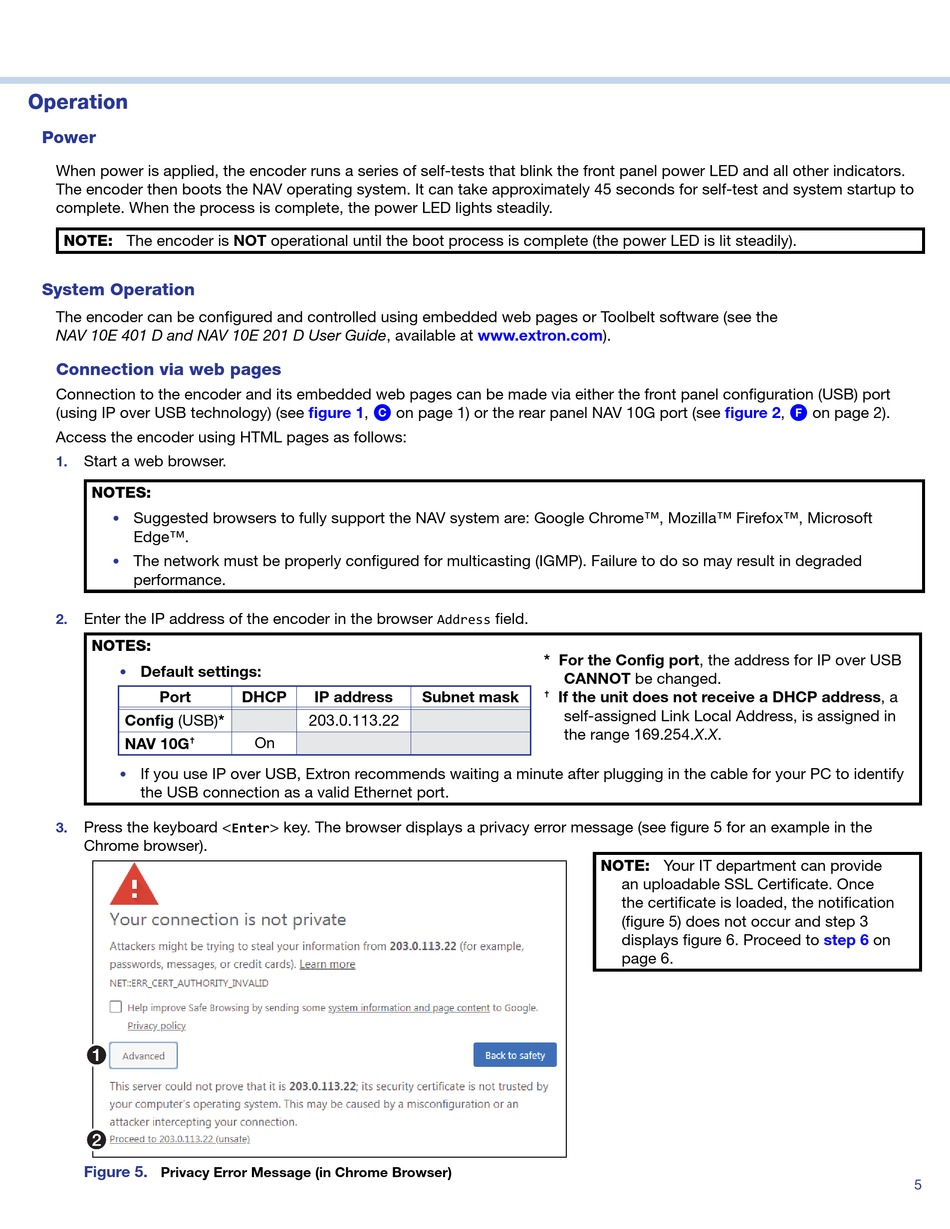

Operation

Power
When power is applied, the encoder runs a series of self-tests that blink the front panel power LED and all other indicators.
The encoder then boots the NAV operating system. It can take approximately 45 seconds for self-test and system startup to
complete. When the process is complete, the power LED lights steadily.
NOTE: The encoder is NOT operational until the boot process is complete (the power LED is lit steadily).
System Operation
The encoder can be configured and controlled using embedded web pages or Toolbelt software (see the
NAV 10E 401 D and NAV 10E 201 D User Guide, available at www.extron.com).

Connection via web pages

Connection to the encoder and its embedded web pages can be made via either the front panel configuration (USB) port
(using IP over USB technology) (see
Access the encoder using HTML pages as follows:
Start a web browser.
1.
NOTES:
Suggested browsers to fully support the NAV system are: Google Chrome™, Mozilla™ Firefox™, Microsoft
•
Edge™.
The network must be properly configured for multicasting (IGMP). Failure to do so may result in degraded
•
performance.
Enter the IP address of the encoder in the browser
2.
NOTES:
Default settings:
•
Port
Config (USB)*
NAV 10G

If you use IP over USB, Extron recommends waiting a minute after plugging in the cable for your PC to identify
•
the USB connection as a valid Ethernet port.
Press the keyboard <
3.
Chrome browser).
1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1
2 2 2 2 2 2 2 2 2 2 2 2 2 2 2 2 2 2
Figure 5.
Privacy Error Message (in Chrome Browser)
figure 1, on page 1) or the rear panel NAV 10G port (see
C
DHCP IP address
203.0.113.22
On
> key. The browser displays a privacy error message (see figure 5 for an example in the
Enter
field.
Address
* For the Config port, the address for IP over USB
CANNOT be changed.
Subnet mask If the unit does not receive a DHCP address, a

self-assigned Link Local Address, is assigned in
the range 169.254.X.X.
NOTE: Your IT department can provide
figure 2,
F
an uploadable SSL Certificate. Once
the certificate is loaded, the notification
(figure 5) does not occur and step 3
displays figure 6. Proceed to
page 6.
on page 2).
step 6 on
5
