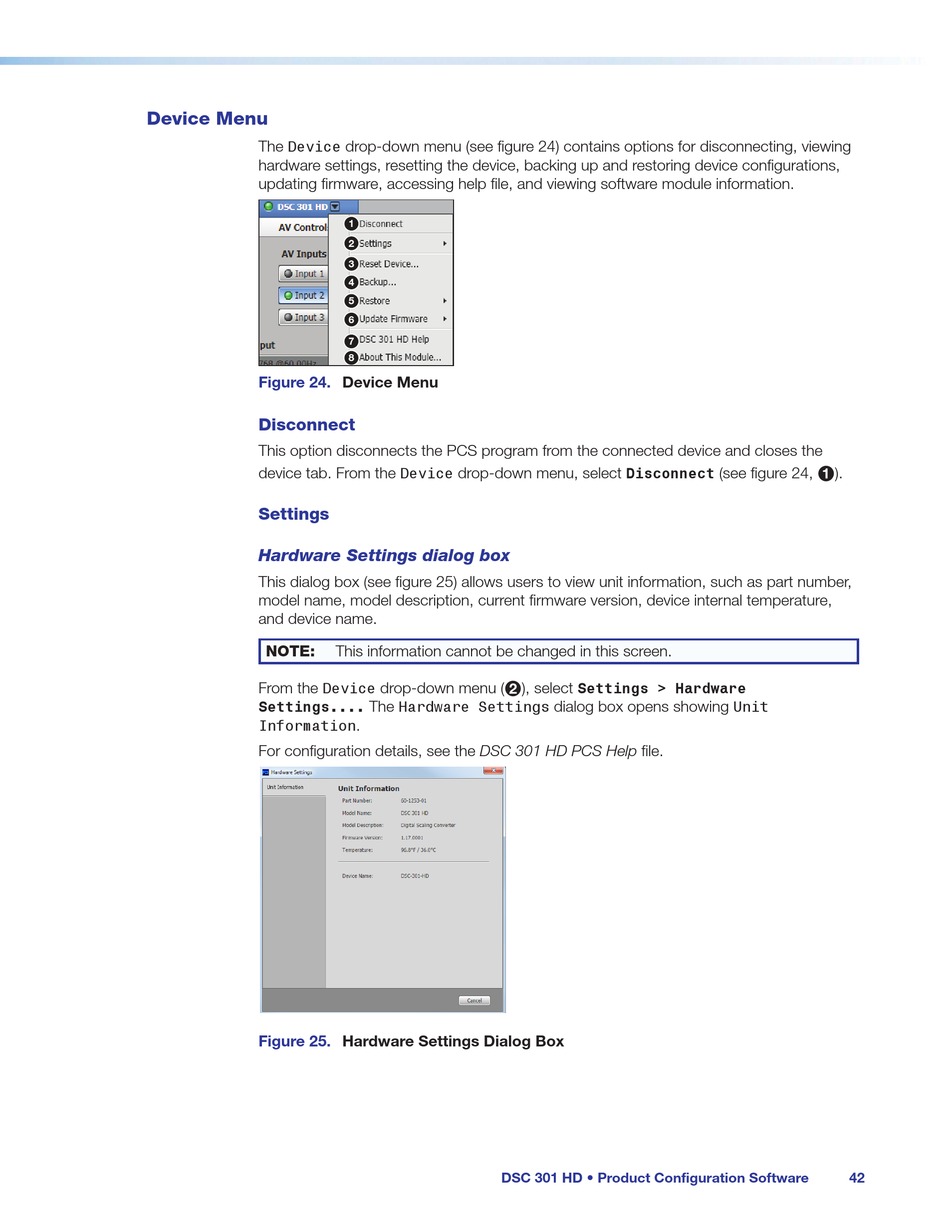

Device Menu

The Device drop-down menu (see figure 24) contains options for disconnecting, viewing
hardware settings, resetting the device, backing up and restoring device configurations,
updating firmware, accessing help file, and viewing software module information.
Figure 24.
Disconnect
This option disconnects the PCS program from the connected device and closes the
device tab. From the Device drop-down menu, select Disconnect (see figure 24,
Settings
Hardware Settings dialog box
This dialog box (see figure 25) allows users to view unit information, such as part number,
model name, model description, current firmware version, device internal temperature,
and device name.
NOTE:
From the Device drop-down menu (
Settings....
Information
For configuration details, see the DSC 301 HD PCS Help file.
Figure 25.
1
2
3
4
5
6
7
8
Device Menu
This information cannot be changed in this screen.
2
The Hardware Settings dialog box opens showing Unit
.
Hardware Settings Dialog Box
DSC 301 HD • Product Configuration Software
), select Settings > Hardware
).
