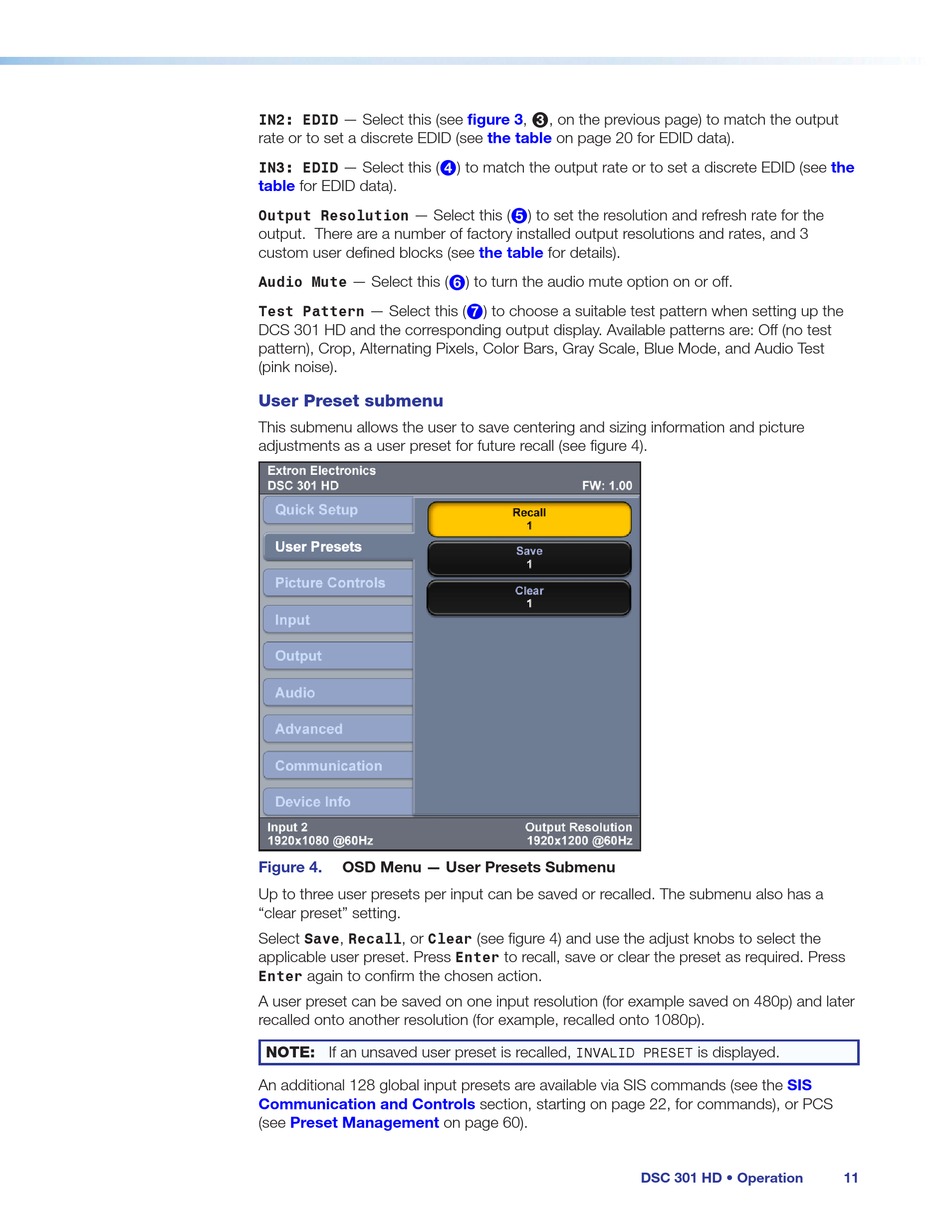

Extron electronics DSC 301 HD User Manual page 17

— Select this (see
IN2: EDID
rate or to set a discrete EDID (see
— Select this (
IN3: EDID
table for EDID data).
— Select this (
Output Resolution
output. There are a number of factory installed output resolutions and rates, and 3
custom user defined blocks (see
— Select this (
Audio Mute
— Select this (
Test Pattern
DCS 301 HD and the corresponding output display. Available patterns are: Off (no test
pattern), Crop, Alternating Pixels, Color Bars, Gray Scale, Blue Mode, and Audio Test
(pink noise).
User Preset submenu
This submenu allows the user to save centering and sizing information and picture
adjustments as a user preset for future recall (see figure 4).
Figure 4. OSD Menu — User Presets Submenu
Up to three user presets per input can be saved or recalled. The submenu also has a
"clear preset" setting.
Select Save , Recall , or Clear (see figure 4) and use the adjust knobs to select the
applicable user preset. Press Enter to recall, save or clear the preset as required. Press
again to confirm the chosen action.
Enter
A user preset can be saved on one input resolution (for example saved on 480p) and later
recalled onto another resolution (for example, recalled onto 1080p).
NOTE: If an unsaved user preset is recalled,
An additional 128 global input presets are available via SIS commands (see the
Communication and Controls
(see Preset Management
figure 3, , on the previous page) to match the output
3
the table on page 20 for EDID data).
) to match the output rate or to set a discrete EDID (see
4
) to set the resolution and refresh rate for the
5
the table for details).
) to turn the audio mute option on or off.
6
) to choose a suitable test pattern when setting up the
7
INVALID PRESET
section, starting on page 22, for commands), or PCS
on page 60).
is displayed.
SIS
DSC 301 HD • Operation
the
11
