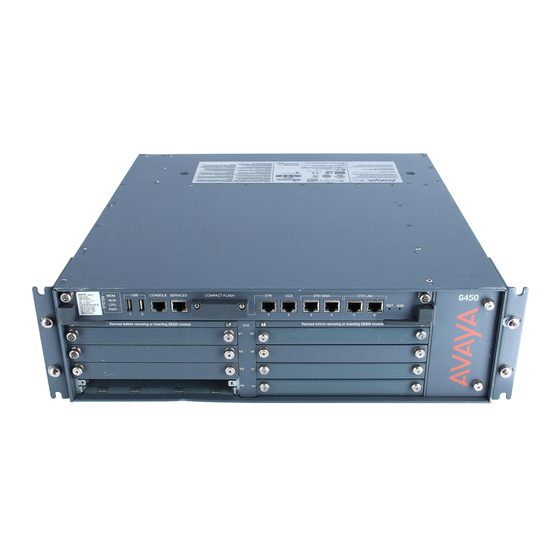

Avaya Media Gateway G350 User Manual

Integrated management release 5.0
Hide thumbs Also See for Media Gateway G350:
Table of Contents

Advertisement

Quick Links

See also: Administration Manual , Technical White Paper
Avaya Integrated Management
Release 5.0
G250/G350/G450 Manager User Guide
14-300166
Issue 5
October 2007

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Media Gateway G350 and is the answer not in the manual?

Questions and answers

Related Manuals for Avaya Media Gateway G350

Summary of Contents for Avaya Media Gateway G350

  • Page 1 Avaya Integrated Management Release 5.0 G250/G350/G450 Manager User Guide 14-300166 Issue 5 October 2007...
  • Page 2 Avaya support Avaya provides a telephone number for you to use to report problems or to ask questions about your product. The support telephone number is 1-800-242-2121 in the United States. For additional support telephone numbers, see the Avaya Web site: http://www.avaya.com/support...

  • Page 3: Table Of Contents

    Dialog Area ........Avaya G250/G350/G450 Modes ......
  • Page 4 Viewing Media Module Configuration ..... . Avaya Site Administration ......
  • Page 5 Ethernet LAN Port Configuration - General Tab ....Ethernet LAN Port Configuration - Advanced Tab ....Ethernet WAN Port Configuration .
  • Page 6 Updating the Device ........6 Avaya Integrated Management Release 4.0.1 Software Update Manager...
  • Page 7 Chapter 10: Port Mirroring ......177 Port Mirroring Overview ....... . Configuring Port Mirroring .
  • Page 8 Resetting a Router ........Using Avaya G250/G350/G450 Routing Manager Help ....
  • Page 9 Committed Changes ....... . Using Avaya G250/G350/G450 Policy Based Routing Manager Help..
  • Page 10 Action Menu ........10 Avaya Integrated Management Release 4.0.1 Software Update Manager...
  • Page 11 Web Management Overview ......Configuring the Avaya G350/G450 Device ..... .
  • Page 12 Contents 12 Avaya Integrated Management Release 4.0.1 Software Update Manager...

  • Page 13: Preface

    Preface Welcome to Avaya G250/G350/G450 Manager. This chapter provides an introduction to the structure and assumptions of this guide. It includes the following sections: The Purpose of This Guide ● Who Should Use This Guide ● Organization of This Guide ●...
  • Page 14 Port Mirroring - Configuring port mirroring for ports on an Avaya G250/G350/G450 ● device. Port RMON - Viewing graphical representations of the traffic on the ports of the Avaya ● G250/G350/G450 device. Port Redundancy - Configuring port redundancy for ports on an Avaya G350 or ●...
  • Page 15 ● Menus - The full structure of the menus in the Avaya G250/G350/G450 Manager. ● Web Management - Instructions on how to manage Avaya G350 and G450 devices via ● the Internet. ICMP Packet Types and Codes - A list of ICMP Packet Types and Codes as used in IP ●...
  • Page 16 Preface 16 Avaya Integrated Management Release 4.0.1 Software Update Manager...

  • Page 17: Chapter 1: Introduction

    Avaya G250/G350/G450 Manager Overview The Avaya G250/G350/G450 Manager provides full management capabilities for Avaya G450, Avaya G350, and all G250 Devices. This includes the ability to view three aspects of device management: Device Manager - Provides a view of the configuration of the device, including VLAN ●...

  • Page 18: Starting The Avaya G250/G350/G450 Manager

    To start Avaya G350/G450 Web Management: 1. Point your web browser to http://xxx.xxx.xxx.xxx, where xxx.xxx.xxx.xxx is the IP address of the Avaya G350/G450 Device you want to manage. The Enter Network Password dialog box opens. 18 Avaya Integrated Management Release 4.0.1 Software Update Manager...

  • Page 19: The User Interface

    If the required Java plug-in is installed on your computer, the Java Plug-in Security Warning dialog box opens after a few seconds. If the required Java plug-in is not installed, the plug-in is automatically downloaded to your computer. Follow the instructions on the Avaya G350/G450 Welcome page to install the plug-in. The User Interface The Avaya G250/G350/G450 Manager user interface is different for each of its management applications.

  • Page 20: Application Tabs

    Status Line The Status Line shows the communication status between the application and the Avaya G250/ G350/G450 Device. The Status Line displays a status message and an appropriate graphic. The table below shows the possible statuses with their corresponding graphics, and provides an explanation for each status.

  • Page 21: Managing Tables

    Managing Tables The Avaya G250/G350/G450 Manager interface displays the status of each row in a table. The following table shows a list of symbols that can appear at the start of a table row, with their corresponding explanations. Table 2: Table Symbols Symbol To undo all the changes made to a table, click Refresh.
  • Page 22 Introduction 22 Avaya Integrated Management Release 4.0.1 Software Update Manager...

  • Page 23: Chapter 2: Device Manager

    Chapter 2: Device Manager This chapter provides an introduction to the Avaya G250/G350/G450 Device Manager. It includes the following sections: The G250/G350/G450 Device Manager User Interface ● G250/G350/G450 Device Manager user interface, including instructions for selecting elements and using the toolbar buttons.

  • Page 24: Application Toolbar

    The figure below shows the user interface, with its various parts labeled. Figure 2: The Avaya G250/G350/G450 Device Manager User Interface Application Tabs Menu Application Toolbar Tree View To resize the three main areas of the user interface, the Tree View, the Chassis View, and the Dialog Area, use the splitter bars and their arrows.

  • Page 25: Get/Set Toolbar

    Description Starts the Port Mirroring wizard. Displays the Trap Manager Table. Commits configuration changes. Launches Avaya Call Processing on the selected Media Gateway or Voice port. Opens the on-line help. Selects a VLAN. Ports that are not on the selected VLAN appear dark gray in the Chassis View.
  • Page 26 The Apply/Cancel buttons only appear when changes are made to the Note: configuration. You can toggle the display of the Get/Set toolbar. To toggle the display of the Get/Set toolbar, select View > Toolbars > Show Get/Set Toolbar. 26 Avaya Integrated Management Release 4.0.1 Software Update Manager...

  • Page 27: Tree View

    Tree View The Tree View shows a hierarchical representation of the structure of the Avaya G250/G350/ G450 Device. To select ports, modules or media modules, click their icons in the Tree View. When an element is selected in the Tree View, the corresponding element is selected in the Chassis View.
  • Page 28 Figure 6: Avaya G250 - BRI Chassis View Module Expansion Slot Fixed Ports Figure 7: Avaya G250 - DCP Chassis View Module Expansion Slot Fixed Ports 28 Avaya Integrated Management Release 4.0.1 Software Update Manager Port Symbols Power Symbols Channel Group Symbol Media Module Media Channel Module...
  • Page 29 Figure 8: Avaya G250 - DS1 Chassis View Media Module Fixed Ports When viewing selected dialog boxes, the color of the port indicates the status of the port with regard to the application. The port selected to be the base port appears dark blue. The ports selected to be additional ports appear cyan.

  • Page 30: Gbic Ports

    GBIC Ports The Avaya MM314 media modules contain a GBIC (GigaBit Interface Converter) port that houses removable transceiver modules. The Chassis View reflects the management status of this ports. The following table shows the possible appearances of this port in the Chassis View and provides the corresponding management status of the port.

  • Page 31: Dialog Area

    Avaya G350/G450 Manager via Web Management, Port SMON is not available. When in configuration mode, you can view and change the configuration of the Avaya G250/ G350/G450 Device and individual ports. When in Port RMON mode, you can view graphical representations of the traffic on individual ports.

  • Page 32: Refreshing Device Information

    Select View > Port RMON. Refreshing Device Information You can refresh the information in the Avaya G250/G350/G450 Device Manager. To refresh Avaya G250/G350/G450 Device information, select View > Refresh. The Avaya G250/G350/ G450 Device Manager refreshes its device information and updates the display.

  • Page 33: Using Avaya G250/G350/G450 Device Manager Help

    Select Help > Help On. The cursor changes to the shape of an arrow with a question mark. 2. Click on a point of interest in the Avaya G250/G350/G450 Device Manager. The on-line help opens to a topic explaining the feature that was clicked.
  • Page 34 Device Manager 34 Avaya Integrated Management Release 4.0.1 Software Update Manager...

  • Page 35: Chapter 3: Device Configuration

    Select View > Configuration. Viewing Device Configuration The Device Configuration dialog box provides you with high-level configuration information specific to the Avaya G250/G350/G450 Device. This information is divided into the following: Device Configuration - General Tab ● as the device’s name, addresses, contact person, location, type, description, the number of modules in the device, and the management VLAN ID.

  • Page 36: Device Configuration - General Tab

    To view the General tab of the Device Configuration dialog box: Select Configure > Device Information. The Device Configuration dialog box opens to the General tab. Figure 9: Device Configuration Dialog Box - General Tab 36 Avaya Integrated Management Release 4.0.1 Software Update Manager...
  • Page 37 Number Avaya G450 Device). Chassis The configuration symbol of the chassis (read only) (relevant only for Configuration the Avaya G450 Device). Symbol VLAN MAC Address The MAC address of the VLAN interface. WAN1 MAC Address The MAC address of the WAN1 port (relevant only for the Avaya G450 Device).
  • Page 38 Operational Status Fault Messages For more information on the user interface, refer to page 38 Avaya Integrated Management Release 4.0.1 Software Update Manager Description IP address of Primary Management Interface. Subnet mask of Primary Management Interface. Interface configured by the gateway to be the new Primary Management Interface.

  • Page 39: Device Configuration - Advanced Tab

    The Device Configuration Dialog Box - Advanced Tab provides you with network bridging information about the Avaya G250/G350/G450 Device. Note: Avaya G250 Devices do not support the spanning tree protocol, therefore the Note: STP fields do not appear for an Avaya G250 Device.
  • Page 40 LLDP Tx Delay LLDP Re-Init Delay For more information on the user interface, refer to page 40 Avaya Integrated Management Release 4.0.1 Software Update Manager Description Version of Spanning Tree on the device. Possible values are: STP Compatible Standard Spanning-Tree Protocol ●...

  • Page 41: Device Configuration - Fru Tab

    Device Configuration - FRU Tab The Device Configuration Dialog Box - FRU Tab provides you with information about the Field Replaceable Units (FRU) of the Avaya G450 Device. Figure 11: Device Configuration Dialog Box - FRU Tab The following table provides a list of the fields in the FRU tab of the Device Configuration dialog box and their descriptions.
  • Page 42 PSU #2 Operational Status PSU #2 Fault Message Fan Tray Operational Status 42 Avaya Integrated Management Release 4.0.1 Software Update Manager Description The operational status of Power Supply 1. Possible values are: OK - The power supply is operational. ●...
  • Page 43 Table 10: Device Configuration Fields - FRU Tab (continued) Field Fan Tray Fault Message Memory #1 Memory #2 Media Resource #1 Media Resource #2 Media Resource #3 Media Resource #4 Description The fault message reported by the fan tray. Possible values are: None ●...

  • Page 44: Device Configuration - 802.1X Tab

    The Device Configuration Dialog Box - 802.1x tab provides you with support for the general configuration of the 802.1x application. Note: Avaya G450 Devices do not support the 802.1x protocol, therefore the 802.1x tab Note: does not appear for an Avaya G450 Device.

  • Page 45: Viewing Module Configuration

    Possible values are 1-8. The default value is 2. When enabled, allows transmission of port LLDP information (PVID, Port Vlan) in the LLDP packet sent to the Avaya IP phone connected to the port. The device/system maximum number of supplicants.

  • Page 46: Module Configuration - General Tab

    Click the module’s label in the Chassis View. The Module Configuration dialog box opens to the General tab. Figure 13: Module Configuration Dialog Box - General Tab Note: Module Configuration fields may vary somewhat based on the Media Module. Note: 46 Avaya Integrated Management Release 4.0.1 Software Update Manager...
  • Page 47 The following table provides a list of the fields in the Module Configuration dialog box and their descriptions. Table 12: Module Configuration Dialog Box Field Description MM Type Model of Media Module. Support for the different devices is described below: Module Description MM710 1 x voice T1/E1 port MM711 8 x universal analog...

  • Page 48: Viewing Port Configuration

    Get/Set Toolbar - Provides an alternative, quick method to view and change the port’s ● configuration. For more information on the Get/Set Toolbar, refer to page 48 Avaya Integrated Management Release 4.0.1 Software Update Manager Description The operational status of the Media Module. Possible values are: OK - Media Module is operational.

  • Page 49: Port Configuration - General Tab

    Port Configuration - General Tab To view the General tab of the Port Configuration dialog box for a selected port: Click the port symbol in the Chassis View. Click the port’s icon in the Tree View. The Port Configuration dialog box opens to the General tab.
  • Page 50 VLAN tagging, per IEEE 802.1Q VLAN standard. The port will ● transmit frames with a VLAN ID of 1 - 3071 for Avaya G250/ G350 Devices and 1 - 4090 for Avaya G450 Devices. The VLAN number of the port.
  • Page 51 Table 13: Port Configuration Dialog Box - General Tab (continued) Field Description Auto Negotiation The operational state of the Auto-Negotiation protocol between two Status stations. Possible statuses are: Duplex Mode The state of communication of the selected port. Possible values are: Speed Mode The rate of communication of the selected port.

  • Page 52: Port Configuration - Advanced Tab

    General tab. 2. Click the Advanced tab. The Port Configuration Dialog Box - Advanced Tab opens. Note: Avaya G250 Devices do not support the spanning tree protocol, therefore the Note: STP fields do not appear for Avaya G250 Device ports.
  • Page 53 The following table provides a list of the fields in the Port Configuration Dialog Box - Advanced Tab and their descriptions. Table 14: Port Configuration Dialog Box - Advanced Tab Field Description Port STP Mode Configured status of Spanning Tree. Possible values are: Port STP State Spanning Tree state on the port.

  • Page 54: Port Configuration - 802.1X Tab

    The port can be configured to automatically reauthenticate the user. If the reauthentication fails, the user is denied further access to the port. For more information, refer to General Tab” on page 54 Avaya Integrated Management Release 4.0.1 Software Update Manager Description The administratively assigned value for the contribution of this port to the path cost of paths towards the spanning tree root.
  • Page 55 The 802.1X tab of the Port Configuration dialog box provides you with detailed 802.1X authentication information about the selected port. Note: Avaya G450 Devices do not support the 802.1x protocol, therefore the 802.1x tab Note: does not appear for an Avaya G450 Device.
  • Page 56 EAP State Backend Auth State Controlled Port Status Controlled Port Control IEEE-802.1X Port Mode Initialize 56 Avaya Integrated Management Release 4.0.1 Software Update Manager Description Entry Access Protocol authentication status. Possible values are: Initialize ● Disconnected ● Connecting ● Authenticating ●...
  • Page 57 Table 15: Port Configuration Dialog Box - 802.1X Tab Parameters (continued) Field Description Reauthenticate Forces reauthentication of the port. Checking the Reauthenticate checkbox and clicking Apply forces the port to be reauthenticated immediately. This checkbox is only active when IEEE-802.1x mode is enabled.

  • Page 58: Port Configuration - Lldp Tab

    LLDP also allows Ethernet network devices to search for, and request information from, other devices using the LLDP protocol. The following details can be advertised using LLDP on the Avaya G250/G350/G450 Device: System Name ● Chassis ID ●...
  • Page 59 Figure 17: Port Configuration Dialog Box - LLDP Tab The following table provides a list of the fields in the LLDP tab of the Port Configuration dialog box and their descriptions: Table 16: Port Configuration Dialog Box - LLDP Tab Parameters Field Description LLDP Admin Status...

  • Page 60: Configuring The External Modem

    Modem tab for each port is distinct. Note: To configure a dial-up modem, refer to Note: 60 Avaya Integrated Management Release 4.0.1 Software Update Manager Description The device’s management address. When checked, this TLV is advertised. The received Chassis ID TLV.
  • Page 61 To view the L2 Device Manager for the Console port: In the Chassis View, click the Console icon. In the Tree View, click the Console icon. The L2 Device Manager for the Console port opens. Figure 18: L2 Device Manager - Console Port The following table provides a list of the fields in the L2 Device Manager for the Console port.
  • Page 62 In the Tree View, click a USB icon. The L2 Device Manager for the USB port opens. Figure 19: G250/G350 L2 Device Manager Dialog Box - USB Port 62 Avaya Integrated Management Release 4.0.1 Software Update Manager Description The connection speed of the modem.
  • Page 63 Figure 20: G450 L2 Device Manager Dialog Box - USB Port Note: The Avaya G450 Media Gateway has two USB ports. However, the Avaya G450 Note: Manager cannot identify on which of the ports a modem is connected. Therefore, when you click either of the ports, you can configure a modem connected to either of the ports.

  • Page 64: Configuring The Dialer

    The following table provides a list of the fields in the Dialer Configuration dialog box. Table 19: Dialer Configuration Parameters Field Dialer Modem Port 64 Avaya Integrated Management Release 4.0.1 Software Update Manager Description The port through which the dialer operates. Possible values include: Console ●...
  • Page 65 Table 19: Dialer Configuration Parameters (continued) Field Description Dialer Admin Status The admin status of the dialer. Possible values include: Persistent Delay The number of seconds the dialer waits, after an error disrupts the system, before attempting the reestablish a connection. The default value is 0.

  • Page 66: Resetting The Device

    Dialer Status Last Dialed String Resetting the Device You can reset the entire Avaya G250/G350/G450 Device, or one or more of its individual modules. To reset the entire Avaya G250/G350/G450 Device: 1. Select Action > Reset Device. A confirmation dialog box opens.

  • Page 67: Chapter 4: Power Over Ethernet

    The Avaya G250/G350 Device automatically discovers the connection and removal of IP telephones from the in-line powered ports and provides power accordingly. The Avaya G250/G350 Device provides power using an internal power supply over a 48 volt feed. In addition, you can configure power priorities per port ensuring that important equipment is guaranteed power whenever necessary.

  • Page 68: Viewing Poe Port Information

    To view the PoE configuration on a module that supports PoE, select the Power tab in the module’s configuration dialog box. For information on opening the Module Configuration dialog box, refer to “Viewing Module Configuration” on page Figure 22: Module Configuration - Power Tab 68 Avaya Integrated Management Release 4.0.1 Software Update Manager icon.

  • Page 69: Poe Port Configuration

    The following table provides a list of the fields in the Power tab of the Module Configuration dialog box and their descriptions: Table 20: Module Configuration - Power Fields Field Total PoE Available Total PoE Drawn PoE Usage Threshold PoE Notifications PoE Port Configuration To view the PoE configuration on a port that supports PoE, select the Power tab in the port’s configuration dialog box.
  • Page 70 Detection Status Power Priority Power Consumption (mW) 70 Avaya Integrated Management Release 4.0.1 Software Update Manager Description The administrative state of the port in terms of power management. Possible states include: Enable - This port can supply power to IP telephones.

  • Page 71: Chapter 5: Media Gateway Functions

    The MGP detects when a media module is inserted or removed and transfers information from the VoIP engine to the other components. The Avaya G250/G350/G450’s Media Gateway converges the power of Avaya Call Processing (ACP) software with the power of distributed switching from the Avaya G250/G350/G450 Device.

  • Page 72: Viewing Media Gateway Configuration

    2. Select the MG Config tab. The MG Config dialog box opens. MG Config The MG Config tab provides information about the Media Gateway QoS parameters. Figure 24: MG Config Tab 72 Avaya Integrated Management Release 4.0.1 Software Update Manager...
  • Page 73 The following table lists the fields in the MG Config tab of the Module Configuration dialog box and their descriptions. Table 22: MG Config Parameters Field Description QOS Control The source of QoS control. This parameter can only be changed via the CLI.

  • Page 74: Mgc Config

    Registered status H248 Link status Configurable MGC list 74 Avaya Integrated Management Release 4.0.1 Software Update Manager Description The IP address of the call controller serving the media gateway. Shows whether this media gateway is currently registered with any call controller.

  • Page 75: Viewing Media Module Configuration

    Viewing Media Module Configuration The Media Module Configuration dialog box enables you to view the hardware and firmware information for a specific Media Module, and its operational status. To view configuration for a selected Media Module: In Configuration Mode, click the Media Module symbol in the Tree View. Click the Media Module’s label in the Chassis View.

  • Page 76: Avaya Site Administration

    Fault Messages Avaya Site Administration Avaya Site Administration (ASA) is an administration tool for Avaya Call Processing call control software. ASA is used to configure the current MGC or an individual voice port. To launch ASA on an MGC or voice port: 1.

  • Page 77: Chapter 6: Voip Engine Configuration

    Chapter 6: VoIP Engine Configuration This chapter provides information and instructions for viewing and configuring the VoIP Engine features. It includes the following sections: VoIP Overview ● VoIP Resources ● VoIP Status - Instructions for determining operational status of the VoIP Engine. ●...

  • Page 78: Voip Resources

    Table 25: VoIP resources - General Parameters Field RTP Port min RTP Port max 78 Avaya Integrated Management Release 4.0.1 Software Update Manager Description The minimum range of UDP ports assigned by the call controller for RTP traffic. The value ranges between 1 - 65534.
  • Page 79 Table 25: VoIP resources - General Parameters (continued) Field Description QOS Control The source of QoS control. This parameter can only be changed via the CLI. Possible values are: ● ● QoS can be controlled either locally or remotely. If control is local, it is possible to configure QoS, RTCP, and RSVP parameters.
  • Page 80 Table 28: VoIP resources - RSVP Parameters Field RSVP Enabled Retry on failure Retry Delay Service profile 80 Avaya Integrated Management Release 4.0.1 Software Update Manager Description The status of RTCP monitoring. Checked - RTCP monitoring is enabled. ● Unchecked - RTCP monitoring is disabled.

  • Page 81: Voip Status

    VoIP Status The VoIP status tab provides information about a specific engine’s operational status, jitter buffer size, and number of sessions open. For Avaya G450 Devices, the VoIP status tab also provides the VoIP DSP Core Status table. This table displays information about the VoIP DSP Cores in the DSP media resource cards for the VoIP engine selected in the VoIP Status table.
  • Page 82 Channels in Use Total Voice Channels Jitter Buffer size 82 Avaya Integrated Management Release 4.0.1 Software Update Manager Description The slot in which the VoIP engine resides. The socket number of the VoIP engine (relevant only for the Avaya G450 Device).
  • Page 83 Table 29: VoIP Status Parameters (continued) Field Description VoIP State The administrative state of the DSP core (read only). Possible values are: Operational Status The operational status of the VoIP engine. The following table lists the fields in the VoIP DSP Core Status table and their descriptions. Table 30: VoIP DSP Cores Status Parameters Field Description...
  • Page 84 VoIP Engine Configuration 84 Avaya Integrated Management Release 4.0.1 Software Update Manager...

  • Page 85: Chapter 7: Wan Configuration

    Chapter 7: WAN Configuration This chapter provides information about configuring Avaya WAN Modules and includes the following sections: WAN Overview ● WAN Module Configuration ● Avaya G250/G350/G450 Devices. E1/T1 Port Configuration ● Modules. Ethernet LAN Port Configuration ● Ethernet LAN ports on Avaya G250/G350/G450 Devices.

  • Page 86: Wan Module Configuration

    To save the changes to the WAN module configuration to the startup configuration, click Note: WAN Modules MM340 and MM342 can be installed in the Avaya G450 in Note: slots 3,4, and 8 and in any slot in the Avaya G250/G350.

  • Page 87: E1/T1 Port Configuration

    E1/T1 Port Configuration In addition to the Ethernet ports found on an Avaya G250/G350/G450 Device, the WAN module may have E1/T1 ports. This section provides information on viewing and configuring E1/T1 port parameters. To display the E1/T1 Port Configuration dialog box: Click the E1/T1 port’s symbol in the Chassis View or the Tree View.
  • Page 88 Operational Status Framing Linecode 88 Avaya Integrated Management Release 4.0.1 Software Update Manager Description A user-created text string describing the E1/T1 port. This field is optional. The type of E1/T1 port. Possible values are: E1 - For E1 and ISDN lines with 32 available channels.
  • Page 89 Table 31: E1/T1 Port Configuration Parameters (continued) Field Description The recommended maximum cable length. Cablelength only) (T1 only) The gain on this interface. Gain represents the level of signal boost Gain required to transmit across the circuit at the maximum cable length. Clock Source The source of the Transmit Clock.

  • Page 90: Ethernet Lan Port Configuration

    This section provides information on viewing and configuring parameters for the built-in Ethernet LAN port of the Avaya G250/G350 Device (the Avaya G450 Device has two LAN ports). The Ethernet LAN port can be used to connect to the campus switched backbone network or to an end-user device.
  • Page 91 VLAN. Otherwise, it discards the packet. IEEE-802.1Q - VLAN tagging, per IEEE 802.1Q VLAN standard. The port will transmit frames with a VLAN ID of 1 - 3071 for Avaya G250/G350 Devices and 1 - 4090 for Avaya G450 Devices. 1 of 2...
  • Page 92 Speed Mode Flow Control Mode Operational Status Fault Messages 92 Avaya Integrated Management Release 4.0.1 Software Update Manager Description The configured state of the Auto-Negotiation protocol between two stations. When enabled, Auto-Negotiation detects the highest common denominator for communication between endstations, and sets both to the same highest common setting.

  • Page 93: Ethernet Lan Port Configuration - Advanced Tab

    The Advanced tab of the Ethernet LAN configuration dialog box enables you to define port classification for the built-in Ethernet LAN port(s) on the Avaya G250/G350/G450 Device. Port classification is used to identify the port as being connected to normal- or higher-priority users and devices.

  • Page 94: Ethernet Wan Port Configuration

    This section provides information on viewing and configuring parameters for the built-in Ethernet WAN port of the Avaya G250/G350/G450 Device (the Avaya G450 Device has two WAN ports). Ethernet WAN ports are generally used to connect to an enterprise WAN or receive an Ethernet handoff from an Internet Service Provider.

  • Page 95: Ethernet Wan Port Configuration - General Tab

    Ethernet WAN Port Configuration - General Tab The General tab of the Ethernet WAN Configuration dialog box enables you to set general functional parameters for the built-in Ethernet WAN port. These parameters define how the port interfaces with the network in terms of speed, duplex, and Voice over IP (VoIP) queuing. Figure 34: Ethernet WAN Port Configuration Dialog Box - General Tab The following table lists the fields in the Ethernet WAN Port Configuration - General tab and their descriptions:...
  • Page 96 MAC Address Operational Status Auto Negotiation Mode Duplex Mode Speed Mode 96 Avaya Integrated Management Release 4.0.1 Software Update Manager Description The administrative state of the selected port: Enable - The port is enabled and can transmit and receive ● packets.
  • Page 97 Table 35: Ethernet WAN Port Configuration - General Tab (continued) Field Description Encapsulation The WAN encapsulation method of the selected port. Possible values are: ● ● Note: Traffic Shaper Rate Reserved bandwidth for VoIP traffic. (bps) Possible values are: ● ●...

  • Page 98: Ethernet Wan Port Configuration - Pppoe Client Tab

    Table 36: Ethernet WAN Port Configuration - PPPoE Client Tab Field Description Encapsulation The encapsulation method used for the PPPoE connection. Possible values are: 98 Avaya Integrated Management Release 4.0.1 Software Update Manager ● ● 1 of 2...
  • Page 99 KeepAlive Down - The interface is down due to not having received a ● KeepAlive packet in the configured interval. For more information, refer to Administration for the Avaya G250, Avaya G350, and Avaya G450 Media Gateways. ● Negotiated IP Enable/Disable PPP-IPCP IP address negotiation.

  • Page 100: Ethernet Wan Port Configuration - Dhcp Client Tab

    Table 37: Ethernet WAN Port Configuration - DHCP Client Tab Field Mode IP Address 100 Avaya Integrated Management Release 4.0.1 Software Update Manager Description The row status for creating a new DHCP client on the VLAN or WAN fast ethernet connection. Possible values include: Enable ●...
  • Page 101 Table 37: Ethernet WAN Port Configuration - DHCP Client Tab (continued) Field Description Subnet Mask The subnet mask allocated for the DHCP client. The value of the mask is an IP address with all of its network bits set to 1 and all of its host bits set to 0.
  • Page 102 Ethernet WAN Port Configuration - PPPoE Client Tab. Note: All fields in the Ethernet WAN Port Configuration - PPPoE Client tab are Note: read-only. 102 Avaya Integrated Management Release 4.0.1 Software Update Manager Description Indicates the state of the DHCP client. Possible states include: Select ●...

  • Page 103: Ethernet Wan Port Configuration - Extended Keep Alive Tab

    The Extended Keep Alive tab of the Ethernet WAN Port Configuration dialog box enables you to set parameters for the Extended Keep Alive functionality of the Avaya G250/G350/G450 Device. Extended Keep Alive allows you to precisely tune network keep alive traffic to gain an accurate representation of your network’s connection status.
  • Page 104 Timeout Keep Alive ICMP Interval Keep Alive ICMP Status 104 Avaya Integrated Management Release 4.0.1 Software Update Manager Description The type of keepalive method used. Possible values are: icmpPing - ICMP Ping packets are exchanged by the devices ● at the endpoints of the connection to verify connectivity.

  • Page 105: Viewing Channel Group Information

    Viewing Channel Group Information The Channel Group dialog box contains information specific to a selected Channel Group. The tabs that appear in the Channel Group dialog box are dependant on the encapsulation method of the selected Channel Group. To view the Channel Group dialog box for a specific Channel Group: 1.
  • Page 106 Table 39: Channel Group Dialog Box - Channel Group Parameters Field Description Port Type Port Functionality Encapsulation 106 Avaya Integrated Management Release 4.0.1 Software Update Manager Description A description of the PPP session. The port type. The framing mode of the port. Possible modes are: ds0 bundle ●...

  • Page 107: Advanced

    Table 39: Channel Group Dialog Box - Channel Group Parameters (continued) Field Idle Characters Bandwidth Administrative Status VoIP Queue Operational Status Advanced The Advanced tab of the Channel Groups dialog box provides information about the channels that comprise the selected Channel Group and the Channel Group’s speed factor. To view the Advanced tab of the Channel Group dialog box: 1.

  • Page 108: Ppp

    1. Click a Channel Group icon in the Chassis View. A list of Channel Groups on the port appears. 2. Click the Channel Group you want to configure. The Channel Group dialog box opens with the Channel Group tab. 108 Avaya Integrated Management Release 4.0.1 Software Update Manager...
  • Page 109 3. Click PPP. The PPP tab of the Channel Group dialog box appears. Figure 40: Channel Group Dialog Box - PPP Tab The following table provides a list of the fields in the PPP tab of the Channel Group dialog box and their descriptions: Table 40: Channel Group Dialog Box - PPP Parameters Field...

  • Page 110: Channel Group - Frame Relay Information

    “Advanced” on page Frame Relay - Information about frame relay on the Channel Group. ● 110 Avaya Integrated Management Release 4.0.1 Software Update Manager Description The operational status of the PPP interface. Possible statuses include: Up - The interface is up and can transmit and receive packets.

  • Page 111: Frame Relay

    Sub-Interfaces - Information about the Channel Group’s sub-frame relays. ● DLCIs - DLCI information for the Channel Group. ● Frame Relay The Frame Relay tab of the Channel Group dialog box provides information about the frame relay configuration of the Channel Group. To view the Frame Relay tab of the Channel Group dialog box: 1.
  • Page 112 Field LMI Type LMI Auto Sense Operational Status MTU (octets) 112 Avaya Integrated Management Release 4.0.1 Software Update Manager Description Local Management Interface Type. The Data Link Connection Management scheme used by the frame relay interface. Possible values are: ANSI ●...

  • Page 113: Sub-Interfaces

    Table 41: Channel Group Dialog Box - Frame Relay Parameters (continued) Field Last Fault Message Time Since Fault Backup Interface Sub-Interfaces The Sub-Interfaces tab of the Channel Group dialog box provides information about the configuration of Frame Relay sub-interfaces in the Channel Group. To view the Sub-Interfaces tab of the Channel Group dialog box: 1.
  • Page 114 Frame Relay sub-interface appear in the bottom of the dialog box. 2. Modify the parameters you want to change using the fields at the bottom of the dialog box. 3. Click Apply. The Frame Relay sub-interface parameters are modified. 114 Avaya Integrated Management Release 4.0.1 Software Update Manager...
  • Page 115 To delete a Frame Relay sub-interface: 1. Click the Frame Relay sub-interface you want to delete. Note: You can only delete Frame Relay sub-interfaces on which no IP interfaces are Note: defined. 2. Click Delete. 3. Click Apply. The Frame Relay sub-interface is deleted. The following table provides a list of the fields in the Frame Relay sub-interfaces tab of the Channel Group dialog box and their descriptions.

  • Page 116: Dlcis

    2. Click the Channel Group you want to configure. The Channel Group dialog box opens with the Channel Group tab. 3. Click DLCIs. The DLCIs tab of the Channel Group dialog box opens. 116 Avaya Integrated Management Release 4.0.1 Software Update Manager Description The interface’s backup status. Possible statuses include: Backup By - Interface x - The selected interface is backed ●...
  • Page 117 Figure 43: Channel Group Dialog Box - DLCIs Tab The DLCIs tab of the Channel Group dialog box provides a list of available DLCIs in the upper section of the dialog box. These DLCIs are learned via LMI. To view configuration information for a specific DLCI, click the DLCI in the list.
  • Page 118 DLCIs configured for a Channel Group, the first DLCI may be configured with Primary and High priority, the second with Medium and Normal, and the third with Low. 118 Avaya Integrated Management Release 4.0.1 Software Update Manager Description The DLCI for the circuit.

  • Page 119: Managing Channel Groups

    Managing Channel Groups The Channel Groups dialog box provides information about existing channel groups and enables you to modify and delete channel groups. In addition, you can start the Channel Group Wizard to create and edit channel groups. Viewing the Channel Groups Table The Channel Groups table enables you to view previously created channel groups and launch the Channel Group Wizard to create a new Channel Group or modify an existing Channel Group.

  • Page 120: Creating, Editing, And Deleting Channel Groups

    2. Click Wizard. The Channel Group Wizard starts. The screens in the Channel Group Wizard display the parameters for the selected channel group. 120 Avaya Integrated Management Release 4.0.1 Software Update Manager Description The module on which the Channel Group resides.

  • Page 121: The Channel Group Wizard

    To delete a channel group: 1. In the Channel Groups Table, select the channel group which you want to delete. 2. Click Delete. A confirmation box opens. 3. Click Yes. The channel group is deleted. The Channel Group Wizard This section provides detailed information on each of the Channel Group Wizard’s screens. To continue to the next screen, click Next.

  • Page 122: Welcome Screen

    The Channel Group Wizard provides a simple, step-by-step method for creating or editing a Channel Group. Figure 45: Channel Group Wizard - Welcome Screen To continue, click Next. The Channel Group Wizard continues with the Select Name and Encapsulation Screen. 122 Avaya Integrated Management Release 4.0.1 Software Update Manager...

  • Page 123: Select Name And Encapsulation Screen

    Select Name and Encapsulation Screen The Select Name and Encapsulation screen enables you to assign a name to the Channel Group and configure the encapsulation method. Figure 46: Channel Group Wizard - Select Name and Encapsulation Screen Enter a name for the Channel Group in the Channel Group Name field. Select an encapsulation method for the Channel Group from the pull-down listbox.

  • Page 124: Select E1/T1 Port Screen

    To select an E1/T1 port for the channel group, click an E1/T1 port in the Chassis View. The port designation appears in the Selected Port field. To continue, click Next. The Channel Group Wizard continues with the Select Channels and Speed Screen. 124 Avaya Integrated Management Release 4.0.1 Software Update Manager...

  • Page 125: Select Channels And Speed Screen

    Managing Channel Groups Select Channels and Speed Screen The Select Channels and Speed screen enables you to select channels for the new Channel Group. Figure 48: Channel Group Wizard - Select Channels and Speed Screen To select channels, check the checkboxes next to the channels you want included in the channel group.

  • Page 126: Confirmation Screen

    To create the Channel Group or apply the changes to the Channel Group’s configuration, click Finish. The Channel Group information is uploaded to the device, and the Channel Group table is refreshed. 126 Avaya Integrated Management Release 4.0.1 Software Update Manager...

  • Page 127: Usp Configuration

    USP Configuration The USP (Universal Serial Port) is a physical interface designed to support multiple types of connections with the same hardware. The Avaya G250/G350/G450 Device supports Media Modules containing USPs. This section provides information on viewing and configuring USP parameters.
  • Page 128 Table 45: USP Dialog Box - Serial Port Parameters Field Description Port Type Port Functionality Encapsulation 128 Avaya Integrated Management Release 4.0.1 Software Update Manager Description The USP port description. The type of port - Universal Serial Port. The functionality of the port. Possible values include: V.35 DTE ●...

  • Page 129: Advanced

    Table 45: USP Dialog Box - Serial Port Parameters (continued) Field Idle characters Bandwidth (kb/s) Administrative Status VoIP Queue Operational Status Advanced The Advanced tab of the USP Configuration dialog box provides advanced information about the USP configuration. To display the Advanced tab of the USP Configuration dialog box: 1.
  • Page 130 The following table lists the fields in the Advanced tab of the USP Configuration dialog box and their descriptions: Table 46: USP Configuration - Advanced Parameters Field Linecode 130 Avaya Integrated Management Release 4.0.1 Software Update Manager Description The type of linecode. Possible values are: ● NRZI ●...
  • Page 131 Table 46: USP Configuration - Advanced Parameters (continued) Field Description The port’s Data Terminal Ready status. Possible values are: The port’s Ready To Send status. Possible values are: The port’s Clear To Send status. Possible values are: Invert Tx Clock The state of the Tx clock.

  • Page 132: Ppp

    1. Click the USP symbol in the Chassis View or the Tree View. The USP Configuration dialog box opens displaying the Serial Port tab. 2. Click PPP tab. The PPP tab of the USP Configuration dialog box opens. Figure 52: USP Configuration Dialog Box - PPP Tab 132 Avaya Integrated Management Release 4.0.1 Software Update Manager...

  • Page 133: Usp - Frame Relay Interface

    The following table lists the configuration fields in the PPP tab of the USP Configuration dialog box and their descriptions: Table 47: USP Configuration - PPP Parameters Field Peer Address Keepalive Operational Status IPCP Status Backup Interface USP - Frame Relay Interface For USPs configured with a frame relay interface, the USP dialog box contains five tabs: Serial Port - Basic information abut the USP.

  • Page 134: Frame Relay

    2. Click Frame Relay. The Frame Relay tab of the USP dialog box opens. Figure 53: USP Dialog Box - Frame Relay Tab 134 Avaya Integrated Management Release 4.0.1 Software Update Manager - Information about the Channel Group’s sub-frame relays.
  • Page 135 The following table provides a list of the fields in the Frame Relay tab of the USP dialog box and their descriptions: Table 48: USP Dialog Box - Frame Relay Parameters Field Description LMI Type Local Management Interface Type. The Data Link Connection Management scheme used by the frame relay interface.

  • Page 136: Sub-Frame-Relays

    1. Click a USP symbol in the Chassis View or Tree View. The USP dialog box opens with the Serial Port tab. 2. Click Sub-Interfaces. The Sub-Interfaces tab of the USP dialog box opens. 136 Avaya Integrated Management Release 4.0.1 Software Update Manager Description The type of error last occurring on the interface. Possible values are: Unknown Error ●...
  • Page 137 Figure 54: USP Dialog Box - Sub-Interfaces Tab The Sub-Interfaces tab of the USP dialog box provides a list of Frame Relay sub-interfaces in the upper section of the dialog box. To view configuration information for a specific Frame Relay sub-interface, click the sub-interface in the list.
  • Page 138 Description Type Bandwidth (kb/s) Admin Status 138 Avaya Integrated Management Release 4.0.1 Software Update Manager Description The name of the Frame Relay sub-interface. A user defined description of the Frame Relay sub-interface. The provisioning of the Frame Relay sub-interface. Possible values...

  • Page 139: Dlcis

    Table 49: USP Dialog Box - Sub-Interfaces Parameters (continued) Field Operational Status DLCIs Backup Interface DLCIs The DLCIs tab of the USP dialog box provides information about the DLCIs in the USP. To view the DLCIs tab of the USP dialog box: 1.
  • Page 140 2. Modify the parameters you want to change using the fields at the bottom of the dialog box. 3. Click Apply. The DLCI parameters are modified. 140 Avaya Integrated Management Release 4.0.1 Software Update Manager...
  • Page 141 To delete a DLCI: 1. Click the DLCI you want to delete. 2. Click Delete. A confirmation dialog box opens. 3. Click Yes. 4. Click Apply. The DLCI is deleted. The following table provides a list of the fields in the DLCIs tab of the USP dialog box and their descriptions: Table 50: USP Dialog Box - DLCIs Parameters Field...

  • Page 142: Configuring The Etr Port

    To view the ETR Interface table: Select Configure > WAN > ETR Interface. The ETR Interface form opens. Figure 56: ETR Interface - G250/G350 Figure 57: ETR Interface - G450 142 Avaya Integrated Management Release 4.0.1 Software Update Manager...

  • Page 143: The Services Interface

    The Services Interface The Services port cannot be configured through the Avaya G250/G350/G450 Device Manager. The Services port allows an Out Of Band management interface to the Avaya G450 Device. The following table displays the fixed values of the Services port.

  • Page 144: Configuring Backup Interfaces

    Select Configure > WAN > Backup Interfaces. The BackUp Interfaces table opens. Figure 58: Backup Interfaces Table The Backup Interfaces table provides information about the Backup interfaces configured on the device. 144 Avaya Integrated Management Release 4.0.1 Software Update Manager...

  • Page 145: The Backup Interface Wizard

    To configure a new Backup interface, click Wizard. The Backup Interface Wizard opens. For information on the Backup Interface Wizard, refer to page 145. To delete a Backup interface: 1. Select the interface in the table. 2. Click Delete. The interface is marked as deleted in the Backup Interfaces table with the icon in the leftmost column.

  • Page 146: Welcome Screen

    The Backup Interface Wizard provides a simple, step-by-step method for creating or editing a Backup interface. Figure 59: Backup Interface Wizard - Welcome Screen To continue, click Next. The Backup Interface Wizard continues with the “Primary Interface Screen” on page 147. 146 Avaya Integrated Management Release 4.0.1 Software Update Manager...

  • Page 147: Primary Interface Screen

    Configuring Backup Interfaces Primary Interface Screen The Select Primary Interface screen enables you to select the interface to be backed up. Figure 60: Backup Interface Wizard - Select Primary Interface Screen To select an interface to back up, select an interface name from the Primary Interface pull-down listbox.

  • Page 148: Backup Interface Screen

    To select a Backup interface, select an interface name from the Backup Interface pull-down listbox. To continue, click Next. The Backup Interface Wizard continues with the “Backup Interface Parameters Screen” on page 149. 148 Avaya Integrated Management Release 4.0.1 Software Update Manager...

  • Page 149: Backup Interface Parameters Screen

    Configuring Backup Interfaces Backup Interface Parameters Screen The Backup Interface Parameters screen enables you to configure the conditions under which the Backup interface is activated and deactivated. Figure 62: Backup Interface Wizard - Backup Interface Parameters Screen To configure the number of seconds between the failure of the primary interface and the activation of the Backup interface, enter a number in the Enable Delay field.

  • Page 150: Confirmation Screen

    To create the Backup interface or apply the changes to the Backup interface’s configuration, click Finish. The Backup interface information is uploaded to the device, and the Backup Interfaces table is refreshed. 150 Avaya Integrated Management Release 4.0.1 Software Update Manager...

  • Page 151: Dynamic Cac

    Dynamic CAC The Dynamic CAC dialog box enables you to configure the Dynamic CAC function on a WAN interface. Dynamic CAC allows the Avaya G250/G350/G450 Device to control traffic flow between itself and a remotely located call controller. To configure Dynamic CAC on a WAN interface: 1.
  • Page 152 Last Update (sec) Interface CAC BBL (kbps) CAC Priority Status 152 Avaya Integrated Management Release 4.0.1 Software Update Manager Description The status of Dynamic CAC on the WAN interface. Possible values are: Active - Dynamic CAC is active on the WAN interface.

  • Page 153: Chapter 8: Embedded Tools

    DHCP server provides the remote station with parameters such as IP address, subnet mask, default gateway, and Domain Name Server (DNS) information. The Avaya G250/G350/G450 Device can act as a DHCP server both for devices physically connected to the Avaya G250/G350/G450 Device and for other devices on the same network.

  • Page 154: Configuring Basic Dhcp Options

    The following table provides a list of the fields in the DHCP Server Configuration - General Tab and their descriptions: Table 55: DHCP Server Configuration - General Tab Fields Field Mode Ping Detection 154 Avaya Integrated Management Release 4.0.1 Software Update Manager Description Administrative status of the DHCP service. Possible values are: Enable ● Disable ●...

  • Page 155: Creating A New Dhcp Pool

    Table 55: DHCP Server Configuration - General Tab Fields (continued) Field Timeout (ms) To refresh the tree view, click Refresh. To apply changes to DHCP general configuration, click Apply. To create a new pool, click New Pool. The DHCP Server Configuration dialog box - New Pool tab opens.

  • Page 156: Configuring Dhcp Pool Parameters

    To open the DHCP Server Configuration - Pool Config Tab: Click a specific pool in the All DHCP Pools tree. Figure 67: DHCP Server Configuration - Pool Config Tab 156 Avaya Integrated Management Release 4.0.1 Software Update Manager Description Name of the new pool to be created.

  • Page 157: Configuring Dhcp Assignment Parameters

    The following table provides a list of the fields in the DHCP Server Configuration - Pool Configuration Tab and their descriptions: Table 57: DHCP Server Configuration - Pool Config Tab Fields Field Name Mode Start IP Address End IP Address Lease (Seconds) Client Identifier Bootfile...
  • Page 158 Table 58: DHCP Server Configuration - General DHCP Options Config Tab Fields Field Code 158 Avaya Integrated Management Release 4.0.1 Software Update Manager Description The system definition of the DHCP option. Possible values are: Subnet Mask - The subnet mask to be assigned to the ●...
  • Page 159 Table 58: DHCP Server Configuration - General DHCP Options Config Tab Fields Field Description Name The name of the DHCP option. Possible values are: Type The format of the DHCP option. Possible values are: Value The value of the DHCP option, presented according to the Type field. Note: To add a new DHCP configuration option, click Add Option.

  • Page 160: Configuring The Tftp Server

    To configure the TFTP server: Select Servers > TFTP Server from the Configure Menu. The TFTP Server dialog box opens. Figure 69: TFTP Server Configuration Dialog Box 160 Avaya Integrated Management Release 4.0.1 Software Update Manager...

  • Page 161: Configuring The Converged Network Analyzer Application

    QoS tests with synthetic RTP streams. Test plugs are entities within the CNA system that receive instructions from a Scheduler for running tests, perform the tests, and send back the results. The following options are available for configuring Converged Network Analyzer on the Avaya G250/G350/G450 Device: Configuring an External Test Plug ●...

  • Page 162: Configuring An External Test Plug

    The following table provides a list of the fields in the CNA Configuration - Test Plug Tab and their descriptions: Table 60: CNA Configuration - Test Plug Parameters Field Global Administrative State 162 Avaya Integrated Management Release 4.0.1 Software Update Manager Description Administrative status of the CNA application. Possible values are: Enable ● Disable ●...
  • Page 163 Table 60: CNA Configuration - Test Plug Parameters (continued) Field Description Test Plug 1 Administrative status of the test plug. Possible values are: Administrative State Test Plug 1 Status The status of the Test Plug operation. Possible values include: Enable ●...

  • Page 164: Configuring Schedulers

    Indicates whether the scheduler is active or inactive. Possible values include: ● ● Note: Mode cannot be set to Active for a scheduler if Address is set to 0.0.0.0. Note: 164 Avaya Integrated Management Release 4.0.1 Software Update Manager Active Not In Service...

  • Page 165: Chapter 9: Vlans

    Chapter 9: VLANs This chapter provides the information and instructions you need to use VLANs. It includes the following sections: VLAN Configuration Overview ● Configuring VLANs ● a description of the VLAN Configuration dialog box. Managing VLANs ● Viewing Port VLAN Settings ●...

  • Page 166: Master Vlan List

    VLANs and their names. This list is only available when running Avaya Network Manager. It is not available when running an Embedded Web Manager. To manage the master VLAN list, use Avaya VLAN Manager. For information on Avaya VLAN Manager, refer to the Avaya VLAN Manager User Guide.

  • Page 167: Configuring Vlans

    Configuring VLANs To view VLAN names, numbers, and component switch ports: Click Select Configure > VLANs. The VLAN Configuration dialog box opens. Figure 72: VLAN Configuration Dialog Box Selection The VLAN Configuration dialog box consists of the following components: VLAN Tree ●...

  • Page 168: Vlan Tree

    Chassis View with a blue triangle on the port symbol. In addition, information about the member ports and statically bound ports appear in the Selection List. For more information about the Selection List, refer to 168 Avaya Integrated Management Release 4.0.1 Software Update Manager “Synchronizing VLAN Names” on page “Selection List” on page 169.

  • Page 169: Selection List

    Selection List The Selection List contains a table with VLAN information about the current selection. For example, if you select a module in the Tree View or Chassis View, a list of the ports in the module with their VLAN information appears in the Selection List. If the Port Configuration Area is open, click Selection List.

  • Page 170: Port Configuration Area

    Field PVID Tagging Mode 170 Avaya Integrated Management Release 4.0.1 Software Update Manager Description The Port VLAN ID (PVID) of the port. This is the VLAN of which the port is a member. THE PVID pull-down list contains all VLANS known to the network and VLANs on the device.

  • Page 171: Managing Vlans

    Table 63: Port Configuration Area Parameters (continued) Field Binding Style Static Binding VLANs Managing VLANs You can create, rename, synchronize, and delete VLANs. Creating VLANs ● Renaming VLANs ● Synchronizing VLAN Names ● Deleting VLANs ● Description The binding style configured on the port. The binding style defines which packets can be forwarded by the port.

  • Page 172: Creating Vlans

    The range of valid VLAN numbers is 1 - 3071 (up to 8 VLANs in total) for Note: Avaya G250/G350 Devices and 1 - 4090 (up to 64 VLANs in total) for Avaya G450 Devices. 3. Enter a name for the VLAN in the VLAN Name field.

  • Page 173: Synchronizing Vlan Names

    Figure 76: Rename VLAN Dialog Box 3. Edit the VLAN’s name in the VLAN Name field. 4. Click OK. The VLAN is renamed. Synchronizing VLAN Names VLANs with the same VLAN number can be defined with different names on different devices in the network.

  • Page 174: Deleting Vlans

    VLAN list. Deleting VLANs You can delete VLANs from the Avaya G250/G350/G450 Device. Globally known VLANs can be deleted from the device, but not from the master VLAN list. If you delete a VLAN that is on the master VLAN list and on the device, the VLAN remains in the VLAN Tree with a green tag.

  • Page 175: Managing Port Vlan Settings

    Managing Port VLAN Settings You can view and configure the PVID, Tagging Mode, and Binding Style of selected ports using the Selection List and Port Configuration Area. In addition, you can configure the PVID of selected ports using the drag-and-drop method. Selecting Ports Ports can be selected from the Tree View, Chassis View, or VLAN Tree for VLAN Configuration.

  • Page 176: Using The Port Configuration Area

    Apply. For more information on the user interface, refer to page 176 Avaya Integrated Management Release 4.0.1 Software Update Manager 170. The VLAN configuration for the selected ports is “Selecting Ports” on page “Using Dialog Boxes and Tables” on “Selecting Ports”...

  • Page 177: Chapter 10: Port Mirroring

    Do not change the VLAN of the source or destination port while the port mirroring mechanism is operating. Configuring Port Mirroring This section explains how to configure Port Mirroring on the Avaya G250/G350/G450 Device. To configure Port Mirroring: Click Select Configure > Port Mirroring. The Port Mirroring Wizard opens.

  • Page 178: The Port Mirroring Wizard

    If Port Mirroring is not currently active on the device, the Port Mirroring Wizard starts with the Create Welcome screen. If Port Mirroring is currently active on the device, the Port Mirroring Wizard starts with the Edit/Delete Welcome screen. 178 Avaya Integrated Management Release 4.0.1 Software Update Manager...

  • Page 179: Port Mirroring Wizard - Create Welcome

    The Port Mirroring Wizard Port Mirroring Wizard - Create Welcome The Port Mirroring Wizard provides a simple, step-by-step method for defining a Port Mirroring pair. Figure 78: Port Mirroring Wizard - Create Welcome To continue, click Next. The Port Mirroring Wizard continues with the Port Mirroring Wizard - Source Port Selection screen.

  • Page 180: Port Mirroring Wizard - Edit/Delete Welcome

    2. Click Next. The Port Mirroring Wizard continues with the Port Selection screen. The current configuration is reflected in the wizard’s screens. 180 Avaya Integrated Management Release 4.0.1 Software Update Manager Port Mirroring Wizard - Port Mirroring Wizard - Source...

  • Page 181: Port Mirroring Wizard - Source Port Selection

    The Port Mirroring Wizard Port Mirroring Wizard - Source Port Selection The Source Port Selection screen of the Port Mirroring Wizard helps you select a source port for the Port Mirroring pair. Ports that can be selected as sources appear in white in the Chassis View.

  • Page 182: Port Mirroring Wizard - Destination Port Selection

    When you have finished selecting the destination for the Port Mirroring pair, click Next. The Port Mirroring Wizard continues with the Port Mirroring Wizard - Frames Direction Selection screen. 182 Avaya Integrated Management Release 4.0.1 Software Update Manager...

  • Page 183: Port Mirroring Wizard - Frames Direction Selection

    Port Mirroring Wizard - Frames Direction Selection The Frames Direction Selection screen of the Port Mirroring Wizard enables you to select the traffic to be copied to the destination port. You can configure the destination port to receive all traffic going through the source port, or only the traffic received by the source port. Figure 82: Port Mirroring Wizard - Frames Direction Selection Screen To configure which frames are copied to the destination port, select an option from the Frames Direction Mode pull-down list box.

  • Page 184: Port Mirroring Wizard - Confirmation

    2. Change the Port Mirroring parameters. 3. Click Next until you reach the Confirmation screen. To upload the Port Mirroring configuration to the device, click Finish. The Port Mirroring configuration is uploaded to the device. 184 Avaya Integrated Management Release 4.0.1 Software Update Manager...

  • Page 185: Chapter 11: Port Rmon

    Click Select View > Port RMON. For more information on RMON, refer to RMON in The Reference Guide. Note: Port RMON is not available when running the Avaya G350 Manager via Web Note: Management. Displaying the Port RMON Window To display the Port RMON window, select a port in the Chassis or Tree View. The Port RMON window opens.

  • Page 186: The Pie Chart

    To zoom in on a portion of the graph, press SHIFT and select a portion of the graph using the mouse. The graph zooms in and shows only the portion of the graph that was selected. 186 Avaya Integrated Management Release 4.0.1 Software Update Manager...

  • Page 187: Scrolling Within The Graph

    Scrolling within the Graph To scroll within the graph, hold the left mouse button down while moving the mouse from the graph in the direction you want to scroll. The graph scrolls in the selected direction. Unfreezing the Graph When zooming or scrolling within the graph, the display freezes and is not updated with the current information.
  • Page 188 Port RMON 188 Avaya Integrated Management Release 4.0.1 Software Update Manager...

  • Page 189: Chapter 12: Switch Connected Addresses

    Switch Connected Addresses Overview The Switch Connected Addresses feature allows you to see which devices are connected to the ports on the Avaya G250/G350/G450 Device. Keeping track of this network information can increase efficiency and security, and assist in troubleshooting network problems.
  • Page 190 Figure 85: Switch Connected Addresses Window All the connections to the Avaya G250/G350/G450 Device are listed with their respective ports in the Switch Connected Addresses window. The rows of the Switch Connected Addresses window comprise the following information: Mac Address - The MAC addresses of the stations connected to the switch.

  • Page 191: Sorting The List Of Stations

    Viewing the Switch Connected Addresses Window Sorting the List of Stations To sort the list of stations, click on a column heading to sort by that column. To change the order of the sort (e.g. from ascending to descending), click the column heading of the field by which the list is sorted.
  • Page 192 Switch Connected Addresses 192 Avaya Integrated Management Release 4.0.1 Software Update Manager...

  • Page 193: Chapter 13: Port Redundancy

    Chapter 13: Port Redundancy This chapter provides the information and instructions for using the Port Redundancy feature (not available in the G250). It includes the following sections: Overview of Port Redundancy ● Configuring Port Redundancy ● and a description of the Port Redundancy dialog box. Adding a Port Redundancy ●...

  • Page 194: Configuring Port Redundancy

    The following table provides a list of the fields in the Port Redundancy dialog box and their descriptions. Table 65: Port Redundancy Fields Field Name 194 Avaya Integrated Management Release 4.0.1 Software Update Manager Description The name of the port redundancy. 1 of 2...

  • Page 195: Adding A Port Redundancy

    Table 65: Port Redundancy Fields (continued) Field Primary Secondary Switch Over (sec) Switch Back To configure the device’s port redundancy configuration: 1. Enter an amount in the Switch Over field to determine initial switching time between ports in a port redundancy pair. 2.

  • Page 196: Port Redundancy Wizard

    Port Redundancy Wizard - Primary Port Selection ● Port Redundancy Wizard - Secondary Port Selection ● Port Redundancy Wizard - Name and Type ● Port Redundancy Wizard - Confirmation ● 196 Avaya Integrated Management Release 4.0.1 Software Update Manager 202. “Updating the...

  • Page 197: Port Redundancy Wizard - Welcome

    Port Redundancy Wizard Port Redundancy Wizard - Welcome The Port Redundancy Wizard provides a simple, step-by-step method for creating a Port Redundancy. Figure 87: Port Redundancy Wizard - Welcome Screen To continue, click Next. The Port Redundancy Wizard continues with the Port Redundancy Wizard - Primary Port Selection screen.

  • Page 198: Port Redundancy Wizard - Primary Port Selection

    Chassis View and Tree View and is listed in the Primary Port field in the wizard. When you have selected the primary port for the Port Redundancy, click Next. The Port Redundancy Wizard continues with the Port Redundancy Wizard - Secondary Port Selection screen. 198 Avaya Integrated Management Release 4.0.1 Software Update Manager...

  • Page 199: Port Redundancy Wizard - Secondary Port Selection

    Port Redundancy Wizard Port Redundancy Wizard - Secondary Port Selection The Secondary Port Selection screen of the Port Redundancy Wizard allows you to select a secondary port for the Port Redundancy. Ports that can be selected as secondary ports appear white in the Chassis View.

  • Page 200: Port Redundancy Wizard - Name And Type

    To assign a name to the Port Redundancy, enter the name for the Port Redundancy in the Name field. When you have selected a name and a type for the Port Redundancy, click Next. The Port Redundancy Wizard continues with the Port Redundancy Wizard - Confirmation screen. 200 Avaya Integrated Management Release 4.0.1 Software Update Manager...

  • Page 201: Port Redundancy Wizard - Confirmation

    Port Redundancy Wizard - Confirmation The Port Redundancy Wizard displays a summary of the Port Redundancy information entered using the previous screens. The Port Redundancy has not yet been created. Figure 91: Port Redundancy Wizard - Confirmation Screen To make any changes to the summary information: 1.

  • Page 202: Deleting Port Redundancies

    Port Redundancy dialog box are discarded. For more information on the user interface, refer to page For more information on tables, refer to 202 Avaya Integrated Management Release 4.0.1 Software Update Manager “Using Dialog Boxes and Tables” on “Managing Tables” on page symbol.

  • Page 203: Chapter 14: Trap Managers Configuration

    ● Trap Manager Overview In the event of a fault or an unusual occurrence, the Avaya G250/G350/G450 Device can send traps to one or more Network Management Stations (NMS). To enable this feature, you must configure the Avaya G250/G350/G450 Device with a list of the managers’ workstations. Traps are then sent to the stations listed in the Managers table.

  • Page 204: Configuring Trap Managers

    The following table describes the information displayed in the Device Trap Managers table. Table 66: Device Trap Managers Table Item Enable Frame Relay PVC State change trap 204 Avaya Integrated Management Release 4.0.1 Software Update Manager Description When checked, enables Frame Relay PVC State Change trap. 1 of 3...
  • Page 205 When checked, RMON events are sent to the manager. When checked, DHCP client events are sent to the manager. When checked, Avaya Load MIB events such as download and upload success/failure/start, are sent to the manager. When checked, DHCP server events are sent to the manager.

  • Page 206: Editing The Trap Managers Table

    1. Click the row with the manager’s IP address. 2. Click Delete. 3. Repeat the procedure for each manager. 206 Avaya Integrated Management Release 4.0.1 Software Update Manager Description When checked, TFTP Server events are sent to the manager. When checked, RADIUS authentication events are sent to the manager.

  • Page 207: Chapter 15: Routing Manager

    Chapter 15: Routing Manager This chapter provides an introduction to the Avaya G250/G350/G450 Routing Manager. It includes the following sections: TheRouting Manager User Interface ● Routing Manager user interface. Editing Tables - An explanation of how to edit Avaya G250/G350/G450 Routing Manager ●...

  • Page 208: Toolbar

    Copies the selected information to the clipboard. Pastes information from the clipboard into the selected table row. Toggles the display of a form corresponding to the current table. 208 Avaya Integrated Management Release 4.0.1 Software Update Manager Table/Form Area Status Line Menu Item Edit >...

  • Page 209: Tree View

    Opens the on-line help for context-sensitive information. Tree View The Tree View shows the applicable configuration windows for the Avaya G250/G350/G450 Device’s routing function. To expand the view of the element when it is contracted, or to contract the view when it is expanded in the tree: Double-click the element.

  • Page 210: Table/Form Area

    Select View > Form. The display of the associated form is toggled. Editing Tables The Avaya Routing Manager user interface enables you to create, modify, and delete table entries in selected windows. The information can be added directly into the table, or in the form associated with the table.

  • Page 211: Creating New Table Entries

    Creating New Table Entries To create a new table entry: 1. Click Select Edit > Insert Row. A new table entry is created. 2. Enter data in the fields as required. 3. Click to update the router. Modifying Table Entries To modify data in table entries: 1.

  • Page 212: Saving Configuration Changes

    2. Select Action > Reset. A confirmation dialog box opens. 3. Click Yes. The selected router is reset. 212 Avaya Integrated Management Release 4.0.1 Software Update Manager - Changes are applied to the router, but are not saved. - Changes are saved to the router.

  • Page 213: Using Avaya G250/G350/G450 Routing Manager Help

    Using Avaya G250/G350/G450 Routing Manager Help This section explains how to use the on-line help in the Avaya G250/G350/G450 Routing Manager. The on-line help can be opened to the contents page or directly to a topic of interest. Note: When running the Avaya G350/G450 Manager via Web Management, on-line...
  • Page 214 Routing Manager 214 Avaya Integrated Management Release 4.0.1 Software Update Manager...

  • Page 215: Chapter 16: Layer

    Chapter 16: Layer 2 The Layer 2 folder provides access to the following window: Layer 2 Interfaces ● Layer 2 Interfaces To display the layer 2 interfaces: Select Layer 2 > Interfaces. The Layer 2 Interfaces window opens. Figure 94: Layer 2 Interfaces Window Issue 5 October 2007...
  • Page 216 Admin Status Oper Status The fields in the Layer 2 Interfaces window, except for Interface Description, are read-only. 216 Avaya Integrated Management Release 4.0.1 Software Update Manager Description The name of this Layer 2 interface. Description of this Layer 2 interface.

  • Page 217: Chapter 17: Ip Route

    Chapter 17: IP Route The IP Route folder provides access to the following windows: Displaying IP Global Parameters ● Configuring IP Interfaces ● Viewing the Routing Table ● Viewing the ARP Table ● Configuring GRE Tunneling ● DHCP ● ● OSPF ●...

  • Page 218: Displaying Ip Global Parameters

    ICMP Error Messages Enable ARP Timeout (seconds) 218 Avaya Integrated Management Release 4.0.1 Software Update Manager Description If checked, ICMP error messages should be sent. If not checked, ICMP error messages should not be sent. The number of seconds that may pass between ARP requests concerning entries in the ARP table.

  • Page 219: Configuring Ip Interfaces

    Configuring IP Interfaces IP interfaces represent the logical connections of the device to the IP nets/subnets attached to it. Each IP interface corresponds to one net/subnet. You can create either a static IP interface or an unnumbered IP interface. When you create a new IP interface, RIP and OSPF interfaces are automatically created and assigned enable status.
  • Page 220 Type Status Oper Status Directed Broadcast 220 Avaya Integrated Management Release 4.0.1 Software Update Manager Description The IP network mask of the attached net/subnet. The name of the Layer 2 interface with which this subnet is associated. Multiple subnets may be associated with a single VLAN, so multiple IP interfaces may be associated with the same If Name.
  • Page 221 Table 70: IP Interface Table Parameters (continued) Field Description Proxy ARP When enabled, the router responds to ARP requests received on a Layer 2 interface for a device reachable on a different Layer 2 interface. The response is the MAC address of the router interface. Note: Netbios The status of Netbios rebroadcast service on the interface.

  • Page 222: Viewing The Dynamic Ip Interfaces Table

    To display the dynamic IP interfaces: Select IP Route > Dynamic IP Interfaces. The Dynamic IP Interfaces Table window opens. Figure 97: Dynamic IP Interfaces Table 222 Avaya Integrated Management Release 4.0.1 Software Update Manager Description Reference Layer 2 Interface points to an IP unnumbered interface.

  • Page 223: Viewing The Routing Table

    The following parameters are displayed: Table 72: Dynamic IP Interfaces Table Parameters Field IP Interface Name IP Address IP NetMask Layer 2 Interface name Type Oper Status Redirects Viewing the Routing Table To display and update the Routing Table: Select IP Route > Routing Table. The Routing Table window opens. Static routes are displayed as read-only in the Routing Table.
  • Page 224 Netmask Next Hop Layer 2 Interface Name 224 Avaya Integrated Management Release 4.0.1 Software Update Manager Description The destination network IP address of this route. An IP address of 0.0.0.0 denotes a default router. The destination network mask of this route.
  • Page 225 Table 73: Routing Table Parameters (continued) Field Description Protocol The protocol through which the route was learned. The following protocols can be specified: Redistribute If checked, static entries are advertised by RIP and OSPF. If unchecked, static entries are not advertised. Cost Number of hops to the destination network, or the cost of the route for OSPF routes.

  • Page 226: Viewing The Static Routing Table

    Table 74: Static Routing Table Parameters Field Destination Netmask 226 Avaya Integrated Management Release 4.0.1 Software Update Manager Description The destination network IP address of this route. An IP address of 0.0.0.0 denotes a default router. The destination network mask of this route.
  • Page 227 Table 74: Static Routing Table Parameters (continued) Field Description Next Hop The address of the next router of this route, via which the destination of this route is reached. Note: Note: Layer 2 Interface The logical name of the local interface through which the next hop of Name this route is reached.

  • Page 228: Viewing The Arp Table

    All other fields can be edited in an existing row. When adding Static Routing Table entries on an Avaya G250/G350/G450, you can configure the next hop method in the Form View. Available next hop methods include: Next Hop - Select the Next Hop option button, and enter the IP address of the next hop.
  • Page 229 The following parameters are displayed: Table 75: ARP Parameters Field Description IP Address The IP address of the station. MAC Address The MAC address of the station. Layer 2 Interface The name of the interface. name Status The status of the interface. Possible status values are: ●...

  • Page 230: Configuring Gre Tunneling

    Field Interface Name Tunnel No. Encapsulation Method Local IP 230 Avaya Integrated Management Release 4.0.1 Software Update Manager Description Name of the Tunnel interface. The index number of the Tunnel interface. Possible values: 1-50 Note: Tunnel numbers must be unique.
  • Page 231 Maximum number of intervening devices between two endpoints of an IP tunnel. Verify Checksum When checked, the Avaya G250/G350/G450 verifies the checksum value in IP headers of packets traveling over the tunnel. Key Mode When checked, a shared key is used for envcrypting traffic over an IP tunnel.
  • Page 232 You can create or delete GRE tunnel table entries. For more information on editing tables, refer “Editing Tables” on page 232 Avaya Integrated Management Release 4.0.1 Software Update Manager Description The number of keep alive requests sent before an interface becomes inactive.

  • Page 233: Dhcp

    DHCP The DHCP folder provides access to the following windows: Viewing DHCP/BOOTP Global Parameters ● Configuring DHCP/BOOTP Parameters ● Viewing DHCP/BOOTP Global Parameters To display and update the DHCP/BOOTP global parameters: Select IP Route > DHCP > DHCP/BOOTP Global Parameters. The DHCP/BOOTP Global Parameters window opens.

  • Page 234: Configuring Dhcp/Bootp Parameters

    Server1 Address Server2 Address Relay Mode Relay Address 234 Avaya Integrated Management Release 4.0.1 Software Update Manager Description The interface name upon which the clients are located. The IP address of the first of two possible DHCP servers for the interface.

  • Page 235: Rip

    Note: The available values of Layer 2 Interface Name do not include the Layer 2 Note: interface on which dynamic IP address are defined. You can create, modify, or delete DHCP/BOOTP parameters. For more information on editing tables, refer to “Editing Tables”...

  • Page 236: Configuring Rip Interfaces

    Table 80: RIP Interface Parameters Field Interface Name IP Address 236 Avaya Integrated Management Release 4.0.1 Software Update Manager Description checked, RIP is disabled on all interfaces, regardless of the settings in the RIP Interfaces window. Controls redistribution of routes from OSPF to RIP. If checked, all routes learned via OSPF are advertised into RIP.
  • Page 237 Table 80: RIP Interface Parameters (continued) Field Description Reference IP The IP address borrowed for an unnumbered interface. Address A value of 0.0.0.0 indicates either that the IP address is not valid, or that the IP interface is borrowing the IP address from a dynamic IP interface whose IP address is not allocated yet.

  • Page 238: Ospf

    Viewing the OSPF External Database ● Viewing OSPF Neighbors ● 238 Avaya Integrated Management Release 4.0.1 Software Update Manager Description The method for handling routes learned from this interface, when sending updates to this interface. Possible methods are: Poisoned Reverse - The routes are advertised to this interface ●...

  • Page 239: Viewing Ospf Global Parameters

    Viewing OSPF Global Parameters To define and display OSPF Global parameters: Select IP Route > OSPF > OSPF Global Parameters. The OSPF Global Parameters window opens. Figure 108: OSPF Global Parameters Window The following parameters are displayed: Table 81: OSPF Global Parameters Field OSPF Router ID OSPF Global...

  • Page 240: Configuring Ospf Interfaces

    IP Interface Name The name assigned to the selected IP interface. IP Address Reference IP Address 240 Avaya Integrated Management Release 4.0.1 Software Update Manager Description Controls redistribution of static routes into OSPF. If checked, routes are advertised into OSPF as external routes, according to the "Leak Route"...
  • Page 241 None ● Simple-password ● MD5 - Auth Type cannot be set to MD5 from Avaya G250/G350/ ● G450 Manager. If MD5 authentication was configured from the CLI, you may view the existing Auth Type, or change Auth Type to None or Simple-password.

  • Page 242: Configuring Ospf Area Parameters

    Select IP Route > OSPF > OSPF Area Parameters. The OSPF Area Parameters window opens. Figure 110: OSPF Area Parameters Window 242 Avaya Integrated Management Release 4.0.1 Software Update Manager Description The password for this interface. This is only used if the Auth Type is set to Simple-password.

  • Page 243: Viewing The Ospf Link State Database

    The following parameters are displayed: Table 83: OSPF Area Parameters Field Area ID Stub Area Area Border Routers Count AS Border Routers Count Area LSAs Count Area LS Checksum Summary You can modify OSPF Area parameters. Viewing the OSPF Link State Database To display the OSPF Link State Database: Select IP Route >...
  • Page 244 2. Select an LSA Type from the LSA Type listbox. 3. Click Start. The OSPF Link State Database displays entries starting with the specified LSA Type. 244 Avaya Integrated Management Release 4.0.1 Software Update Manager Description The type and format of the link state advertisement; for example, Router links and Network links.

  • Page 245: Viewing The Ospf External Database

    To view all the entries in the OSPF Link State Database: Click Select View > Refresh. All entries appear in the table. Viewing the OSPF External Database To display the OSPF External Database window: Select IP Route > OSPF > OSPF External Database. The OSPF External Database window opens.

  • Page 246: Viewing Ospf Neighbors

    Priority Retransmit QLength The parameters in the OSPF Neighbors Table window are read-only. 246 Avaya Integrated Management Release 4.0.1 Software Update Manager Description The IP address of this neighbor. The unique OSPF identifier for the neighboring router. The state of the relationship with this neighbor: Down ●...

  • Page 247: Vrrp

    VRRP The VRRP folder provides access to the following windows: Viewing VRRP Global Parameters ● Viewing the VRRP Table ● Viewing VRRP Global Parameters VRRP (Virtual Router Redundancy Protocol) provides a method for configuring a redundancy between routers. A Master Router is selected for each Virtual Router. Backup routers function normally, while checking the Master Router.

  • Page 248: Viewing The Vrrp Table

    Master IP Address Priority Virtual Route Up Time 248 Avaya Integrated Management Release 4.0.1 Software Update Manager Description The name of the selected interface. A number which, along with an interface index (ifIndex), serves to uniquely identify a virtual router on a given VRRP router. A set of one or more associated addresses is assigned to a VRID.
  • Page 249 Table 88: VRRP Table Parameters (continued) Field Description Advertise Interval The interval of state advertisements from the primary interface to the backup interface. MAC Address MAC address of the VRRP interface. Primary Interface Logical name of the primary interface. Preempt Mode If Preempt is set, the interface becomes primary whenever it is active.

  • Page 250: Header Compression

    All header compression methods apply to point-to-point interfaces only. Note: Configuring cRTP Interfaces The Avaya G250/G350/G450 Device supports RTP compression, reducing the overhead of transmitting voice packets over the E1/T1 line. You can configure cRTP (Compressed RTP) parameters for each PPP interface.

  • Page 251: Configuring Tcp Header Compression Interfaces

    “Editing Tables” on page Configuring TCP Header Compression Interfaces The Avaya G250/G350/G450 Device supports TCP header compression, enabling compression of all TCP traffic. You can configure TCP header compression parameters for each PPP interface. To define and display TCP header compression Interfaces: Select IP Route >...
  • Page 252 Table 91: Available Compression Values for PPP and Frame Relay Interfaces Interface Type Frame Relay (IETF) Frame Relay (Non-IETF) 252 Avaya Integrated Management Release 4.0.1 Software Update Manager Description The name of the selected interface. The status of TCP header compression on this interface. Possible statuses include: Enabled - TCP header compression is enabled on the ●...

  • Page 253: Chapter 18: Policy Based Routing Manager

    Chapter 18: Policy Based Routing Manager This chapter provides an introduction to the Avaya G250/G350/G450 Policy Based Routing Manager. It includes the following sections: The Policy Based Routing Manager User Interface ● G350/G450 Policy Based Routing Manager user interface. The Application Editor Tool ●...

  • Page 254: Toolbar

    Sends the configuration to the device without saving. Refreshes the information in the Table View. Sends the configuration to the device and saves the configuration. File > Commit Opens the on-line help for context-sensitive information. 254 Avaya Integrated Management Release 4.0.1 Software Update Manager Table View Status...

  • Page 255: Table View

    Tree View The Tree View shows the applicable configuration windows for the Avaya G250/G350/G450 Device’s Policy Based Routing function. To expand the view of an element when it is contracted, or to contract the view when it is expanded in the tree: Double-click the element.

  • Page 256: Applied Changes

    Using Avaya G250/G350/G450 Policy Based Routing Manager Help This section explains how to use the on-line help in the Avaya G250/G350/G450 Policy Based Routing Manager. The on-line help can be opened to the contents page or directly to a topic of interest.

  • Page 257: Chapter 19: Policy Based Routing

    Policy Based Routing allows implementation of routing policies that selectively cause packets to take different paths. For example, in cases where the Avaya G250/G350/G450 Device has two WAN interfaces - Serial and xDSL - you can specify that voice packets be sent over the Serial link, and data packets over xDSL.

  • Page 258: Using The Tree View

    Configuration - Appears on a tab labeled Configuration. ● 258 Avaya Integrated Management Release 4.0.1 Software Update Manager - Appears on a tab labeled Policy Lists. - Appears on a tab labeled Policy Based Routing. - Appears on a tab labeled Policy Enforcement Points.

  • Page 259: Policy Based Routing List

    Policy Based Routing List The Policy list provides a list of policies created for a selected module, and displays information about each of the policies. This section provides a description of the Policy list, and discusses the following topics: Adding Policies ●...

  • Page 260: Adding Policies

    This section provides a description of the Rules list, and discusses the following topics: Adding Rules ● Modifying Rules ● 260 Avaya Integrated Management Release 4.0.1 Software Update Manager 259. appears next to the policy. “Adding Rules”...
  • Page 261 Copying Rules ● Moving Rules ● Deleting Rules ● To view the Rules list, select the policy in the Tree View whose rules you wish to view, and then select the Policy Based Routing Rules tab in the Table View. If the Rules list is not in the active policy, the Rules list opens in the Table View.
  • Page 262 Dst Wildcard Fragment Protocol DSCP Filter 262 Avaya Integrated Management Release 4.0.1 Software Update Manager Description Destination Address Wildcard. A wildcard that can modify the definition of the destination addresses to which this rule applies. You can change the Destination Address Wildcard using the pull-down list or enter a user defined wildcard.
  • Page 263 Table 94: Policy Based Routing Rules List Fields (continued) Field Description Src Application Source Application. The source application protocol of the packets to which this rule applies. Select an application from the pull-down list. Note: Note: Logical not. This enables all applications except for the application listed in the following Dst Application field.

  • Page 264: Adding Rules

    . The policy is updated with the copied rule, and the Table View is refreshed. Note: If no rule is selected, the copied rule is added to the bottom of the table. Note: 264 Avaya Integrated Management Release 4.0.1 Software Update Manager 260. 260. “Policy...

  • Page 265: Moving Rules

    Moving Rules You can move a rule’s position in a policy or move it from one policy to another. To move a rule: 1. Select a rule from the Rules List. To select more than one rule, press SHIFT while selecting additional rules. 2.

  • Page 266: Adding Routes

    Hop List” on page 3. Click . The table is updated with the added route, and the Table View is refreshed. Note: A mandatory but invalid route is highlighted in red. Note: 266 Avaya Integrated Management Release 4.0.1 Software Update Manager 265. “Next...

  • Page 267: Modifying Routes

    Modifying Routes To modify a route: 1. Click the route you want to modify. 2. Define the route’s fields in the table cells. For more information on the route’s fields refer to “Next Hop List” on page 3. Click . The table is updated with the modified route, and the Table View is refreshed. Note: Modifying a route may invalidate other routes.

  • Page 268: Deleting Routes

    This section provides a description of the Policy Enforcement Points list. Figure 123: Policy Enforcement Points Table The Policy Enforcement Points Table allows you to apply PBR lists to specific interfaces in Avaya G250/G350/G450 Policy Based Routing. The following interfaces are supported: Vlan ●...

  • Page 269: Configuration

    The following table provides a list of the fields in the Policy Enforcement Points Table: Table 96: Policy Enforcement Points Fields Fields Description Interface The interface name and description. Active PBR The Policy Based Route active on this interface. To modify a Policy Enforcement Points table, select policies for interfaces using the pull-down list in the Active PBR field.
  • Page 270 After changing any of the fields, click Apply to implement the changes or Cancel to revert to the previous values. 270 Avaya Integrated Management Release 4.0.1 Software Update Manager PBR - For a Policy Based Routing policy, this field always returns a ●...

  • Page 271: Next Hop List Configuration

    Next Hop List Configuration To view the Next Hop List Configuration form, select the policy list whose configuration form you wish to view from the Tree View, and then the Configuration tab in the Table View. The Next Hop List Configuration Dialog Box opens. Figure 125: Next Hop List Configuration Dialog Box Note: Only the Name field is configurable in the Next Hop List Configuration Dialog...

  • Page 272: Using Address Wildcards

    It also eases the editing of rules in a policy to provide the desired results. 272 Avaya Integrated Management Release 4.0.1 Software Update Manager - An overview of the IP Simulate function. - Instructions for using the IP Simulate function to simulate the actions...

  • Page 273: Using Ip Simulate

    Note: IP Simulate only operates on saved policies. Ensure that any changes to the Note: policy have been applied before testing packets. Note: IP Simulate can only be used when a specific Rules List is selected in the Tree Note: View.
  • Page 274 ICMP type/code IP Option IP fragments 274 Avaya Integrated Management Release 4.0.1 Software Update Manager Description The IP address of the device from which the simulated packet originated. The IP address of the device to which the simulated packet is addressed.
  • Page 275 Table 99: IP Simulate Fields (continued) Field Description Use QoS parameters Enables QoS parameters for forwarding the packet. The possible options are: ● ● If the Use QoS Parameters box is checked the IP simulate function uses the values in the DSCP and 802.1p fields in determining the action to be taken on the simulated packet.
  • Page 276 Policy Based Routing 276 Avaya Integrated Management Release 4.0.1 Software Update Manager...

  • Page 277: Chapter 20: Applications Editor Tool

    Applications Editor. Applications Editor Overview Avaya G250/G350/G450 Policy Based Routing allows you to specify application protocols by selecting an application name that represents protocol and port number information. The mapping of the application name to the information it represents is managed by the Applications Editor.
  • Page 278 Table 100: Applications Editor Fields Field Name Type Min Port Max Port Notes 278 Avaya Integrated Management Release 4.0.1 Software Update Manager Description The name of the application protocol. The application type. Possible types are: ● ● * (Other protocols) ●...

  • Page 279: Adding Application Protocols

    Edit > Delete Applying Changes When Avaya G250/G350/G450 Policy Based Routing is updated with the changes to the Applications Editor table, the pull-down list in the Rules List is updated. Added protocols appear in the Application pull-down list, and deleted applications no longer appear in the Application pull-down list.

  • Page 280: Reports

    Select File > Report. The Save dialog box opens. 2. Select a directory for the report. 3. Enter a name for the report. 4. Click Save. The report is saved to the specified file. 280 Avaya Integrated Management Release 4.0.1 Software Update Manager...

  • Page 281: Appendix A: Menus

    Appendix A: Menus This appendix gives the full structure of the menus in the Avaya G250/G350/G450 Manager. Device Manager Menus ● Routing Manager Menus ● Policy Based Routing Menus ● Applications Editor Menus ● Device Manager Menus This section provides the menu structure of the Avaya G250/G350/G450 Device Manager.

  • Page 282: File Menu

    Device Configuration Displays configuration information for the device. VLAN Displays and enables configuration of VLANs. 282 Avaya Integrated Management Release 4.0.1 Software Update Manager Note: This function is not supported when running the Avaya G250/G350/G450 Manager in a web browser. Close the browser to exit the application.
  • Page 283 Table 103: Configure Menu - Device Manager (continued) Item Description Port Redundancy Displays and enables configuration of port redundancies. Port Mirroring Allows copying of all transmitted and received packets from one port to another. Trap Managers Displays managers and traps configuration information. WAN >...

  • Page 284: Actions Menu

    Tools Menu Table 105: Tools Menu - Device Manager Item Description Administer Station/ Opens Avaya Site Administrator on the selected station or gateway. Gateway Administer Call Opens Avaya Site Administrator on the selected Media Call Controller. Controller 284 Avaya Integrated Management Release 4.0.1 Software Update Manager...

  • Page 285: Help Menu

    Help On Activates on-line help. About Avaya G250/ Copyright information about the Avaya G250/G350/G450 Device Manager. G350/G450 Manager Routing Manager Menus This section provides the menu structure of the Avaya G250/G350/G450 Routing Manager. File Menu ● Edit Menu ● View Menu ●...

  • Page 286: Edit Menu

    Sends the configuration information to the device. Start Point Opens the Start Point dialog box for specifying the starting point of entries displayed in the table. Reset Reset the selected router. 286 Avaya Integrated Management Release 4.0.1 Software Update Manager...

  • Page 287: Help Menu

    Activates context sensitive help. Help Contents Opens the on-line help contents page. About Routing Copyright information about the Avaya G250/G350/G450 Routing Manager. Manager Policy Based Routing Menus This section provides the menu structure of G250/G350/G450 Policy Based Routing. File Menu ●...

  • Page 288: Edit Menu

    Description Tooltip Enables viewing of tooltips. Refresh Refreshes information in the current table. Tools Menu Table 115: File Menu - Policy Based Routing Item Description Applications Editor Launches the Application Editor. 288 Avaya Integrated Management Release 4.0.1 Software Update Manager...

  • Page 289: Help Menu

    Item Description Report Generate the selected report. Print Print the current report. Exit Exit the Applications Editor tool. Description Opens the on-line help contents page. Activates context sensitive help. Copyright information about Avaya Policy Based Routing. Issue 5 October 2007...

  • Page 290: Edit Menu

    Add a new entry to the current table. Delete Delete an entry from the current table. Help Menu Table 119: Help Menu - Applications Editor Item Description Help Contents Opens the on-line help contents page. 290 Avaya Integrated Management Release 4.0.1 Software Update Manager...

  • Page 291: Appendix B: Web Management

    Avaya G350/G450 Device with the location of the help files. Configuring the Avaya G350/G450 Device When an Avaya G350/G450 is initially configured as a full router, it must be assigned an IP address. The IP address must be assigned using the CLI (Command Line Interface) setup screens.
  • Page 292 Web Management 292 Avaya Integrated Management Release 4.0.1 Software Update Manager...

  • Page 293: Appendix C: Icmp Packet Types & Codes

    Appendix C: ICMP Packet Types & Codes This appendix lists the various ICMP Packet Types and Codes as used in on page 273. Note: Some ICMP Packet Types have no corresponding Code. Note: ICMP Packet Type/Code List Table 120: ICMP Packet Types/Codes Description Echo Reply Unreachable...
  • Page 294 Address Mask Reply Traceroute Traceroute Outbound Packet Successfully Forwarded Traceroute No Route for Outbound Packet Conversion Errors Mobile Host Redirect IPv6 Where-Are-You IPv6 I-Am-Here 294 Avaya Integrated Management Release 4.0.1 Software Update Manager ICMP Type ICMP Code 2 of 3...
  • Page 295 Table 120: ICMP Packet Types/Codes (continued) Description Mobile Registration Request Mobile Registration Reply Domain Name Request Domain Name Reply Skip Algorithm Discovery Protocol Security Failure ICMP Type ICMP Code 3 of 3 Issue 5 October 2007...
  • Page 296 ICMP Packet Types & Codes 296 Avaya Integrated Management Release 4.0.1 Software Update Manager...

  • Page 297: Index

    Status Line trap managers user interface VLANs VoIP Engine configuration WAN configuration welcome to Avaya G250/G350/G450 Manager Avaya QoS Manager ..main views views overview Avaya Site Administration (ASA) Backup interface configuration...
  • Page 298 ........USP frame relay interface 298 Avaya Integrated Management Release 4.0.1 Software Update Manager USP PPP interface VLAN settings for ports...
  • Page 299 ..... . traps ....updating Device configuration .
  • Page 300 ..zoom in and out of the graph ... . . ICMP packet types/codes 300 Avaya Integrated Management Release 4.0.1 Software Update Manager Internet management configuration overview...
  • Page 301 Overview Avaya G250/G350/G450 Manager Avaya QoS Manager Views ........
  • Page 302 ....overview ..Source Port Selection screen 302 Avaya Integrated Management Release 4.0.1 Software Update Manager Port Redundancy adding deleting...
  • Page 303 ... . Source Port Selection screen Starting Avaya G250/G350/G450 Device Manager using Avaya ... . . Network Management Avaya G250/G350/G450 Manager .
  • Page 304 PPP interface ....PPP tab 304 Avaya Integrated Management Release 4.0.1 Software Update Manager Serial Port tab Sub-Frame-Relays tab viewing information...
  • Page 305 Channel Group Wizard ... . Port Redundancy Wizard Welcome to Avaya G250/G350/G450 Manager Who should use Avaya G250/G350/G450Manager Window ....

This manual is also suitable for:

G450 managerG250 manager

Table of Contents

Save PDF
