7. Firmware Upgrade
If you do not want to check for the updates automatically, uncheck the circle, which contains the green
tick.
If you want to postpone the update, a reminder can be set with different delays from the drop down list.
If the proxy settings traverse the update process, set the proper values then click the OK button.
Step 3. Press the Update button to download the new version; the installer will start.
7.1.1. Establish the Connection
Make sure that the computer and the device are connected via an USB and the connection is established
between them.
7.1.2. Start the LDU and Follow the Instructions

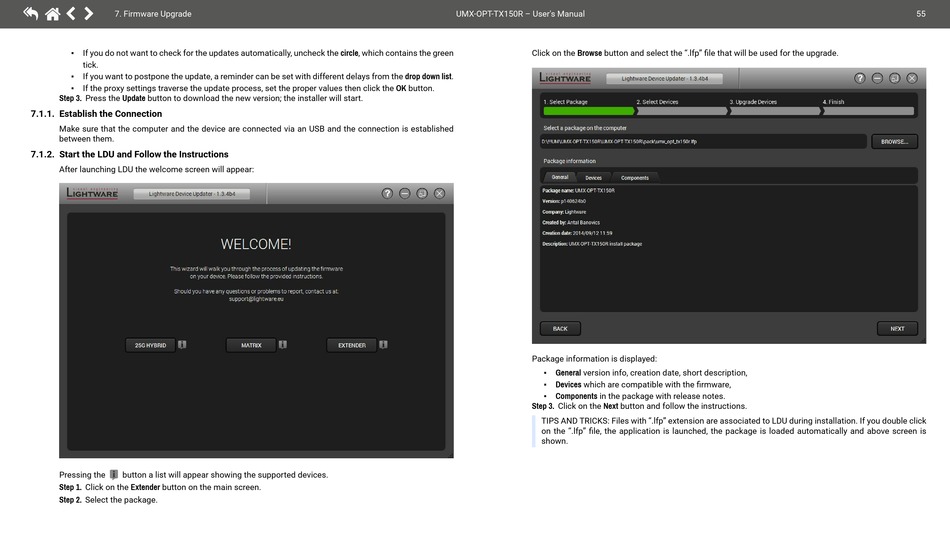

After launching LDU the welcome screen will appear:
A
Pressing the
button a list will appear showing the supported devices.
Step 1. Click on the Extender button on the main screen.
Step 2. Select the package.
UMX-OPT-TX150R – User's Manual
Click on the Browse button and select the ".lfp" file that will be used for the upgrade.
Package information is displayed:
General version info, creation date, short description,
Devices which are compatible with the firmware,
Components in the package with release notes.
Step 3. Click on the Next button and follow the instructions.
TIPS AND TRICKS: Files with ".lfp" extension are associated to LDU during installation. If you double click
on the ".lfp" file, the application is launched, the package is loaded automatically and above screen is
shown.
55
