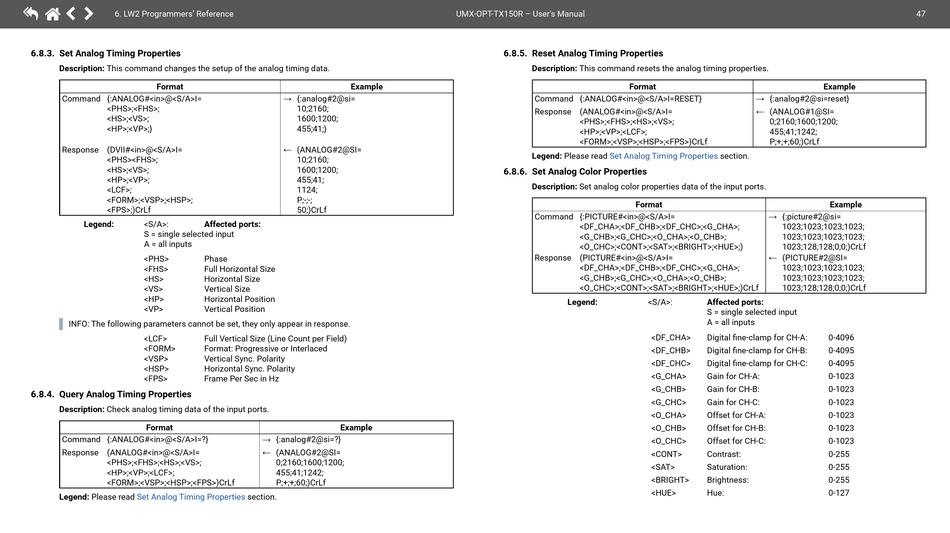

6. LW2 Programmers' Reference
6.8.3. Set Analog Timing Properties
Description: This command changes the setup of the analog timing data.
Format
Command {:ANALOG#<in>@<S/A>I=
<PHS>;<FHS>;
<HS>;<VS>;
<HP>;<VP>;}
Response (DVII#<in>@<S/A>I=
<PHS><FHS>;
<HS>;<VS>;
<HP>;<VP>;
<LCF>;
<FORM>;<VSP>;<HSP>;
<FPS>;)CrLf
Legend: <S/A>:
S = single selected input
A = all inputs
<PHS>
<FHS>
<HS>
<VS>
<HP>
<VP>
INFO: The following parameters cannot be set, they only appear in response.
<LCF>
<FORM>
<VSP>
<HSP>
<FPS>
6.8.4. Query Analog Timing Properties
Description: Check analog timing data of the input ports.
Format
Command {:ANALOG#<in>@<S/A>I=?}
Response (ANALOG#<in>@<S/A>I=
<PHS>;<FHS>;<HS>;<VS>;
<HP>;<VP>;<LCF>;
<FORM>;<VSP>;<HSP>;<FPS>)CrLf
Legend: Please read

Set Analog Timing Properties

Example
→ {:analog#2@si=
10;2160;
1600;1200;
455;41;}
← (ANALOG#2@SI=
10;2160;
1600;1200;
455;41;
1124;
P;-;-;
50;)CrLf
Affected ports:
Phase
Full Horizontal Size
Horizontal Size
Vertical Size
Horizontal Position
Vertical Position
Full Vertical Size (Line Count per Field)
Format: Progressive or Interlaced
Vertical Sync. Polarity
Horizontal Sync. Polarity
Frame Per Sec in Hz
Example
→ {:analog#2@si=?}
← (ANALOG#2@SI=
0;2160;1600;1200;
455;41;1242;
P;+;+;60;)CrLf
section.
UMX-OPT-TX150R – User's Manual
6.8.5. Reset Analog Timing Properties
Description: This command resets the analog timing properties.
Format
Command {:ANALOG#<in>@<S/A>I=RESET}
Response (ANALOG#<in>@<S/A>I=
<PHS>;<FHS>;<HS>;<VS>;
<HP>;<VP>;<LCF>;
<FORM>;<VSP>;<HSP>;<FPS>)CrLf
Legend: Please read Set Analog Timing Properties
6.8.6. Set Analog Color Properties
Description: Set analog color properties data of the input ports.
Format
Command {:PICTURE#<in>@<S/A>I=
<DF_CHA>;<DF_CHB>;<DF_CHC>;<G_CHA>;
<G_CHB>;<G_CHC>;<O_CHA>;<O_CHB>;
<O_CHC>;<CONT>;<SAT>;<BRIGHT>;<HUE>;)
Response (PICTURE#<in>@<S/A>I=
<DF_CHA>;<DF_CHB>;<DF_CHC>;<G_CHA>;
<G_CHB>;<G_CHC>;<O_CHA>;<O_CHB>;
<O_CHC>;<CONT>;<SAT>;<BRIGHT>;<HUE>;)CrLf
Legend:
Example
→ {:analog#2@si=reset}
← (ANALOG#1@SI=
0;2160;1600;1200;
455;41;1242;
P;+;+;60;)CrLf
section.
→ {:picture#2@si=
1023;1023;1023;1023;
1023;1023;1023;1023;
1023;128;128;0;0;)CrLf
← (PICTURE#2@SI=
1023;1023;1023;1023;
1023;1023;1023;1023;
1023;128;128;0;0;)CrLf
<S/A>: Affected ports:
S = single selected input
A = all inputs
<DF_CHA> Digital fine-clamp for CH-A:
<DF_CHB> Digital fine-clamp for CH-B:
<DF_CHC> Digital fine-clamp for CH-C:
<G_CHA> Gain for CH-A:
<G_CHB> Gain for CH-B:
<G_CHC> Gain for CH-C:
<O_CHA> Offset for CH-A:
<O_CHB> Offset for CH-B:
<O_CHC> Offset for CH-C:
<CONT> Contrast:
<SAT> Saturation:
<BRIGHT> Brightness:
<HUE> Hue:
47
Example
0-4096
0-4095
0-4095
0-1023
0-1023
0-1023
0-1023
0-1023
0-1023
0-255
0-255
0-255
0-127
