6. LW2 Programmers' Reference

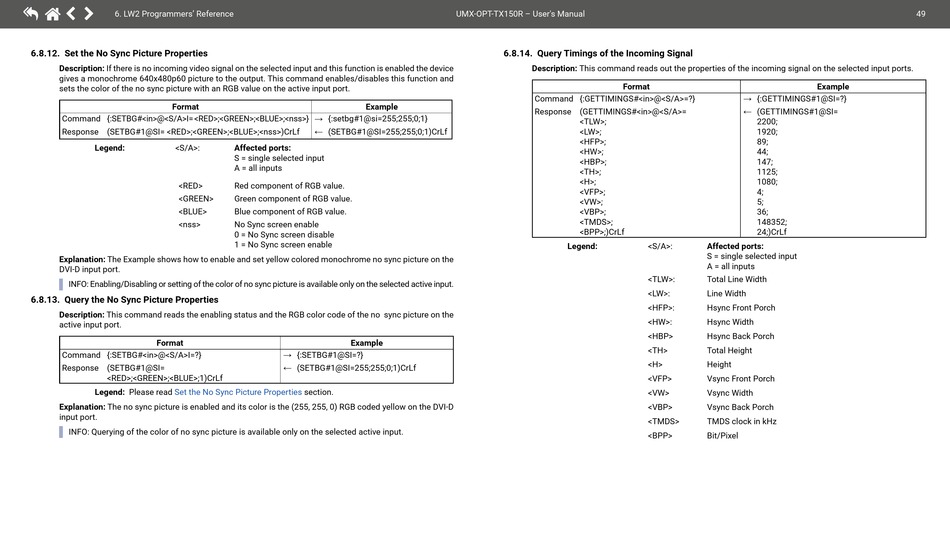

6.8.12. Set the No Sync Picture Properties
Description: If there is no incoming video signal on the selected input and this function is enabled the device
gives a monochrome 640x480p60 picture to the output. This command enables/disables this function and
sets the color of the no sync picture with an RGB value on the active input port.
Format
Command {:SETBG#<in>@<S/A>I= <RED>;<GREEN>;<BLUE>;<nss>} → {:setbg#1@si=255;255;0;1}
Response (SETBG#1@SI= <RED>;<GREEN>;<BLUE>;<nss>)CrLf
Legend: <S/A>:
<RED>
<GREEN>
<BLUE>
<nss>
Explanation: The Example shows how to enable and set yellow colored monochrome no sync picture on the
DVI-D input port.
INFO: Enabling/Disabling or setting of the color of no sync picture is available only on the selected active input.
6.8.13. Query the No Sync Picture Properties
Description: This command reads the enabling status and the RGB color code of the no sync picture on the
active input port.
Format
Command {:SETBG#<in>@<S/A>I=?}
Response (SETBG#1@SI=
<RED>;<GREEN>;<BLUE>;1)CrLf
Legend: Please read

Set the No Sync Picture Properties

Explanation: The no sync picture is enabled and its color is the (255, 255, 0) RGB coded yellow on the DVI-D
input port.
INFO: Querying of the color of no sync picture is available only on the selected active input.
Example
← (SETBG#1@SI=255;255;0;1)CrLf
Affected ports:
S = single selected input
A = all inputs
Red component of RGB value.
Green component of RGB value.
Blue component of RGB value.
No Sync screen enable
0 = No Sync screen disable
1 = No Sync screen enable
Example
→ {:SETBG#1@SI=?}
← (SETBG#1@SI=255;255;0;1)CrLf
section.
UMX-OPT-TX150R – User's Manual
6.8.14. Query Timings of the Incoming Signal
Description: This command reads out the properties of the incoming signal on the selected input ports.
Format
Command {:GETTIMINGS#<in>@<S/A>=?}
Response (GETTIMINGS#<in>@<S/A>=
<TLW>;
<LW>;
<HFP>;
<HW>;
<HBP>;
<TH>;
<H>;
<VFP>;
<VW>;
<VBP>;
<TMDS>;
<BPP>;)CrLf
Legend:
Example
→ {:GETTIMINGS#1@SI=?}
← (GETTIMINGS#1@SI=
2200;
1920;
89;
44;
147;
1125;
1080;
4;
5;
36;
148352;
24;)CrLf
<S/A>: Affected ports:
S = single selected input
A = all inputs
<TLW>: Total Line Width
<LW>: Line Width
<HFP>: Hsync Front Porch
<HW>: Hsync Width
<HBP> Hsync Back Porch
<TH> Total Height
<H> Height
<VFP> Vsync Front Porch
<VW> Vsync Width
<VBP> Vsync Back Porch
<TMDS> TMDS clock in kHz
<BPP> Bit/Pixel
