P roduct Overview
The following sections are about the physical structure of the device, input/
output ports and connectors:

UMX-OPT-TX150R - Front View

Ý
UMX-OPT-TX150R - Rear View
Ý
Electrical Connectors
Ý
Port Diagram
Ý
UMX-OPT-TX150R – User's Manual

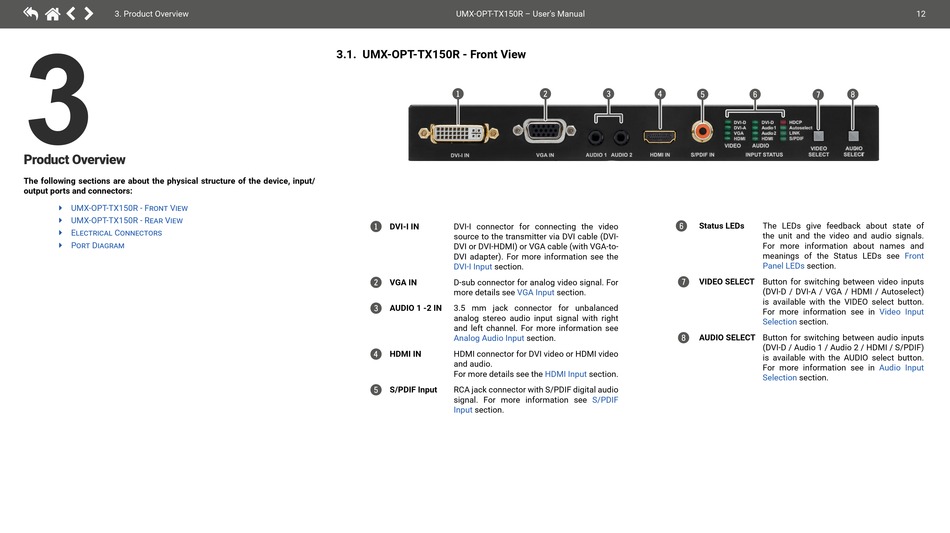

3.1. UMX-OPT-TX150R - Front View
1
DVI-I IN DVI-I connector for connecting the video
1
source to the transmitter via DVI cable (DVI-
DVI or DVI-HDMI) or VGA cable (with VGA-to-
DVI adapter). For more information see the
DVI-I Input section.
2 VGA IN D-sub connector for analog video signal. For
more details see
3 AUDIO 1 -2 IN 3.5 mm jack connector for unbalanced
analog stereo audio input signal with right
and left channel. For more information see
Analog Audio Input
4 HDMI IN HDMI connector for DVI video or HDMI video
and audio.
For more details see the
S/PDIF Input RCA jack connector with S/PDIF digital audio
5
signal. For more information see
Input section.
2 3 4 5
6
7
VGA Input section.
section. 8
HDMI Input section.
S/PDIF
6 7 8
Status LEDs The LEDs give feedback about state of
the unit and the video and audio signals.
For more information about names and
meanings of the Status LEDs see
Panel LEDs section.
VIDEO SELECT Button for switching between video inputs
(DVI-D / DVI-A / VGA / HDMI / Autoselect)
is available with the VIDEO select button.
For more information see in
Selection section.
AUDIO SELECT Button for switching between audio inputs
(DVI-D / Audio 1 / Audio 2 / HDMI / S/PDIF)
is available with the AUDIO select button.
For more information see in
Selection section.
12
Front
Video Input
Audio Input
