5. Software Control – Lightware Device Controller
Exporting an EDID
Source EDID can be downloaded as a file (*.bin, *.dat or *.edid) to the computer.
Step 1. Select the desired EDID from the Source panel (line will be highlighted with yellow).
Step 2. Press the Save button to open the dialog box and save the file to the computer.
Importing an EDID
Previously saved EDID (*.bin, *.dat or *.edid file) can be uploaded to the user memory:
Step 1. Press the User button on the top of the Source panel and select a memory slot.
Step 2. Press the Upload button below the Source panel.
Step 3. Browse the file in the opening window then press the Open button. Browsed EDID is imported into the
selected User memory.
ATTENTION! The imported EDID overwrites the selected memory place even if it is not empty.
Deleting EDID(s)
The EDID(s) from User memory can be deleted as follows:
Step 1. Press User button on the top of the Destination panel.
Step 2. Select the desired memory slot(s); one or more can be selected (Select All and Select None buttons can
be used). The EDID(s) will be highlighted with yellow.
Step 3. Press the Delete selected button to delete the EDID(s).

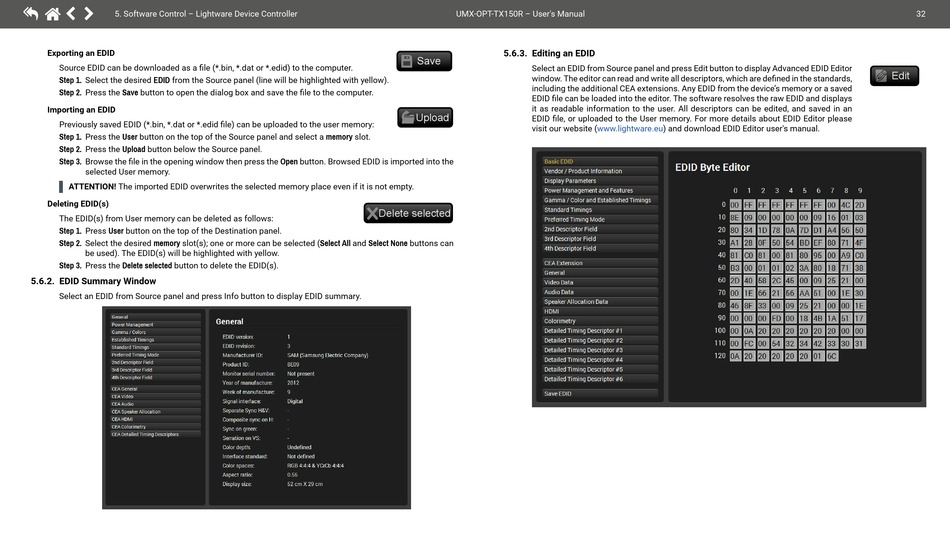

5.6.2. EDID Summary Window
Select an EDID from Source panel and press Info button to display EDID summary.
UMX-OPT-TX150R – User's Manual
A
5.6.3. Editing an EDID
Save
Select an EDID from Source panel and press Edit button to display Advanced EDID Editor
A window. The editor can read and write all descriptors, which are defined in the standards,
including the additional CEA extensions. Any EDID from the device's memory or a saved
EDID file can be loaded into the editor. The software resolves the raw EDID and displays
it as readable information to the user. All descriptors can be edited, and saved in an
Upload
EDID file, or uploaded to the User memory. For more details about EDID Editor please
visit our website (www.lightware.eu) and download EDID Editor user's manual.
A
Delete selected
