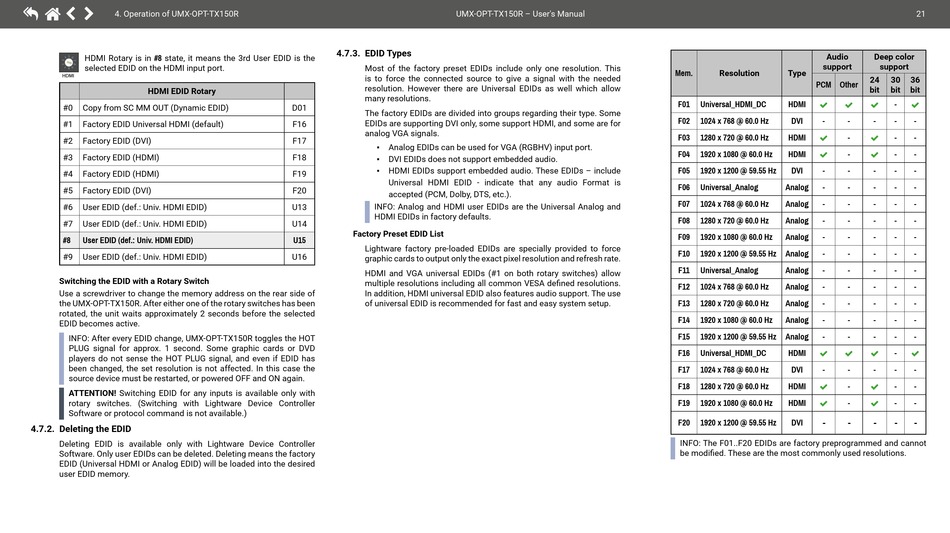

HDMI Rotary is in #8 state, it means the 3rd User EDID is the
selected EDID on the HDMI input port.
HDMI
HDMI EDID Rotary
#0 Copy from SC MM OUT (Dynamic EDID)
#1 Factory EDID Universal HDMI (default)
#2 Factory EDID (DVI)
#3 Factory EDID (HDMI)
#4 Factory EDID (HDMI)
#5 Factory EDID (DVI)
#6 User EDID (def.: Univ. HDMI EDID)
#7 User EDID (def.: Univ. HDMI EDID)
#8 User EDID (def.: Univ. HDMI EDID)
#9 User EDID (def.: Univ. HDMI EDID)
Switching the EDID with a Rotary Switch
Use a screwdriver to change the memory address on the rear side of
the UMX-OPT-TX150R. After either one of the rotary switches has been
rotated, the unit waits approximately 2 seconds before the selected
EDID becomes active.
INFO: After every EDID change, UMX-OPT-TX150R toggles the HOT
PLUG signal for approx. 1 second. Some graphic cards or DVD
players do not sense the HOT PLUG signal, and even if EDID has
been changed, the set resolution is not affected. In this case the
source device must be restarted, or powered OFF and ON again.
ATTENTION! Switching EDID for any inputs is available only with
rotary switches. (Switching with Lightware Device Controller
Software or protocol command is not available.)
4.7.2. Deleting the EDID
Deleting EDID is available only with Lightware Device Controller
Software. Only user EDIDs can be deleted. Deleting means the factory
EDID (Universal HDMI or Analog EDID) will be loaded into the desired
user EDID memory.
UMX-OPT-TX150R – User's Manual
4.7.3. EDID Types
Most of the factory preset EDIDs include only one resolution. This
is to force the connected source to give a signal with the needed
resolution. However there are Universal EDIDs as well which allow
many resolutions.
D01
The factory EDIDs are divided into groups regarding their type. Some
EDIDs are supporting DVI only, some support HDMI, and some are for
F16
analog VGA signals.
F17
▪ Analog EDIDs can be used for VGA (RGBHV) input port.
F18
▪ DVI EDIDs does not support embedded audio.
HDMI EDIDs support embedded audio. These EDIDs – include
▪
F19
Universal HDMI EDID - indicate that any audio Format is
F20
accepted (PCM, Dolby, DTS, etc.).
INFO: Analog and HDMI user EDIDs are the Universal Analog and
U13
HDMI EDIDs in factory defaults.
U14
Factory Preset EDID List
U15
Lightware factory pre-loaded EDIDs are specially provided to force
U16
graphic cards to output only the exact pixel resolution and refresh rate.
HDMI and VGA universal EDIDs (#1 on both rotary switches) allow
multiple resolutions including all common VESA defined resolutions.
In addition, HDMI universal EDID also features audio support. The use
of universal EDID is recommended for fast and easy system setup.
Audio
support
Resolution Type
Mem.
PCM Other
F01 Universal_HDMI_DC HDMI
 
F02 1024 x 768 @ 60.0 Hz DVI - -
F03 1280 x 720 @ 60.0 Hz HDMI -

F04 1920 x 1080 @ 60.0 Hz HDMI -

F05 1920 x 1200 @ 59.55 Hz DVI - -
F06 Universal_Analog Analog - -
F07 1024 x 768 @ 60.0 Hz Analog - -
F08 1280 x 720 @ 60.0 Hz Analog - -
F09 1920 x 1080 @ 60.0 Hz Analog - -
F10 1920 x 1200 @ 59.55 Hz Analog - -
F11 Universal_Analog Analog - -
F12 1024 x 768 @ 60.0 Hz Analog - -
F13 1280 x 720 @ 60.0 Hz Analog - -
F14 1920 x 1080 @ 60.0 Hz Analog - -
F15 1920 x 1200 @ 59.55 Hz Analog - -
F16 Universal_HDMI_DC HDMI
 
F17 1024 x 768 @ 60.0 Hz DVI - -
F18 1280 x 720 @ 60.0 Hz HDMI -

F19 1920 x 1080 @ 60.0 Hz HDMI -

F20 1920 x 1200 @ 59.55 Hz DVI - -
INFO: The F01..F20 EDIDs are factory preprogrammed and cannot
be modified. These are the most commonly used resolutions.
21
Deep color
support
24 30 36
bit bit bit
-
 
- - -
- -

- -

- - -
- - -
- - -
- - -
- - -
- - -
- - -
- - -
- - -
- - -
- - -
-
 
- - -
- -

- -

- - -
