3. Product Overview

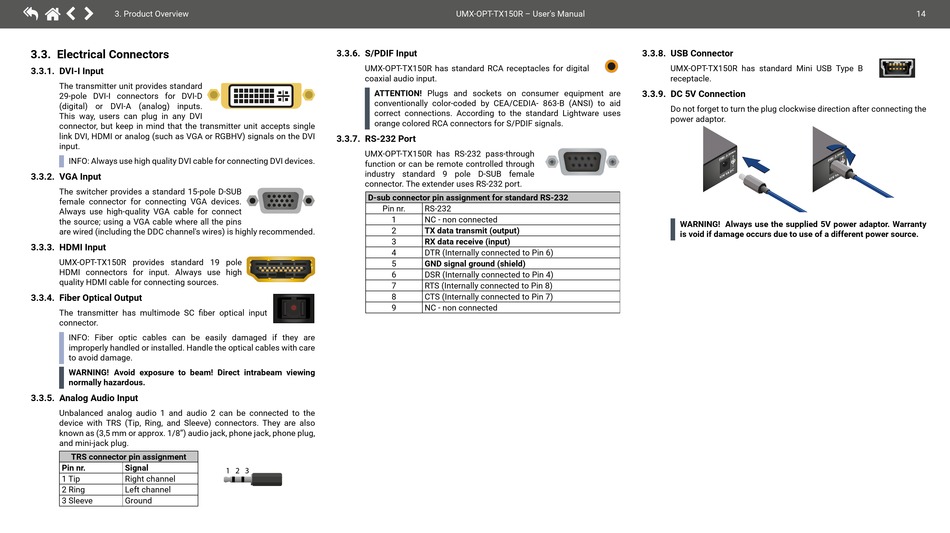

3.3. Electrical Connectors
3.3.1. DVI-I Input
The transmitter unit provides standard
29-pole DVI-I connectors for DVI-D
(digital) or DVI-A (analog) inputs.
This way, users can plug in any DVI
connector, but keep in mind that the transmitter unit accepts single
link DVI, HDMI or analog (such as VGA or RGBHV) signals on the DVI
input.
INFO: Always use high quality DVI cable for connecting DVI devices.
3.3.2. VGA Input
The switcher provides a standard 15-pole D-SUB
female connector for connecting VGA devices.
Always use high-quality VGA cable for connect
the source; using a VGA cable where all the pins
are wired (including the DDC channel's wires) is highly recommended.
3.3.3. HDMI Input
UMX-OPT-TX150R provides standard 19 pole
HDMI connectors for input. Always use high
quality HDMI cable for connecting sources.
3.3.4. Fiber Optical Output
The transmitter has multimode SC fiber optical input
connector.
INFO: Fiber optic cables can be easily damaged if they are
improperly handled or installed. Handle the optical cables with care
to avoid damage.
WARNING! Avoid exposure to beam! Direct intrabeam viewing
normally hazardous.
3.3.5. Analog Audio Input
Unbalanced analog audio 1 and audio 2 can be connected to the
device with TRS (Tip, Ring, and Sleeve) connectors. They are also
known as (3,5 mm or approx. 1/8") audio jack, phone jack, phone plug,
and mini-jack plug.
TRS connector pin assignment
Pin nr. Signal
1 Tip Right channel
2 Ring Left channel
3 Sleeve Ground
3.3.6. S/PDIF Input
UMX-OPT-TX150R has standard RCA receptacles for digital
coaxial audio input.
ATTENTION! Plugs and sockets on consumer equipment are
conventionally color-coded by CEA/CEDIA- 863-B (ANSI) to aid
correct connections. According to the standard Lightware uses
orange colored RCA connectors for S/PDIF signals.
3.3.7. RS-232 Port
UMX-OPT-TX150R has RS-232 pass-through
function or can be remote controlled through
industry standard 9 pole D-SUB female
connector. The extender uses RS-232 port.
D-sub connector pin assignment for standard RS-232
Pin nr.
1
2
3
4
5
6
7
8
9
1 2 3
UMX-OPT-TX150R – User's Manual
RS-232
NC - non connected
TX data transmit (output)
RX data receive (input)
DTR (Internally connected to Pin 6)
GND signal ground (shield)
DSR (Internally connected to Pin 4)
RTS (Internally connected to Pin 8)
CTS (Internally connected to Pin 7)
NC - non connected
3.3.8. USB Connector
UMX-OPT-TX150R has standard Mini USB Type B
receptacle.
3.3.9. DC 5V Connection
Do not forget to turn the plug clockwise direction after connecting the
power adaptor.
m
.1 m
: 2
P IN
D C
1 A
V
1 2
WARNING! Always use the supplied 5V power adaptor. Warranty
is void if damage occurs due to use of a different power source.
