5. Software Control – Lightware Device Controller

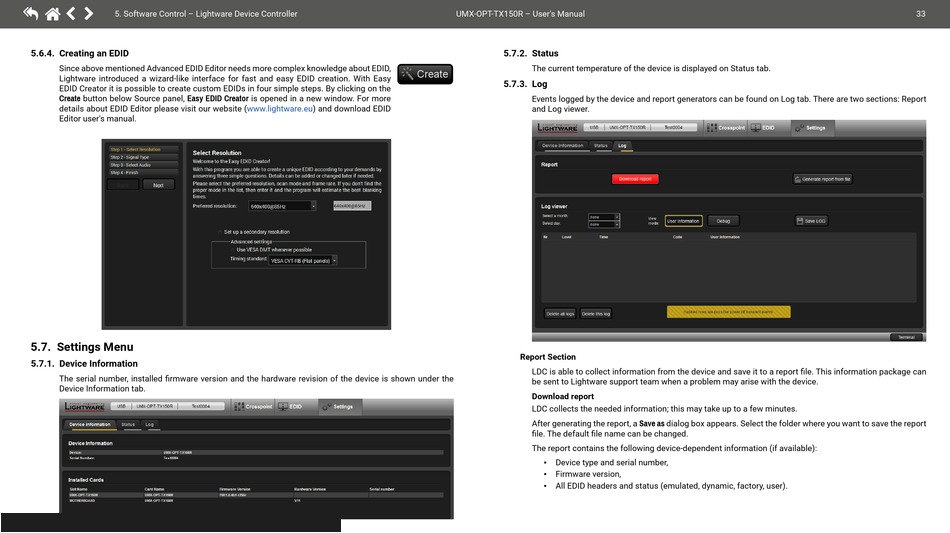

5.6.4. Creating an EDID
Since above mentioned Advanced EDID Editor needs more complex knowledge about EDID,
Lightware introduced a wizard-like interface for fast and easy EDID creation. With Easy
EDID Creator it is possible to create custom EDIDs in four simple steps. By clicking on the
Create button below Source panel, Easy EDID Creator is opened in a new window. For more
details about EDID Editor please visit our website (www.lightware.eu) and download EDID
Editor user's manual.
5.7. Settings Menu
5.7.1. Device Information
The serial number, installed firmware version and the hardware revision of the device is shown under the
Device Information tab.
UMX-OPT-TX150R – User's Manual
A
5.7.2. Status
The current temperature of the device is displayed on Status tab.
Create
5.7.3. Log
Events logged by the device and report generators can be found on Log tab. There are two sections: Report
and Log viewer.
Report Section
LDC is able to collect information from the device and save it to a report file. This information package can
be sent to Lightware support team when a problem may arise with the device.
Download report
LDC collects the needed information; this may take up to a few minutes.
After generating the report, a Save as dialog box appears. Select the folder where you want to save the report
file. The default file name can be changed.
The report contains the following device-dependent information (if available):
▪ Device type and serial number,
▪ Firmware version,
All EDID headers and status (emulated, dynamic, factory, user).
▪
