6. LW2 Programmers' Reference
INFO: Analog color setting will not be saved automatically. User can save it with the next command.

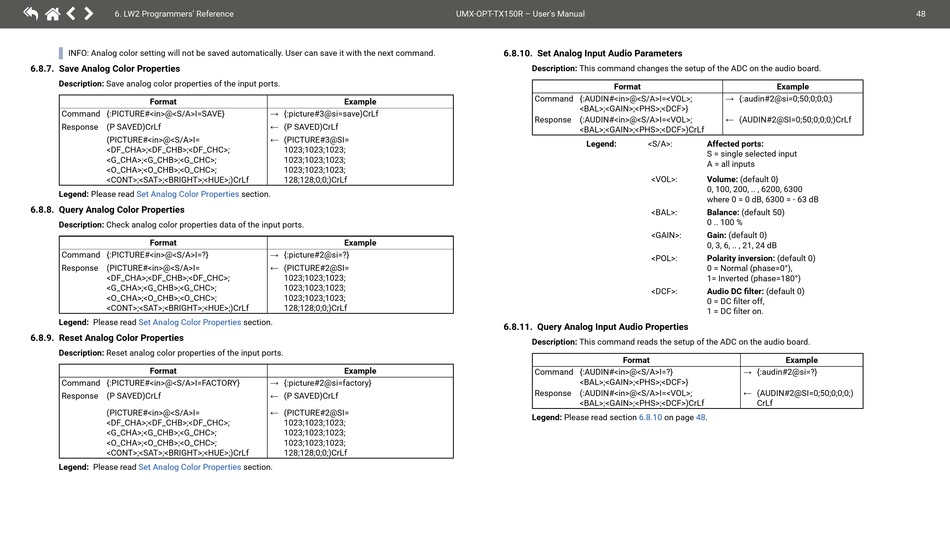

6.8.7. Save Analog Color Properties
Description: Save analog color properties of the input ports.
Format
Command {:PICTURE#<in>@<S/A>I=SAVE}
Response (P SAVED)CrLf
(PICTURE#<in>@<S/A>I=
<DF_CHA>;<DF_CHB>;<DF_CHC>;
<G_CHA>;<G_CHB>;<G_CHC>;
<O_CHA>;<O_CHB>;<O_CHC>;
<CONT>;<SAT>;<BRIGHT>;<HUE>;)CrLf
Legend: Please read Set Analog Color Properties
6.8.8. Query Analog Color Properties
Description: Check analog color properties data of the input ports.
Format
Command {:PICTURE#<in>@<S/A>I=?}
Response (PICTURE#<in>@<S/A>I=
<DF_CHA>;<DF_CHB>;<DF_CHC>;
<G_CHA>;<G_CHB>;<G_CHC>;
<O_CHA>;<O_CHB>;<O_CHC>;
<CONT>;<SAT>;<BRIGHT>;<HUE>;)CrLf
Legend: Please read Set Analog Color Properties
6.8.9. Reset Analog Color Properties
Description: Reset analog color properties of the input ports.
Format
Command {:PICTURE#<in>@<S/A>I=FACTORY}
Response (P SAVED)CrLf
(PICTURE#<in>@<S/A>I=
<DF_CHA>;<DF_CHB>;<DF_CHC>;
<G_CHA>;<G_CHB>;<G_CHC>;
<O_CHA>;<O_CHB>;<O_CHC>;
<CONT>;<SAT>;<BRIGHT>;<HUE>;)CrLf
Legend: Please read Set Analog Color Properties
Example
→ {:picture#3@si=save)CrLf
← (P SAVED)CrLf
← (PICTURE#3@SI=
1023;1023;1023;
1023;1023;1023;
1023;1023;1023;
128;128;0;0;)CrLf
section.
Example
→ {:picture#2@si=?}
← (PICTURE#2@SI=
1023;1023;1023;
1023;1023;1023;
1023;1023;1023;
128;128;0;0;)CrLf
section.
Example
→ {:picture#2@si=factory}
← (P SAVED)CrLf
← (PICTURE#2@SI=
1023;1023;1023;
1023;1023;1023;
1023;1023;1023;
128;128;0;0;)CrLf
section.
UMX-OPT-TX150R – User's Manual
6.8.10. Set Analog Input Audio Parameters
Description: This command changes the setup of the ADC on the audio board.
Format
Command {:AUDIN#<in>@<S/A>I=<VOL>;
<BAL>;<GAIN>;<PHS>;<DCF>}
Response (:AUDIN#<in>@<S/A>I=<VOL>;
<BAL>;<GAIN>;<PHS>;<DCF>)CrLf
Legend:
6.8.11. Query Analog Input Audio Properties
Description: This command reads the setup of the ADC on the audio board.
Format
Command {:AUDIN#<in>@<S/A>I=?}
<BAL>;<GAIN>;<PHS>;<DCF>}
Response (:AUDIN#<in>@<S/A>I=<VOL>;
<BAL>;<GAIN>;<PHS>;<DCF>)CrLf
Legend: Please read section
Example
→ {:audin#2@si=0;50;0;0;0;}
← (AUDIN#2@SI=0;50;0;0;0;)CrLf
<S/A>: Affected ports:
S = single selected input
A = all inputs
<VOL>: Volume: (default 0}
0, 100, 200, .. , 6200, 6300
where 0 = 0 dB, 6300 = - 63 dB
<BAL>: Balance: (default 50)
0 .. 100 %
<GAIN>: Gain: (default 0)
0, 3, 6, .. , 21, 24 dB
<POL>: Polarity inversion: (default 0)
0 = Normal (phase=0°),
1= Inverted (phase=180°)
<DCF>: Audio DC filter: (default 0)
0 = DC filter off,
1 = DC filter on.
Example
→ {:audin#2@si=?}
← (AUDIN#2@SI=0;50;0;0;0;)
CrLf
6.8.10 on page 48.
