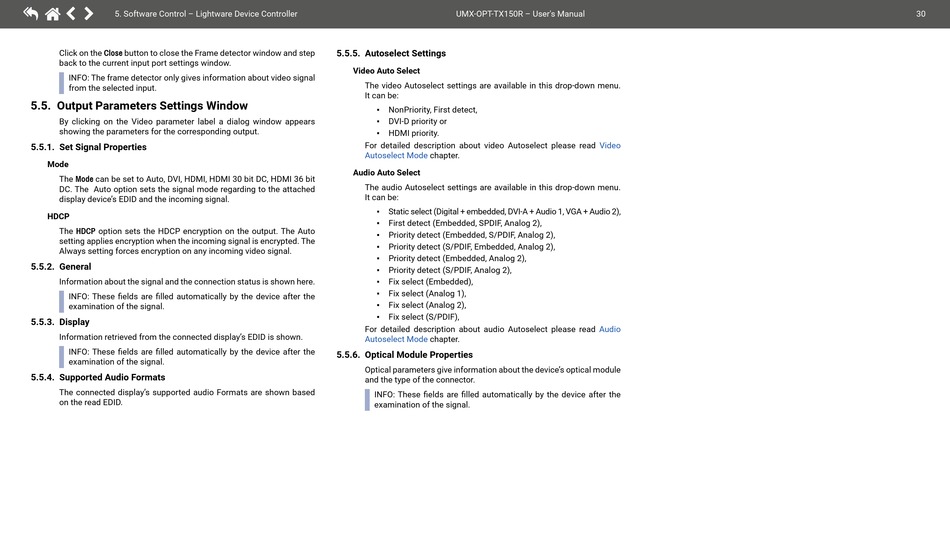

5. Software Control – Lightware Device Controller
Click on the Close button to close the Frame detector window and step
back to the current input port settings window.
INFO: The frame detector only gives information about video signal
from the selected input.
5.5. Output Parameters Settings Window
By clicking on the Video parameter label a dialog window appears
showing the parameters for the corresponding output.
5.5.1. Set Signal Properties
Mode
The Mode can be set to Auto, DVI, HDMI, HDMI 30 bit DC, HDMI 36 bit
DC. The Auto option sets the signal mode regarding to the attached
display device's EDID and the incoming signal.
HDCP
The HDCP option sets the HDCP encryption on the output. The Auto
setting applies encryption when the incoming signal is encrypted. The
Always setting forces encryption on any incoming video signal.
5.5.2. General
Information about the signal and the connection status is shown here.
INFO: These fields are filled automatically by the device after the
examination of the signal.
5.5.3. Display
Information retrieved from the connected display's EDID is shown.
INFO: These fields are filled automatically by the device after the
examination of the signal.
5.5.4. Supported Audio Formats
The connected display's supported audio Formats are shown based
on the read EDID.
UMX-OPT-TX150R – User's Manual
5.5.5. Autoselect Settings
Video Auto Select
The video Autoselect settings are available in this drop-down menu.
It can be:
NonPriority, First detect,
▪
▪ DVI-D priority or
▪ HDMI priority.
For detailed description about video Autoselect please read
Autoselect Mode chapter.
Audio Auto Select
The audio Autoselect settings are available in this drop-down menu.
It can be:
Static select (Digital + embedded, DVI-A + Audio 1, VGA + Audio 2),
▪
▪ First detect (Embedded, SPDIF, Analog 2),
▪ Priority detect (Embedded, S/PDIF, Analog 2),
Priority detect (S/PDIF, Embedded, Analog 2),
▪
▪ Priority detect (Embedded, Analog 2),
▪ Priority detect (S/PDIF, Analog 2),
Fix select (Embedded),
▪
▪ Fix select (Analog 1),
▪ Fix select (Analog 2),
Fix select (S/PDIF),
▪
For detailed description about audio Autoselect please read
Autoselect Mode chapter.
5.5.6. Optical Module Properties
Optical parameters give information about the device's optical module
and the type of the connector.
INFO: These fields are filled automatically by the device after the
examination of the signal.
Video
Audio
