3. Product Overview

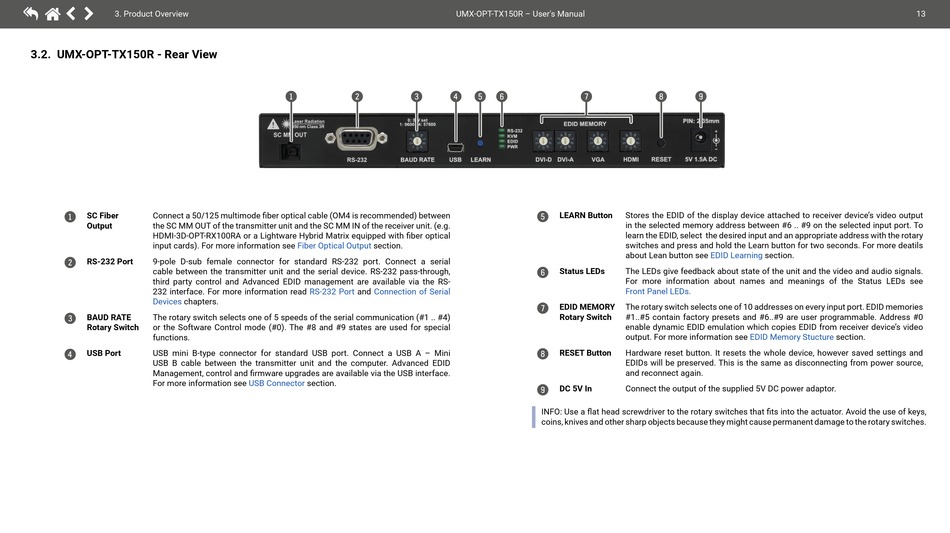

3.2. UMX-OPT-TX150R - Rear View
SC Fiber Connect a 50/125 multimode fiber optical cable (OM4 is recommended) between
1
Output the SC MM OUT of the transmitter unit and the SC MM IN of the receiver unit. (e.g.
HDMI-3D-OPT-RX100RA or a Lightware Hybrid Matrix equipped with fiber optical
input cards). For more information see
RS-232 Port 9-pole D-sub female connector for standard RS-232 port. Connect a serial
2
cable between the transmitter unit and the serial device. RS-232 pass-through,
third party control and Advanced EDID management are available via the RS-
232 interface. For more information read
Devices
BAUD RATE The rotary switch selects one of 5 speeds of the serial communication (#1 .. #4)
3
Rotary Switch or the Software Control mode (#0). The #8 and #9 states are used for special
functions.
USB Port USB mini B-type connector for standard USB port. Connect a USB A – Mini
4
USB B cable between the transmitter unit and the computer. Advanced EDID
Management, control and firmware upgrades are available via the USB interface.
For more information see
1 2
Fiber Optical Output
RS-232 Port and
chapters.
USB Connector section.
UMX-OPT-TX150R – User's Manual
3 4 5
6
5
section.
6
Connection of Serial
7
8
9
INFO: Use a flat head screwdriver to the rotary switches that fits into the actuator. Avoid the use of keys,
coins, knives and other sharp objects because they might cause permanent damage to the rotary switches.
7 8 9
LEARN Button Stores the EDID of the display device attached to receiver device's video output
in the selected memory address between #6 .. #9 on the selected input port. To
learn the EDID, select the desired input and an appropriate address with the rotary
switches and press and hold the Learn button for two seconds. For more deatils
about Lean button see EDID Learning
Status LEDs The LEDs give feedback about state of the unit and the video and audio signals.
For more information about names and meanings of the Status LEDs see
Front Panel LEDs.
EDID MEMORY The rotary switch selects one of 10 addresses on every input port. EDID memories
Rotary Switch #1..#5 contain factory presets and #6..#9 are user programmable. Address #0
enable dynamic EDID emulation which copies EDID from receiver device's video
output. For more information see
RESET Button Hardware reset button. It resets the whole device, however saved settings and
EDIDs will be preserved. This is the same as disconnecting from power source,
and reconnect again.
DC 5V In Connect the output of the supplied 5V DC power adaptor.
13
section.
EDID Memory Stucture section.
