5. Software Control – Lightware Device Controller
Generate Report From File
The LDC is able to send a custom command file to UMX-OPT-TX150R. The command file can be generated
by Lightware support. This is needed when some special commands have to be used for configuring the
device or troubleshooting.
If a command file was sent:
Step 1. Save it to the computer.
Step 2. Click to the Generate report from file button. A browser window will be opened.
Step 3. Choose the command file. Another browser window will be appeared where the generated result file
will be saved.
INFO: This function is only for special troubleshooting cases.
Log Viewer Section
Log files saved by the transmitter can be downloaded and viewed with this function.
User information is selected in the view mode (frame is highlighted with yellow), the columns in the list are
the followings: error level, time (nominial time to give information about the order of the events), error code,
user information.
The data is displayed in a structured, user-friendly way, this mode is recommended.
When Debug view mode is selected (frame is highlighted with yellow) there are some additional columns:
error parameter, processor task identifier, occurrences and extra information. This data display for special
troubleshooting cases.
The error log can be saved in a CSV file on the computer by the Export to CSV file button.
UMX-OPT-TX150R – User's Manual

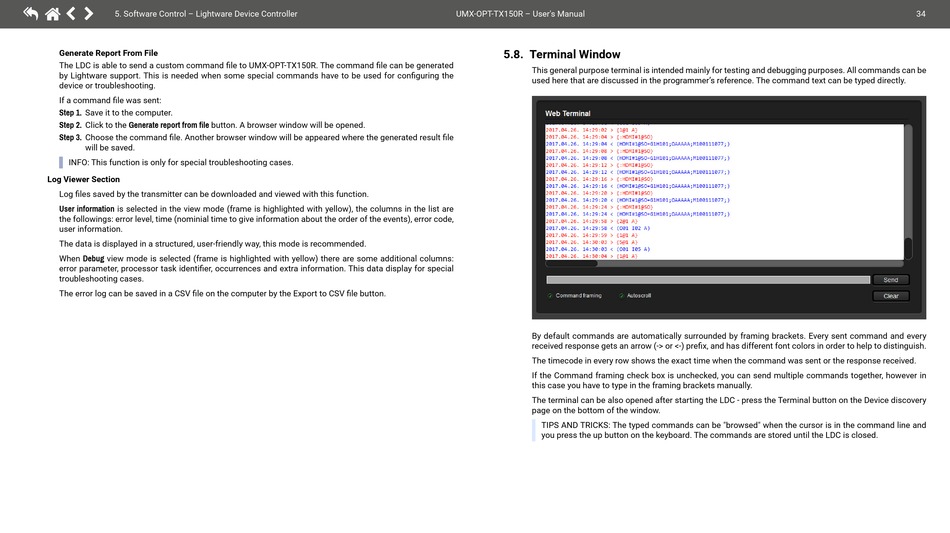

5.8. Terminal Window
This general purpose terminal is intended mainly for testing and debugging purposes. All commands can be
used here that are discussed in the programmer's reference. The command text can be typed directly.
By default commands are automatically surrounded by framing brackets. Every sent command and every
received response gets an arrow (-> or <-) prefix, and has different font colors in order to help to distinguish.
The timecode in every row shows the exact time when the command was sent or the response received.
If the Command framing check box is unchecked, you can send multiple commands together, however in
this case you have to type in the framing brackets manually.
The terminal can be also opened after starting the LDC - press the Terminal button on the Device discovery
page on the bottom of the window.
TIPS AND TRICKS: The typed commands can be "browsed" when the cursor is in the command line and
you press the up button on the keyboard. The commands are stored until the LDC is closed.
