2. Installation

2
I nstallation
The chapter is about the installation of the device and connecting to other
appliances, presenting also the mounting options and further assembly steps:

Mounting Options

Ý
Connecting Steps
Ý
Connection of Serial Devices
Ý
UMX-OPT-TX150R – User's Manual

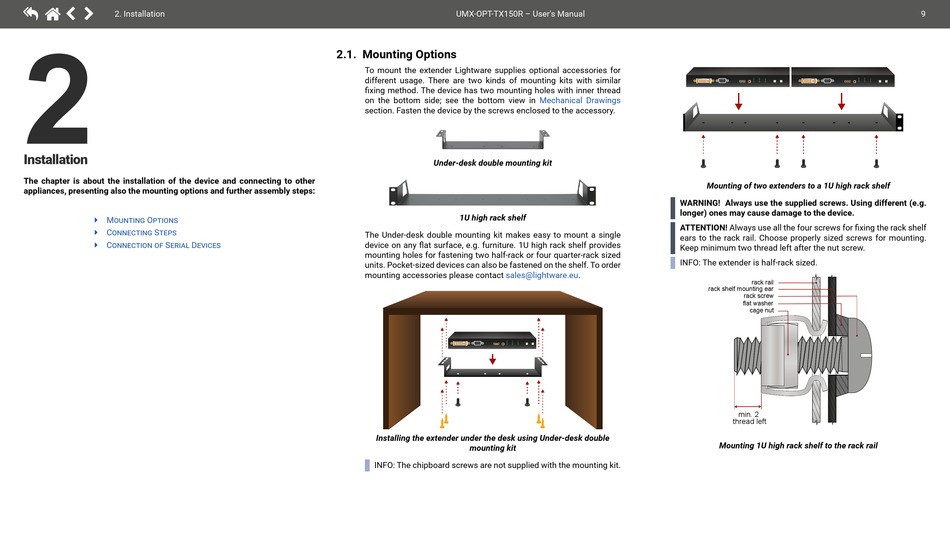

2.1. Mounting Options
To mount the extender Lightware supplies optional accessories for
different usage. There are two kinds of mounting kits with similar
fixing method. The device has two mounting holes with inner thread
on the bottom side; see the bottom view in
section. Fasten the device by the screws enclosed to the accessory.
Under-desk double mounting kit
1U high rack shelf
The Under-desk double mounting kit makes easy to mount a single
device on any flat surface, e.g. furniture. 1U high rack shelf provides
mounting holes for fastening two half-rack or four quarter-rack sized
units. Pocket-sized devices can also be fastened on the shelf. To order
mounting accessories please contact sales@lightware.eu.
Installing the extender under the desk using Under-desk double
mounting kit
INFO: The chipboard screws are not supplied with the mounting kit.
Mechanical Drawings
Mounting of two extenders to a 1U high rack shelf
WARNING! Always use the supplied screws. Using different (e.g.
longer) ones may cause damage to the device.
ATTENTION! Always use all the four screws for fixing the rack shelf
ears to the rack rail. Choose properly sized screws for mounting.
Keep minimum two thread left after the nut screw.
INFO: The extender is half-rack sized.
rack shelf mounting ear
rack rail
rack screw
flat washer
cage nut
min. 2
thread left
Mounting 1U high rack shelf to the rack rail
9
