10. Appendix

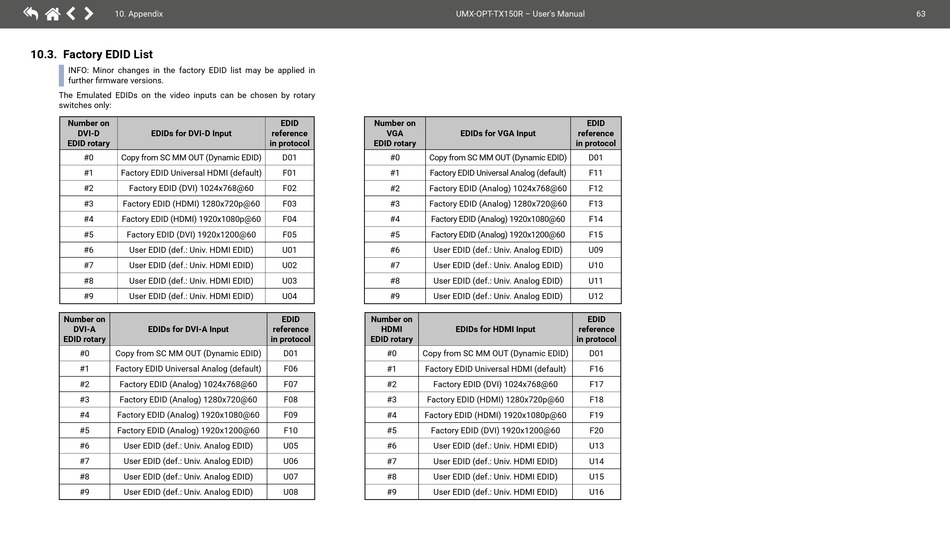

10.3. Factory EDID List
INFO: Minor changes in the factory EDID list may be applied in
further firmware versions.
The Emulated EDIDs on the video inputs can be chosen by rotary
switches only:
Number on
DVI-D
EDIDs for DVI-D Input
EDID rotary
#0
Copy from SC MM OUT (Dynamic EDID)
#1
Factory EDID Universal HDMI (default)
#2
Factory EDID (DVI) 1024x768@60
#3
Factory EDID (HDMI) 1280x720p@60
#4
Factory EDID (HDMI) 1920x1080p@60
#5
Factory EDID (DVI) 1920x1200@60
#6
User EDID (def.: Univ. HDMI EDID)
#7
User EDID (def.: Univ. HDMI EDID)
#8
User EDID (def.: Univ. HDMI EDID)
#9
User EDID (def.: Univ. HDMI EDID)
Number on
DVI-A
EDIDs for DVI-A Input
EDID rotary
#0
Copy from SC MM OUT (Dynamic EDID)
#1
Factory EDID Universal Analog (default)
#2
Factory EDID (Analog) 1024x768@60
#3
Factory EDID (Analog) 1280x720@60
#4
Factory EDID (Analog) 1920x1080@60
#5
Factory EDID (Analog) 1920x1200@60
#6
User EDID (def.: Univ. Analog EDID)
#7
User EDID (def.: Univ. Analog EDID)
#8
User EDID (def.: Univ. Analog EDID)
#9
User EDID (def.: Univ. Analog EDID)
EDID
Number on
reference
VGA
in protocol
EDID rotary
D01
#0
Copy from SC MM OUT (Dynamic EDID)
F01
#1
Factory EDID Universal Analog (default)
F02
#2
Factory EDID (Analog) 1024x768@60
F03
#3
Factory EDID (Analog) 1280x720@60
F04
#4
Factory EDID (Analog) 1920x1080@60
F05
#5
Factory EDID (Analog) 1920x1200@60
U01
#6
User EDID (def.: Univ. Analog EDID)
U02
#7
User EDID (def.: Univ. Analog EDID)
U03
#8
User EDID (def.: Univ. Analog EDID)
U04
#9
User EDID (def.: Univ. Analog EDID)
EDID
Number on
reference
HDMI
in protocol
EDID rotary
D01
#0
Copy from SC MM OUT (Dynamic EDID)
F06
#1
Factory EDID Universal HDMI (default)
F07
#2
Factory EDID (DVI) 1024x768@60
F08
#3
Factory EDID (HDMI) 1280x720p@60
F09
#4
Factory EDID (HDMI) 1920x1080p@60
F10
#5
Factory EDID (DVI) 1920x1200@60
U05
#6
User EDID (def.: Univ. HDMI EDID)
U06
#7
User EDID (def.: Univ. HDMI EDID)
U07
#8
User EDID (def.: Univ. HDMI EDID)
U08
#9
User EDID (def.: Univ. HDMI EDID)
UMX-OPT-TX150R – User's Manual
EDID
EDIDs for VGA Input
reference
in protocol
D01
F11
F12
F13
F14
F15
U09
U10
U11
U12
EDID
EDIDs for HDMI Input
reference
in protocol
D01
F16
F17
F18
F19
F20
U13
U14
U15
U16
63
