5. Software Control – Lightware Device Controller

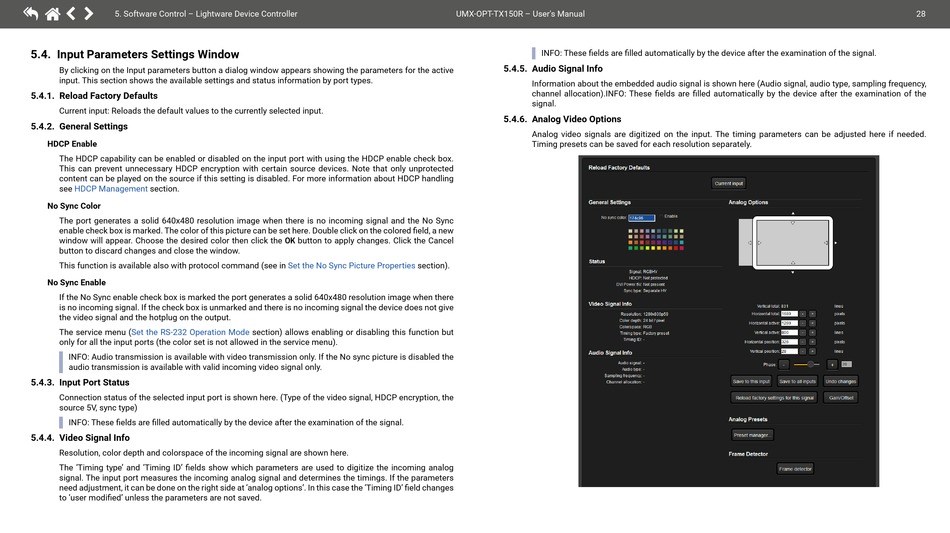

5.4. Input Parameters Settings Window
By clicking on the Input parameters button a dialog window appears showing the parameters for the active
input. This section shows the available settings and status information by port types.
5.4.1. Reload Factory Defaults
Current input: Reloads the default values to the currently selected input.
5.4.2. General Settings
HDCP Enable
The HDCP capability can be enabled or disabled on the input port with using the HDCP enable check box.
This can prevent unnecessary HDCP encryption with certain source devices. Note that only unprotected
content can be played on the source if this setting is disabled. For more information about HDCP handling
see HDCP Management section.
No Sync Color
The port generates a solid 640x480 resolution image when there is no incoming signal and the No Sync
enable check box is marked. The color of this picture can be set here. Double click on the colored field, a new
window will appear. Choose the desired color then click the OK button to apply changes. Click the Cancel
button to discard changes and close the window.
This function is available also with protocol command (see in
No Sync Enable
If the No Sync enable check box is marked the port generates a solid 640x480 resolution image when there
is no incoming signal. If the check box is unmarked and there is no incoming signal the device does not give
the video signal and the hotplug on the output.
The service menu (Set the RS-232 Operation Mode
only for all the input ports (the color set is not allowed in the service menu).
INFO: Audio transmission is available with video transmission only. If the No sync picture is disabled the
audio transmission is available with valid incoming video signal only.
5.4.3. Input Port Status
Connection status of the selected input port is shown here. (Type of the video signal, HDCP encryption, the
source 5V, sync type)
INFO: These fields are filled automatically by the device after the examination of the signal.
5.4.4. Video Signal Info
Resolution, color depth and colorspace of the incoming signal are shown here.
The 'Timing type' and 'Timing ID' fields show which parameters are used to digitize the incoming analog
signal. The input port measures the incoming analog signal and determines the timings. If the parameters
need adjustment, it can be done on the right side at 'analog options'. In this case the 'Timing ID' field changes
to 'user modified' unless the parameters are not saved.
Set the No Sync Picture Properties section).
section) allows enabling or disabling this function but
UMX-OPT-TX150R – User's Manual
INFO: These fields are filled automatically by the device after the examination of the signal.
5.4.5. Audio Signal Info
Information about the embedded audio signal is shown here (Audio signal, audio type, sampling frequency,
channel allocation).INFO: These fields are filled automatically by the device after the examination of the
signal.
5.4.6. Analog Video Options
Analog video signals are digitized on the input. The timing parameters can be adjusted here if needed.
Timing presets can be saved for each resolution separately.
