10. Appendix

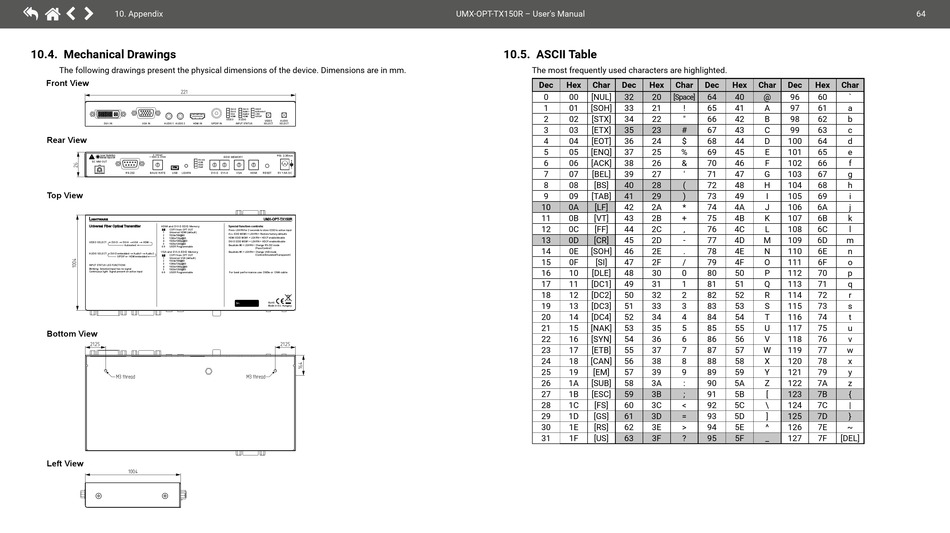

10.4. Mechanical Drawings
The following drawings present the physical dimensions of the device. Dimensions are in mm.
Front View
DVI-I IN VGA IN AUDIO 1 AUDIO 2
Rear View
0: SW set
Laser Radiation
1: 9600 | 4: 57600
850 nm Class 3R
SC MM OUT
RS-232 BAUD RATE USB
Top View
Universal Fiber Optical Transmitter
HDMI and DVI-D EDID Memory
0 COPY from OPT OUT
1 Universal HDMI (default)
2 1024x768@60
3 1280x720p@60
4 1920x1080p@60
VIDEO SELECT: DVI-D DVI-A VGA HDMI
5 1920x1200@60
Autoselect
6-9 USER Programmable
VGA and DVI-A EDID Memory
AUDIO SELECT: DVI-D embedded Audio1 Audio 2
0 COPY from OPT OUT
S/PDIF HDMI embedded
1 Universal VGA (default)
2 1024x768@60
3 1280x720p@60
INPUT STATUS LED FUNCTIONS
4 1920x1080p@60
Blinking: Selected input has no signal
5 1920x1200@60
Continuous light: Signal present on active input 6-9 USER Programmable
Bottom View
21.25
M3 thread
Left View
100.4
221
DVI-D DVI-D HDCP
DVI-A Audio 1 Autoselect
VGA Audio 2 LINK
HDMI HDMI S/PDIF
VIDEO AUDIO
VIDEO AUDIO
HDMI IN S/PDIF IN INPUT STATUS SELECT SELECT
PIN: 2.35mm
EDID MEMORY
RS-232
KVM
EDID
PWR
LEARN DVI-D DVI-A VGA HDMI RESET 5V 1.5A DC
UMX-OPT-TX150R
Special function controls:
Press LEARN for 2 seconds to store EDID to active input
ALL EDID MEM0 + LEARN = Restore factory defaults
HDMI EDID MEM1 + LEARN = HDCP enable/disable
DVI-D EDID MEM1 + LEARN = HDCP enable/disable
Baudrate #8 + LEARN = Change RS-232 mode
( Pass/Control )
Baudrate #9 + LEARN = Change USB mode
( Control/Emulated/Transparent )
For best performance use OM3e or OM4 cable
Sn: RoHS
Made in EU, Hungary
21.25
M3 thread
UMX-OPT-TX150R – User's Manual
10.5. ASCII Table
The most frequently used characters are highlighted.
Dec Hex Char Dec
0 00 [NUL] 32
1 01 [SOH] 33
2 02 [STX] 34
3 03 [ETX] 35
4 04 [EOT] 36
5 05 [ENQ] 37
6 06 [ACK] 38
7 07 [BEL] 39
8 08 [BS] 40
9 09 [TAB] 41
10 0A [LF] 42
11 0B [VT] 43
12 0C [FF] 44
13 0D [CR] 45
14 0E [SOH] 46
15 0F [SI] 47
16 10 [DLE] 48
17 11 [DC1] 49
18 12 [DC2] 50
19 13 [DC3] 51
20 14 [DC4] 52
21 15 [NAK] 53
22 16 [SYN] 54
23 17 [ETB] 55
24 18 [CAN] 56
25 19 [EM] 57
26 1A [SUB] 58
27 1B [ESC] 59
28 1C [FS] 60
29 1D [GS] 61
30 1E [RS] 62
31 1F [US] 63
Hex Char Dec Hex Char Dec Hex
20 [Space] 64 40 @ 96 60
21 ! 65 41 A 97 61
22 " 66 42 B 98 62
23 # 67 43 C 99 63
24 $ 68 44 D 100 64
25 % 69 45 E 101 65
26 & 70 46 F 102 66
27 ' 71 47 G 103 67
28 ( 72 48 H 104 68
29 ) 73 49 I 105 69
2A * 74 4A J 106 6A
2B + 75 4B K 107 6B
2C , 76 4C L 108 6C
2D - 77 4D M 109 6D
2E . 78 4E N 110 6E
2F / 79 4F O 111 6F
30 0 80 50 P 112 70
31 1 81 51 Q 113 71
32 2 82 52 R 114 72
33 3 83 53 S 115 73
34 4 84 54 T 116 74
35 5 85 55 U 117 75
36 6 86 56 V 118 76
37 7 87 57 W 119 77
38 8 88 58 X 120 78
39 9 89 59 Y 121 79
3A : 90 5A Z 122 7A
3B ; 91 5B [ 123 7B
3C < 92 5C \ 124 7C
3D = 93 5D ] 125 7D
3E > 94 5E ^ 126 7E
3F ? 95 5F _ 127 7F
64
Char
`
a
b
c
d
e
f
g
h
i
j
k
l
m
n
o
p
q
r
s
t
u
v
w
x
y
z
{
|
}
~
[DEL]
