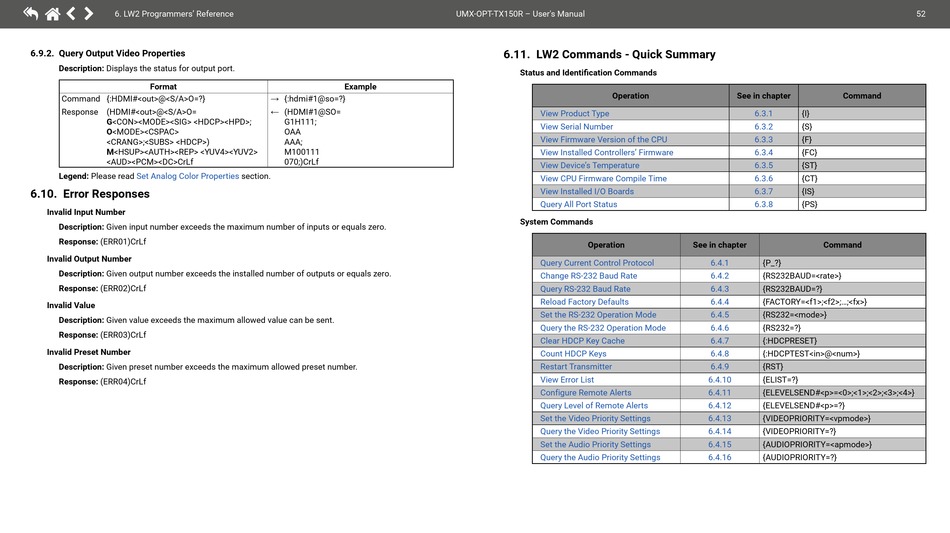

6. LW2 Programmers' Reference
6.9.2. Query Output Video Properties
Description: Displays the status for output port.
Format
Command {:HDMI#<out>@<S/A>O=?}
Response (HDMI#<out>@<S/A>O=
G<CON><MODE><SIG> <HDCP><HPD>;
O<MODE><CSPAC>
<CRANG>;<SUBS> <HDCP>)
M<HSUP><AUTH><REP> <YUV4><YUV2>
<AUD><PCM><DC>CrLf
Legend: Please read Set Analog Color Properties
6.10. Error Responses
Invalid Input Number
Description: Given input number exceeds the maximum number of inputs or equals zero.
Response: (ERR01)CrLf
Invalid Output Number
Description: Given output number exceeds the installed number of outputs or equals zero.
Response: (ERR02)CrLf
Invalid Value
Description: Given value exceeds the maximum allowed value can be sent.
Response: (ERR03)CrLf
Invalid Preset Number
Description: Given preset number exceeds the maximum allowed preset number.
Response: (ERR04)CrLf
Example
→ {:hdmi#1@so=?}
← (HDMI#1@SO=
G1H111;
OAA
AAA;
M100111
070;)CrLf
section.
UMX-OPT-TX150R – User's Manual
6.11. LW2 Commands - Quick Summary
Status and Identification Commands
Operation
View Product Type
View Serial Number
View Firmware Version of the CPU
View Installed Controllers' Firmware
View Device's Temperature
View CPU Firmware Compile Time
View Installed I/O Boards
Query All Port Status
System Commands
Operation
Query Current Control Protocol
Change RS-232 Baud Rate
Query RS-232 Baud Rate
Reload Factory Defaults
Set the RS-232 Operation Mode
Query the RS-232 Operation Mode
Clear HDCP Key Cache
Count HDCP Keys
Restart Transmitter
View Error List
Configure Remote Alerts
Query Level of Remote Alerts
Set the Video Priority Settings
Query the Video Priority Settings
Set the Audio Priority Settings
Query the Audio Priority Settings
See in chapter Command
6.3.1 {I}
6.3.2 {S}
6.3.3 {F}
6.3.4 {FC}
6.3.5 {ST}
6.3.6 {CT}
6.3.7 {IS}
6.3.8 {PS}
See in chapter Command
6.4.1 {P_?}
6.4.2 {RS232BAUD=<rate>}
6.4.3 {RS232BAUD=?}
6.4.4 {FACTORY=<f1>;<f2>;...;<fx>}
6.4.5 {RS232=<mode>}
6.4.6 {RS232=?}
6.4.7 {:HDCPRESET}
6.4.8 {:HDCPTEST<in>@<num>}
6.4.9 {RST}
6.4.10 {ELIST=?}
6.4.11 {ELEVELSEND#<p>=<0>;<1>;<2>;<3>;<4>}
6.4.12 {ELEVELSEND#<p>=?}
6.4.13 {VIDEOPRIORITY=<vpmode>}
6.4.14 {VIDEOPRIORITY=?}
6.4.15 {AUDIOPRIORITY=<apmode>}
6.4.16 {AUDIOPRIORITY=?}
