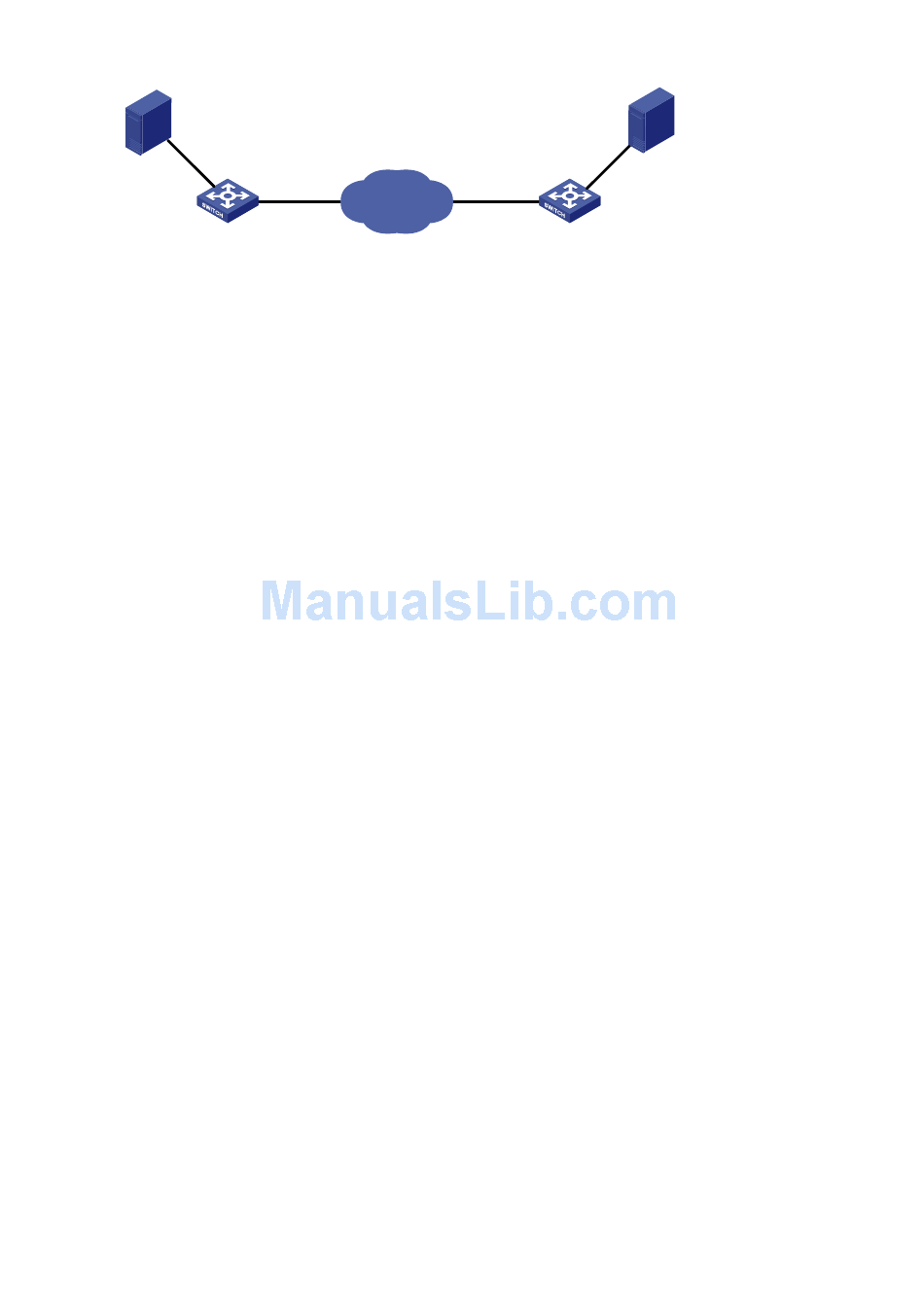

Figure 100 Network diagram
CA server
Configuration procedure
1.
Configure Switch A:
# Configure an IP address for VLAN-interface 1.
<SwitchA> system-view
[SwitchA] interface vlan-interface 1
[SwitchA-vlan-interface1] ip address 1.1.1.1 255.255.255.0
[SwitchA-vlan-interface1] quit
# Configure ACL 3101 to identify traffic between Switch A and Switch B.
[SwitchA] acl advanced 3101
[SwitchA-acl-ipv4-adv-3101] rule 0 permit ip source 1.1.1.1 0 destination 2.2.2.2 0
[SwitchA-acl-ipv4-adv-3101] quit
# Create an IPsec transform set named tran1.
[SwitchA] ipsec transform-set tran1
# Set the packet encapsulation mode to tunnel.
[SwitchA-ipsec-transform-set-tran1] encapsulation-mode tunnel
# Use the ESP protocol for the IPsec transform set.
[SwitchA-ipsec-transform-set-tran1] protocol esp
# Specify the encryption and authentication algorithms.
[SwitchA-ipsec-transform-set-tran1] esp encryption-algorithm des-cbc
[SwitchA-ipsec-transform-set-tran1] esp authentication-algorithm sha1
[SwitchA-ipsec-transform-set-tran1] quit
# Create a PKI entity named entity1.
[SwitchA] pki entity entity1
# Set the common name to switcha for the PKI entity.
[SwitchA-pki-entity-entity1] common-name switcha
[SwitchA-pki-entity-entity1] quit
# Create a PKI domain named domain1.
[SwitchA] pki domain domain1
# Set the certificate request mode to auto and set the password to 123 for certificate revocation.
[SwitchA-pki-domain-domain1] certificate request mode auto password simple 123
# Set an MD5 fingerprint for verifying the validity of the CA root certificate.
[SwitchA-pki-domain-domain1] root-certificate fingerprint md5
50c7a2d282ea710a449eede6c56b102e
# Specify the trusted CA 8088.
[SwitchA-pki-domain-domain1] ca identifier 8088
# Specify the URL of the registration server for certificate request through the SCEP protocol.
This example uses http://192.168.222.1:446/eadbf9af4f2c4641e685f7a6021e7b298373feb7.
Vlan-int1
1.1.1.1/16
Internet
Switch A
CA server
Vlan-int1
2.2.2.2/16
Switch B
