Figure 7-4 Removing A Fan From The Rear Assembly - Silicon Graphics ICE X User Manual

7: Maintenance Procedures
100
Use the following steps and illustrations to replace an enclosure fan:
1. Using the #1 Phillips screwdriver, undo the (captive) screw (located in the middle of the
blower assembly handle). The handle has a notch for the screw access, see Figure 7-4.
2. Grasp the blower assembly handle and pull the assembly straight out.
A

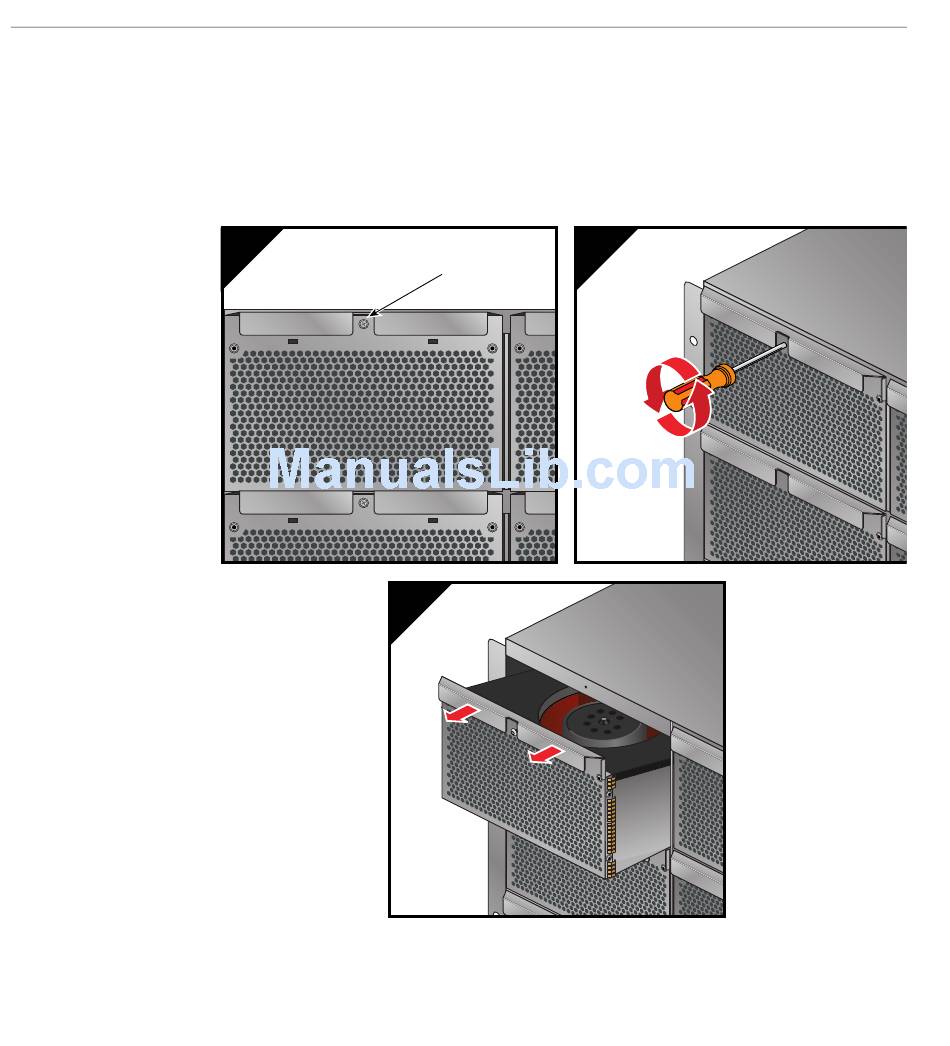

Figure 7-4 Removing a Fan From the Rear Assembly
Screw
C
B
Loosen screw
