5: SGI ICE X Administration/Leader Servers
78
2 1
!

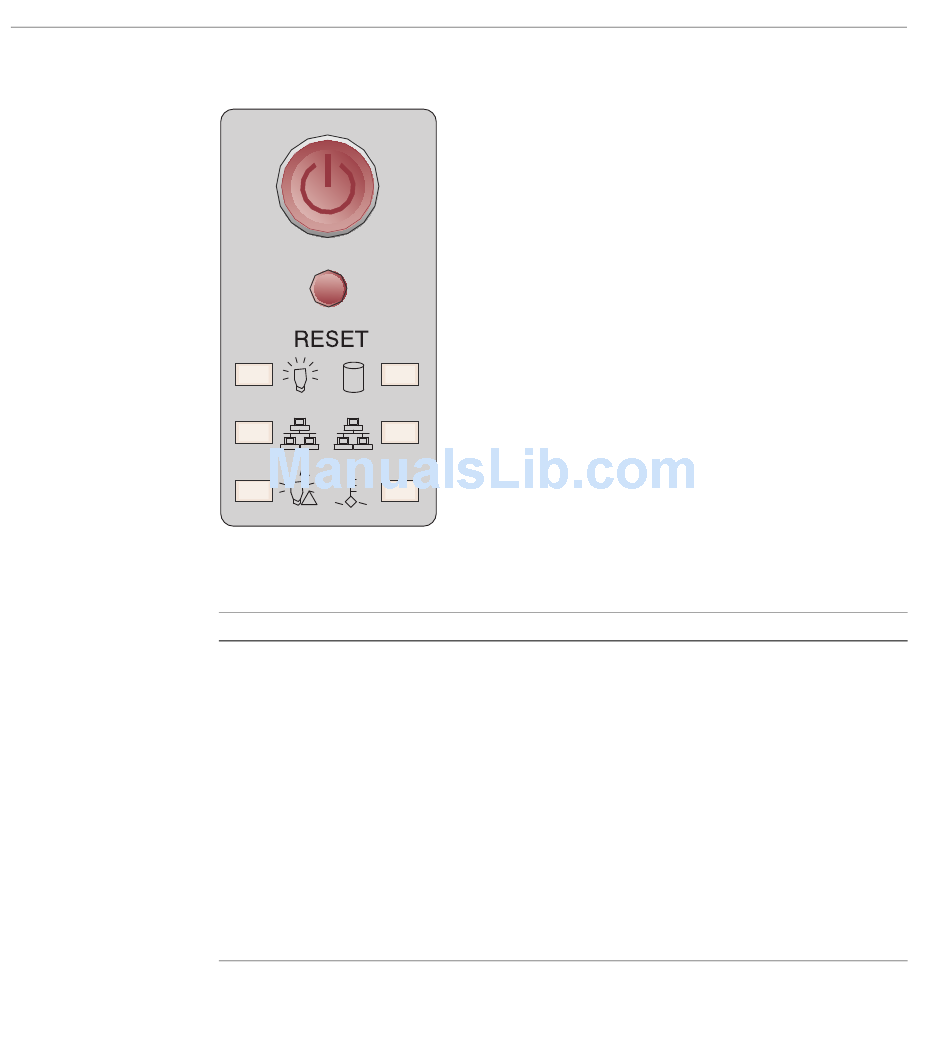

Figure 5-9 SGI Rackable C2110G-RP5-P 2U Service Node Control Panel Diagram
Table 5-3 C2110G-RP5-P 2U Server Control Panel Functions (listed top to bottom)
Functional feature
Power button
Reset button
Power LED
Disk activity LED
NIC 1 Activity LED
NIC 2 Activity LED
Power Fail LED
Universal information LED This multi-color LED blinks red quickly to indicate a fan failure and slowly
Functional description
button applies/ removes power from the power supplies to
Pressing the
the server. Turning off power with this button removes main power
but keeps standby power supplied to the system.
Pressing this button reboots the server.
Indicates power is being supplied to the server's power supply units.
Indicates drive activity when flashing.
Indicates network activity on LAN 1 when flashing green.
Indicates network activity on LAN 2 when flashing green.
The power fail LED lights when a power supply module has failed.
for a power failure. A continuous solid red LED means an overheating CPU.
The LED glows/blinks solid blue when used for UID (Unit Identifier).
