1: Operation Procedures
6
4. Make sure that all PDU circuit breaker switches (see the examples in Figure 1-4, and
Figure 1-5 on page 7) are turned on to provide power when the system is booted up.
Power
source

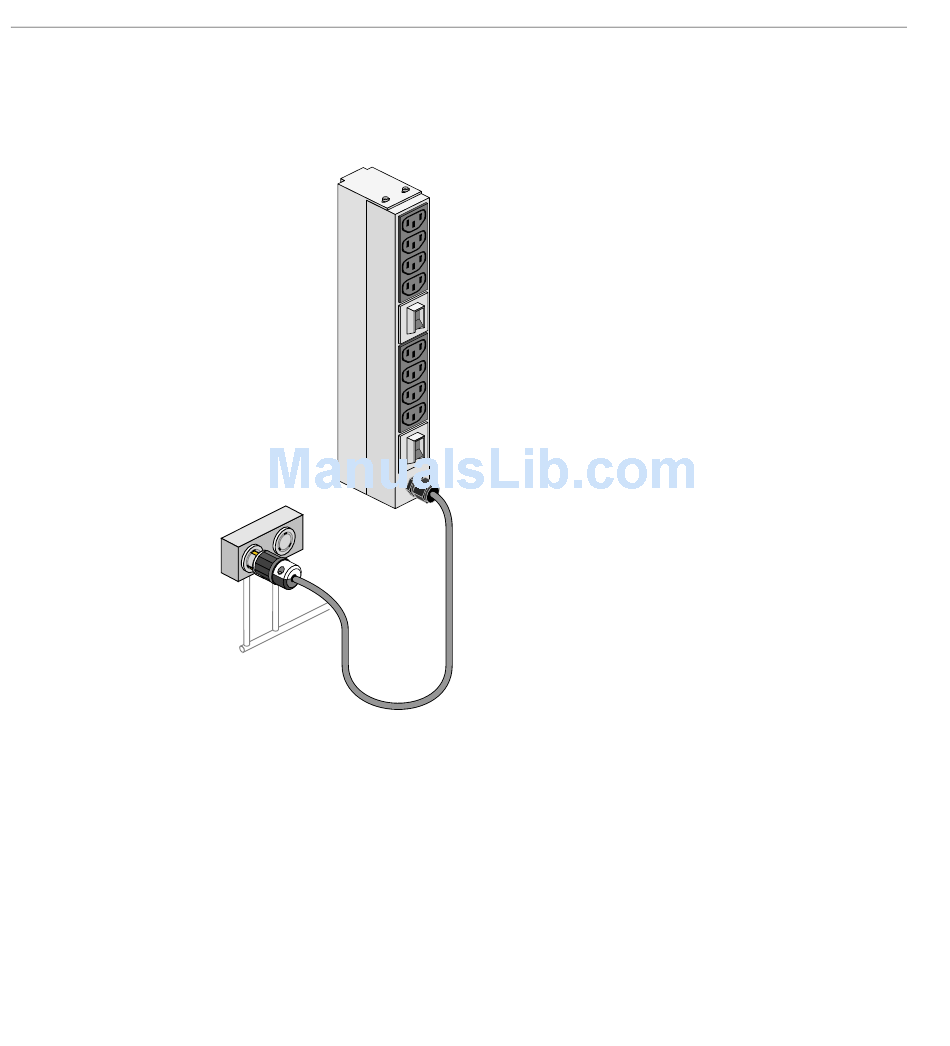

Figure 1-4 Eight-Outlet Single-Phase PDU Example
Figure 1-5 on page 7 shows an example of the three-phase PDUs.
Power
distribution
unit (PDU)
