SGI UV 20 2U Service Node

007-5806-004
The 2U-high SGI UV 20 server is available as a four-processor ICE X service node. This 2U
service node uses four Intel E5-4600 Xeon processors and supports up to 48 DIMM memory
modules plus multiple I/O modules and storage adapters. Figure 5-10 shows an example front
view of the SGI UV 20 service node and Figure 5-11 shows and describes the unit's rear panel
components.

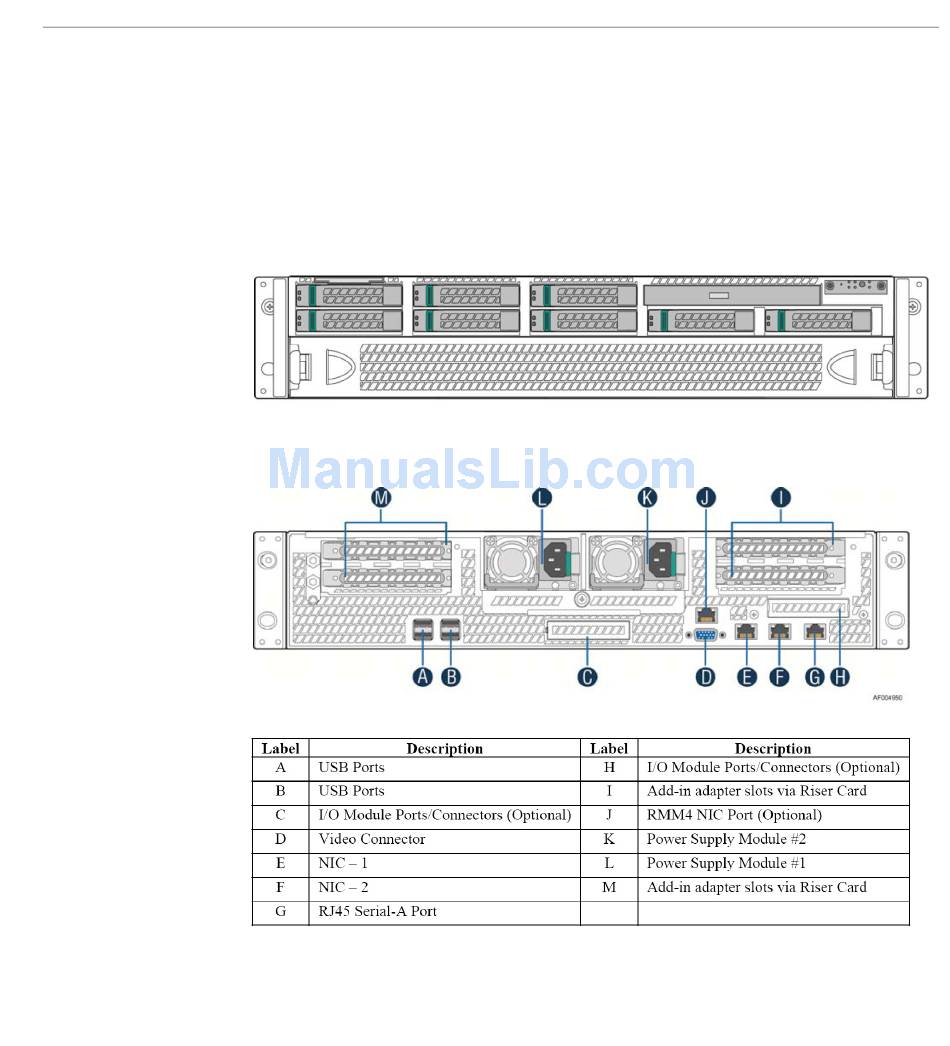

Figure 5-10 SGI UV 20 Service Node Front Panel Example
Figure 5-11
SGI UV 20 Service Node Rear Panel and Component Descriptions
2U Service Nodes
79
