C2110G-RP5-P 2U Service Node

Main
power
System
reset
2 1
!
System
LEDs
007-5806-004
Figure 5-8 shows front and rear views of the SGI Rackable C2110G-RP5-P 2U service node. Note
that this server uses up to eight DIMM memory cards, (four per processor). Separate QPI link pairs
connect the two processors and the I/O hub in a network on the server's motherboard. The server
has internal riser cards that support up to six optional GPU cards and also one external (non-GPU)
PCIe card at the rear of the chassis. Available numbers of GPU and PCIe option cards may be
limited by ambient temperature restrictions. Check with your SGI sales or service representative
for additional information on GPU configurations. See the SGI Rackable C2110G-RP5-P System
User Guide (P/N 007-6343-00x) for more detailed information on this 2U service node.

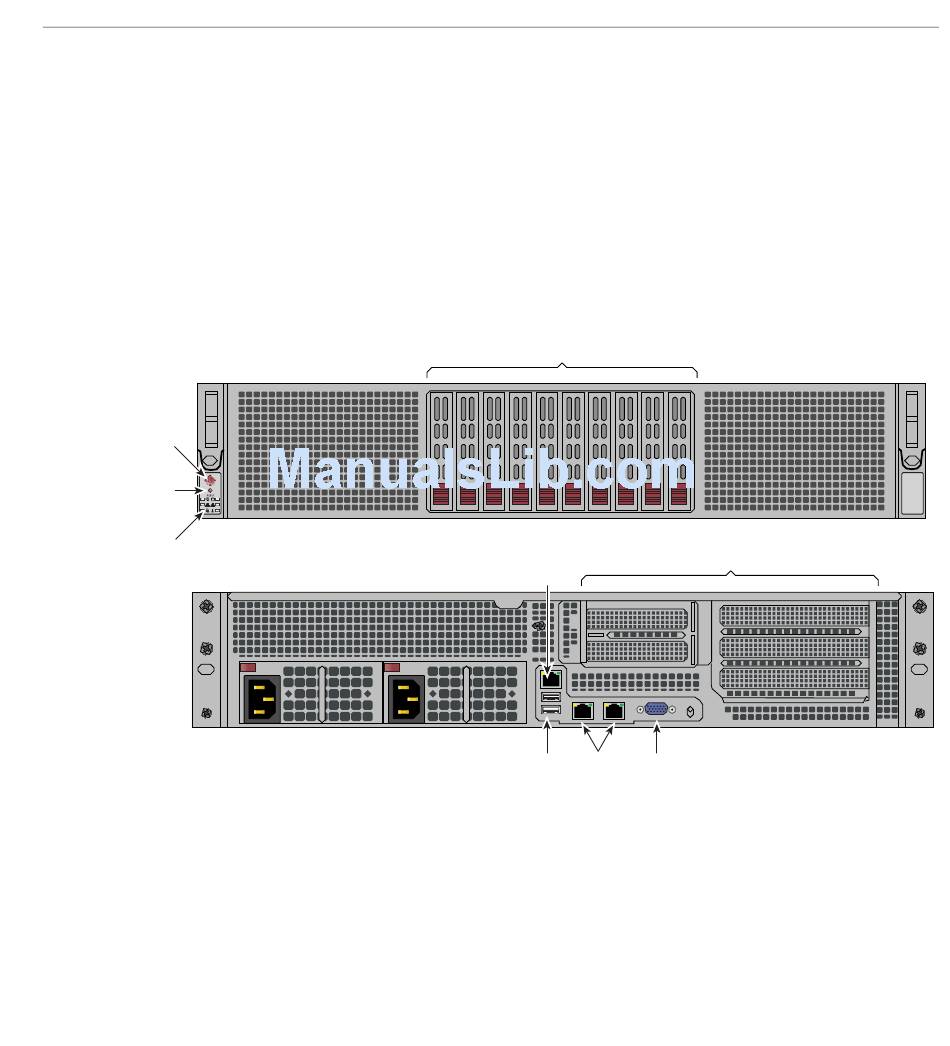

Figure 5-8 Front and Rear Views of the SGI C2110G-RP5-P 2U Service Node
The control panel on the C2110G-RP5-P service node provides you with system monitoring and
control. A main power button and a system reset button are located at the top of the panel. LEDs
that indicate system power is on, HDD activity, network activity, power supply status and a system
overheat/fan-fail/ UID LED are included. The C2110-RP5-P 2U server's control panel features are
shown in Figure 5-9 and described in Table 5-3 on page 78.
Ten disk drive bays
IPMI PCI expansion slots
LAN
USB Ethernet VGA
ports ports port
2U Service Nodes
77
