Replacing a System Fan (Blower)

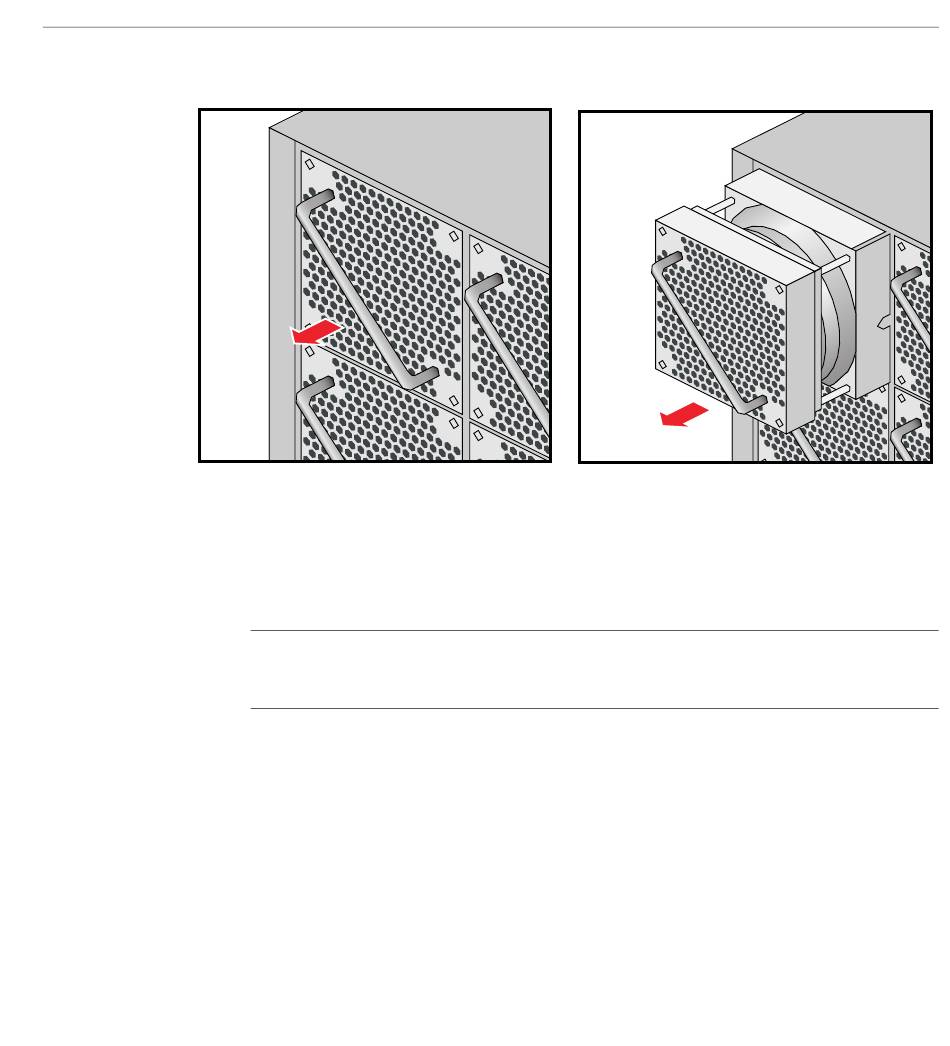

Figure 6-4 Removing a Fan From the Rear Assembly
3. Slide a new blower assembly completely into the open slot until the fan-interconnect
engages and the new unit is flush with the rear of the assembly, see Figure 6-5 on page 72.
4. Confirm that the new fan is operational and close the rack's rear door.
Note: If you disconnected the AC power to the rear fan assembly prior to the replacement
procedure, all the fans will come on and run at top speed when power is reapplied. The speeds will
readjust when normal communication with the blade enclosure CMC is fully established.
