Batch Server Node; I/O Gateway Node; Figure 3-7 2U Service Node Front And Rear Panel Example - Silicon Graphics ICE X User Manual

Main
power
System
reset
2 1
!
System
LEDs

Batch Server Node

I/O Gateway Node

007-5806-004

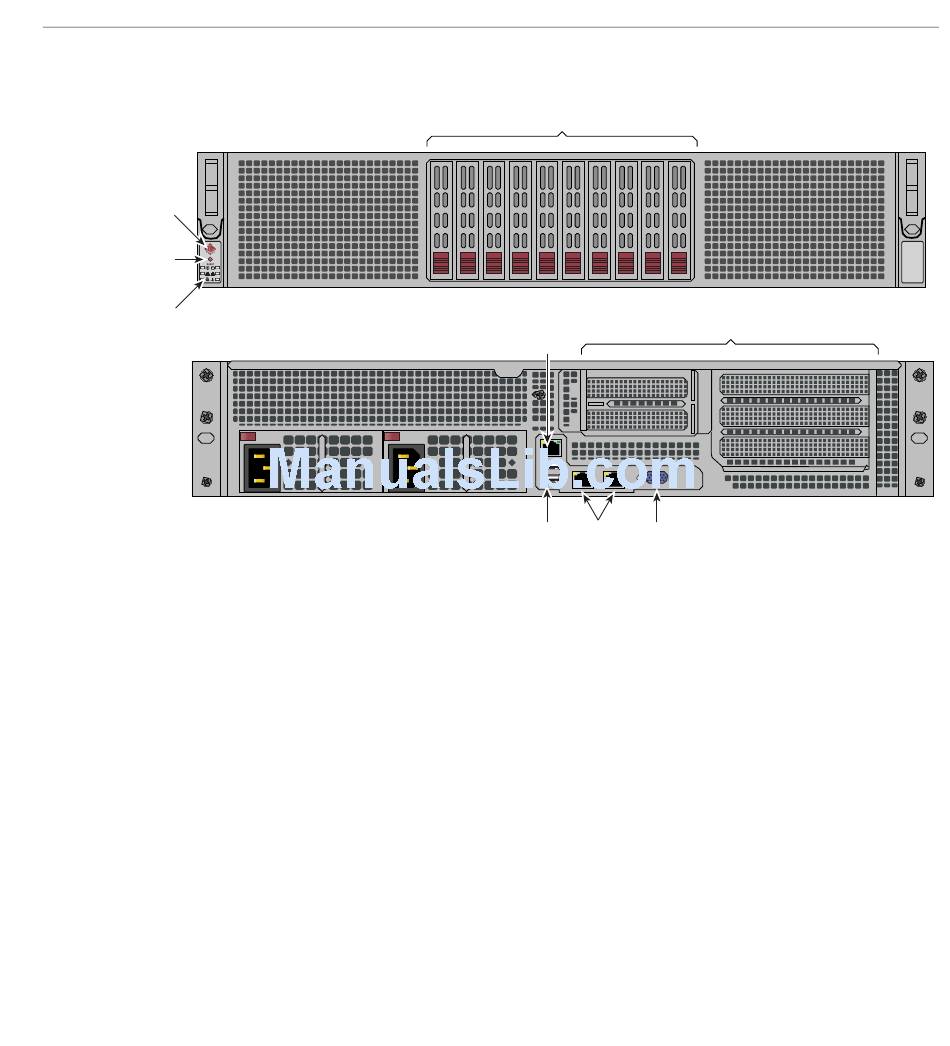

Figure 3-7 2U Service Node Front and Rear Panel Example
The batch server function may be combined with login or other service nodes for many
configurations. Additional batch nodes can be added as the total number of user logins increase.
Users login to a batch server in order to run batch scheduler portable-batch system/load-sharing
facility (PBS/LSF) programs. Users login or connect to this node to submit these jobs to the
system compute nodes.
The I/O gateway server function may be combined with login or other service nodes for many
configurations. If required, the I/O gateway server function can be hosted on an optional 1U or 2U
stand-alone server within the ICE X system.
One or more I/O gateway nodes are supported per system, based on system size and functional
requirement. The node may be separated from login and/or batch nodes to scale to large
System Features and Major Components
Ten disk drive bays
IPMI PCI expansion slots
LAN
USB Ethernet VGA
ports ports port
