Front-Panel Controls

Layout and Usage

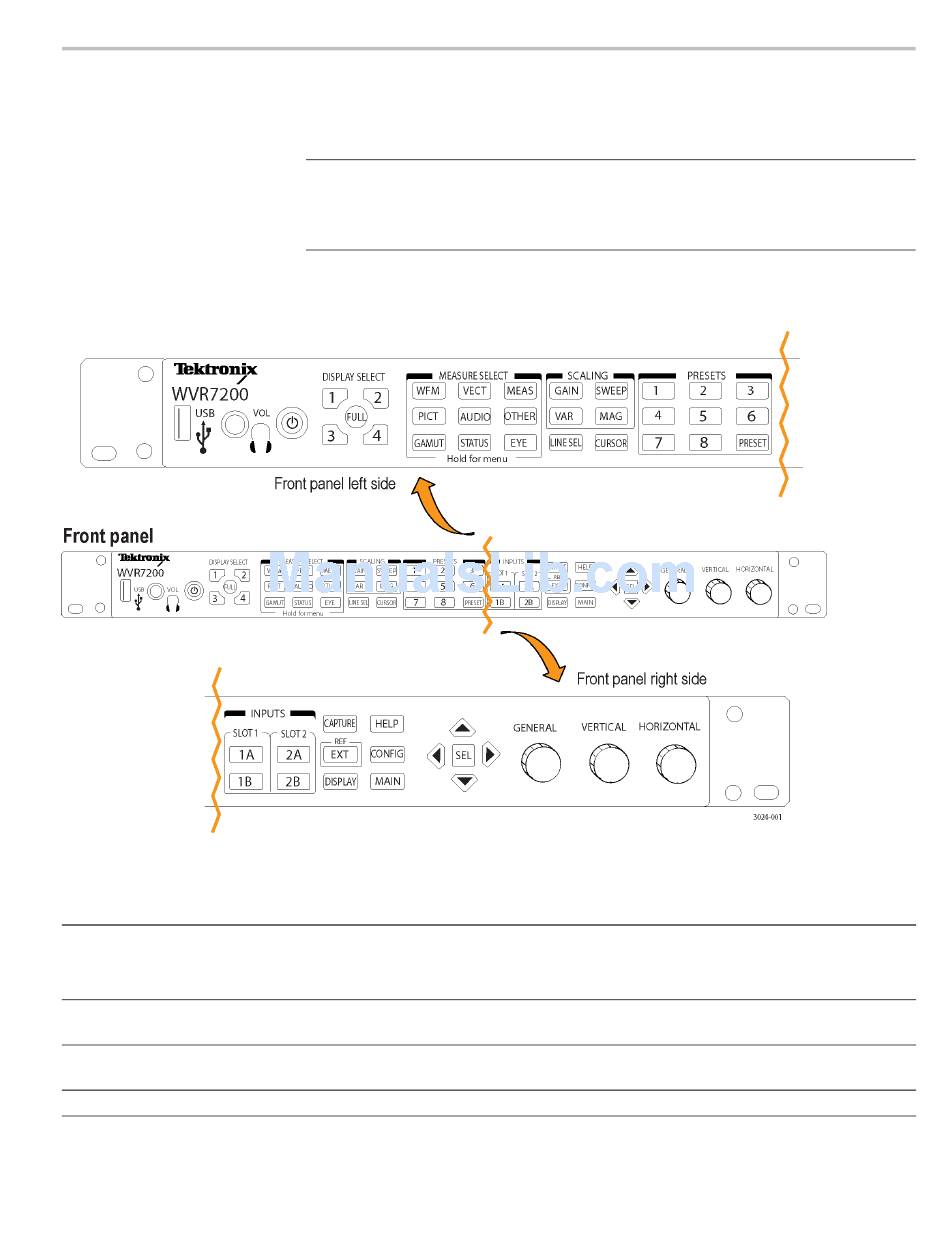

Figure 4: Front-panel
Control Element or Group
Power button
DISPLAY SELECT buttons
MEASURE SELECT buttons
WFM
WVR7200 Installation and Safety Instructions
NOTE.
Some of the controls that this section covers are option dependant. For a
list of the options that are installed on your instrument, press the CONFIG button.
In the configuration menu, select the Utilities submenu. The View Instruments
Options entry lists the options installed on your instrument.
The front-panel elements shown below are described in the table that follows.
Description
Press to power on or off. The power button also indicates when the instrument is detecting a
fault (such as a fan failure) when it is red.
NOTE.
Red light shows briefly during start-up.
Each numbered display select button corresponds to one of the four tiles of the display screen;
the FULL button toggles the display from full-screen view to four-tile view
WFM, PICT, GAMUT, VECT, AUDIO, STATUS, MEAS, OTHER, and EYE to select
measurements
Display of video waveform
