Installing in a Video System

For Monitoring the Video
Bit Stream of a Serial
Receiver

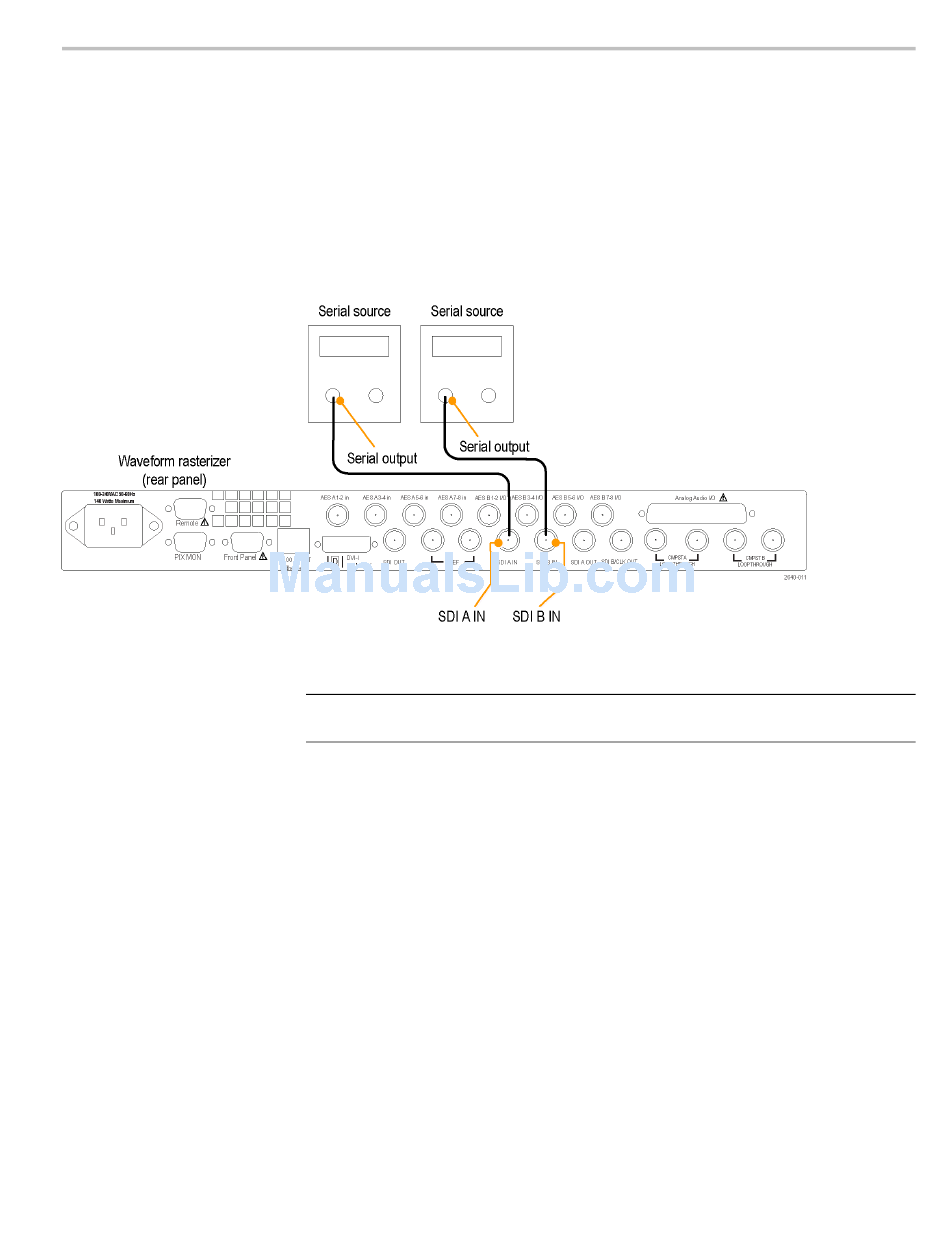

Figure 2: Options PHY3 and 3G
WVR7200 Installation and Safety Instructions
The instrument can operate almost anywhere in the distribution system. The
following diagrams for serial digital systems and for the analog composite inputs.
Route the incoming serial signal into one of the instrument SDI inputs.
NOTE.
See the Specifications and Performance Verification manual on the
Product Documentation CD for maximum-allowed cable lengths.
Basic Installation Procedure
