Rear-Panel Connectors

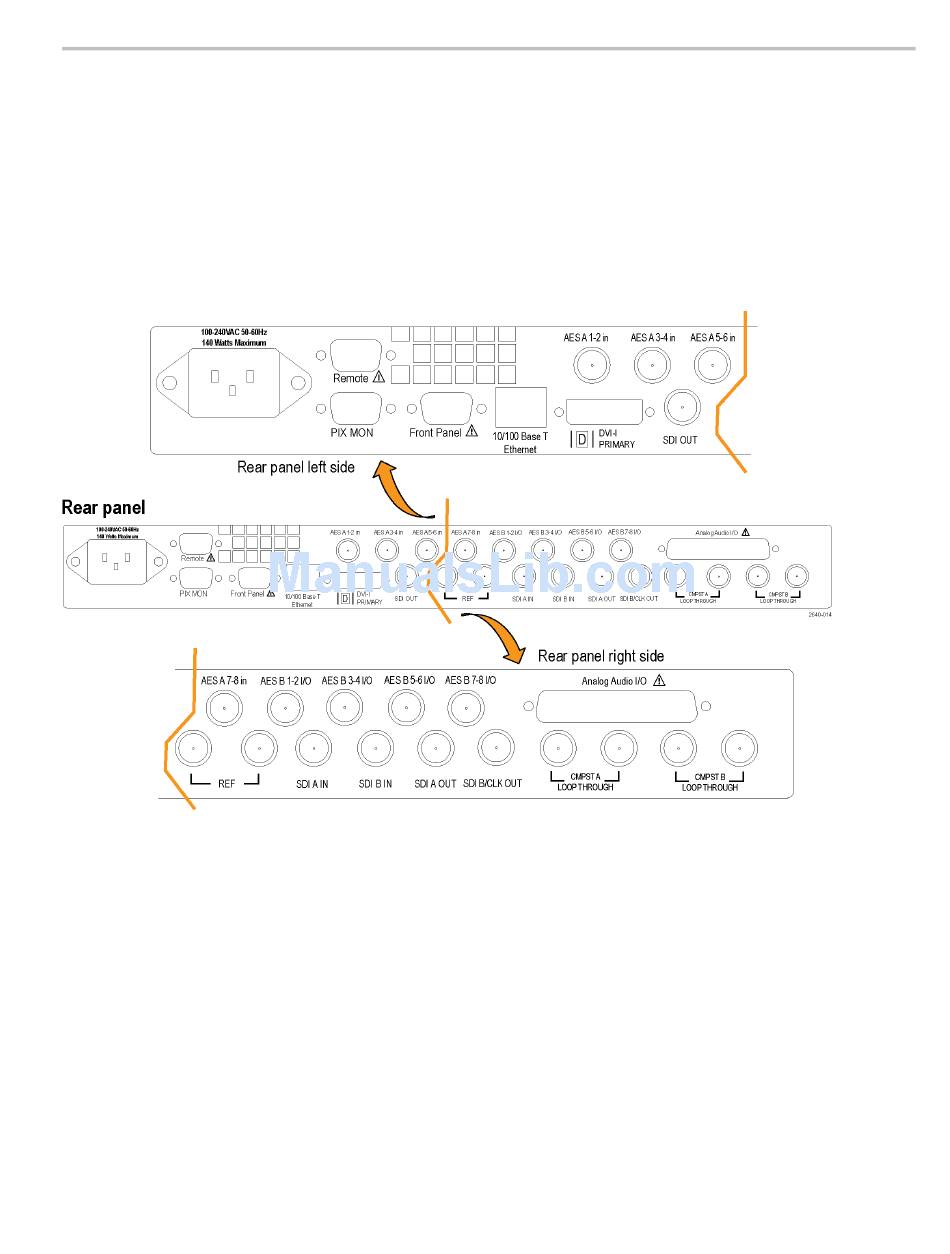

Figure 1: Rear-panel
WVR7200 Installation and Safety Instructions
The following figure shows the rear-panel with optional connectors. The
rear-panel inputs are arranged in Slot 1 or Slot 2. Although these slots are not
labeled as such on the rear-panel, the center section corresponds to the Slot 1 Input
buttons on the front panel and usually contains the SDI or EYE inputs. The right
section of the rear panel corresponds to the Slot 2 Input buttons on the front panel,
and will contain the composite inputs, if present. (See Figure 4 on page 23.)
Rear-Panel Connectors
9
