Controls and connectors

Front panel controls and connectors

Table 4: Common front panel controls and connectors

Connector
1
Display
2
Power switch
3
Control knob
4
USB
5
Ground
connector
BSX Series Installation & Safety Instructions
This section provides a high-level description of the control and connectors on
the instrument.
The following figure and table describe common front panel controls and
connectors.

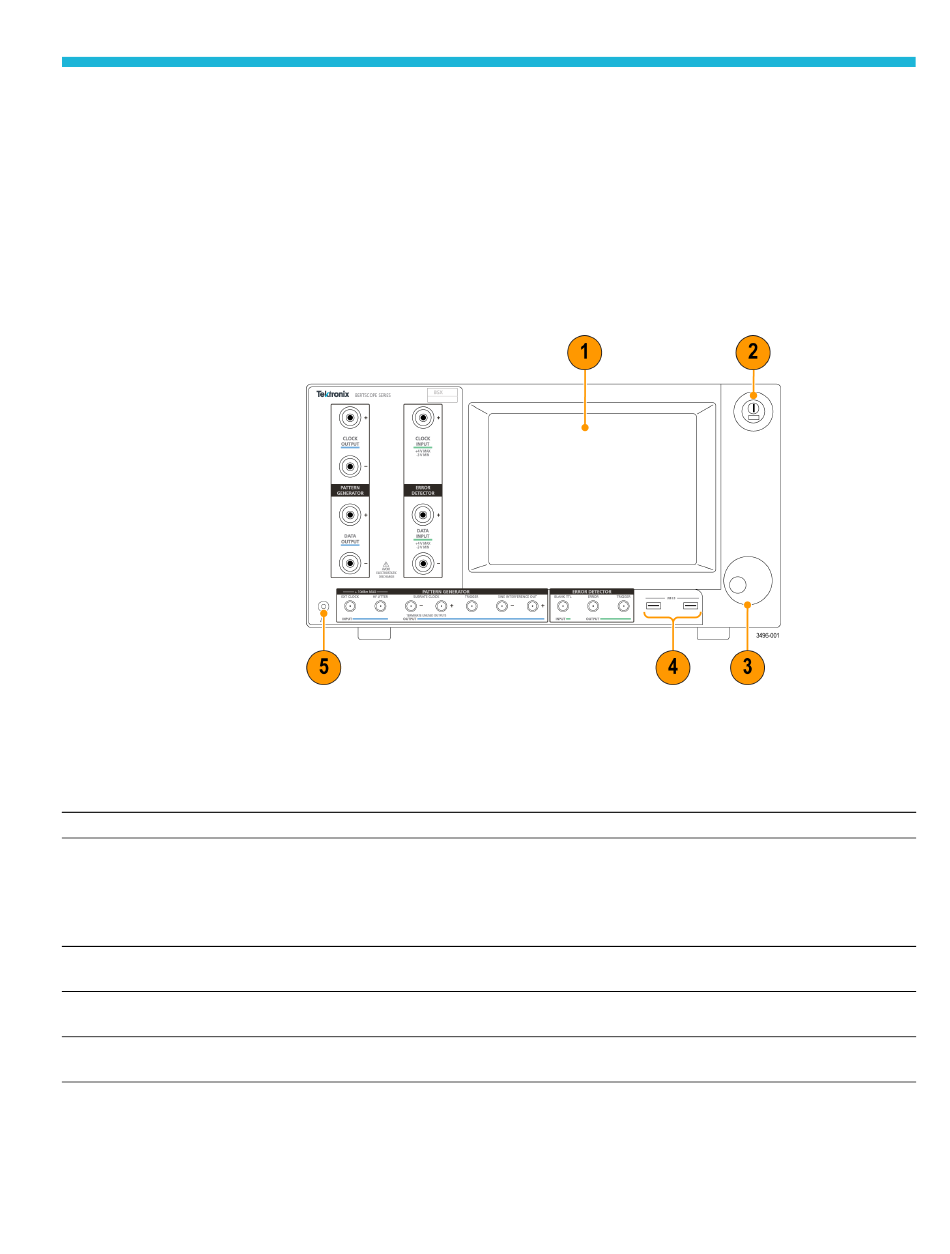

Figure 1: Front panel

Description
TFT touchscreen display to set up, control, and view information in the menus.
Activates the power supply to provide power to the primary circuits in the instrument. The switch has a
green light when power is turned on.
The primary power control circuitry is always live whenever the power cord is connected to the
instrument. To completely disconnect power from the instrument, disconnect the power cord at
the rear of the instrument.
Use the multifunction knob in stead of directly entering values to control items in the display such as
moving the cursor, scaling inputs, changing stress or amplitude levels, and scrolling data.
Use the USB connectors for connecting USB devices such as a mouse, keyboard, or USB flash drive.
Four additional USB connectors are located on the back of the instrument.
Use this connector to connect a common ground to other instruments.
