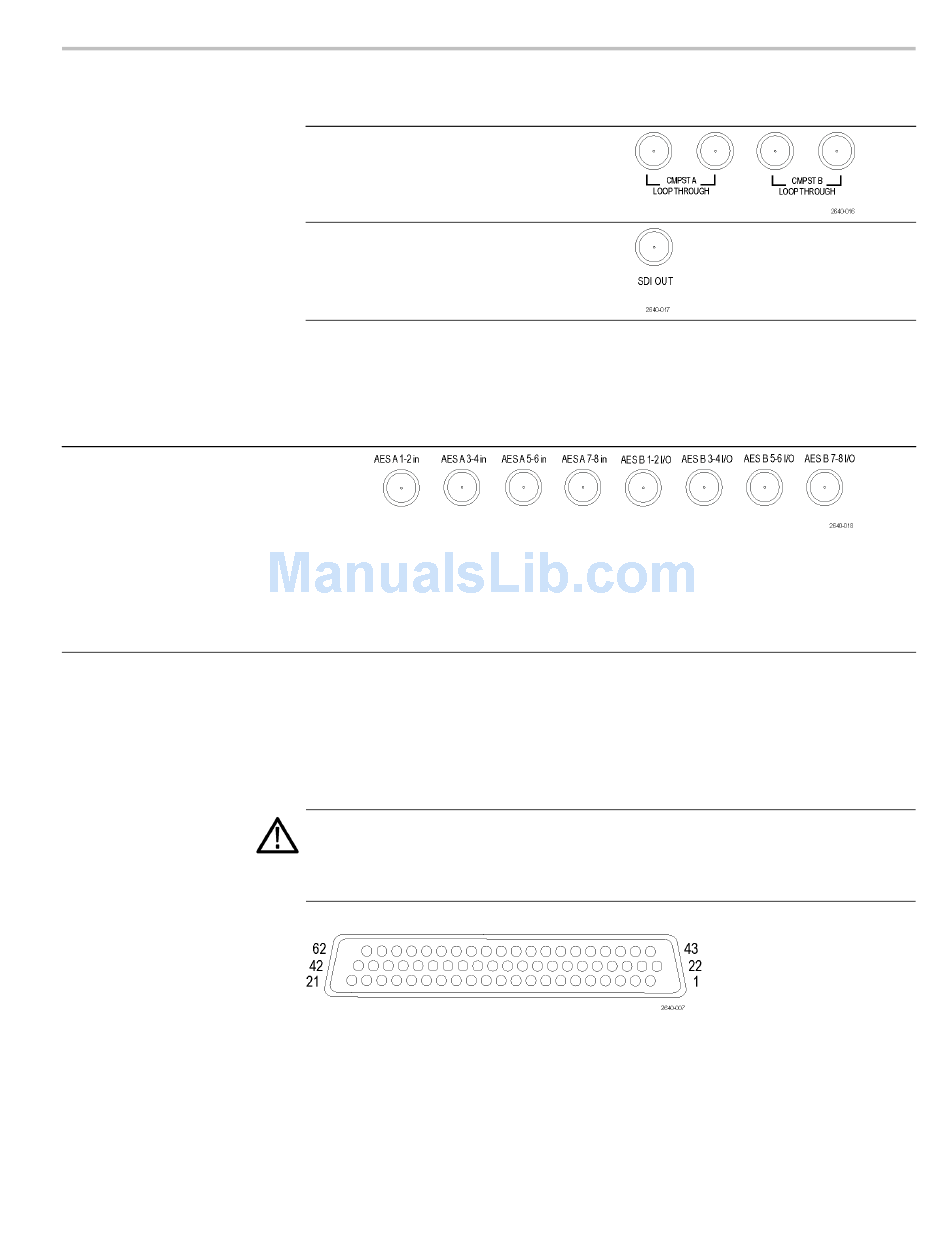

AES A/B Connectors
Inputs
These BNC connectors support AES audio
inputs.
Input A for AES channels 1 and 2
Input A for AES channels 3 and 4
Input A for AES channels 5 and 6
Input A for AES channels 7 and 8
Default input B for AES channels 1 and 2
Default input B for AES channels 3 and 4
Default input B for AES channels 5 and 6
Default input B for AES channels 7 and 8
1
The AES B connectors can be configured to output embedded audio channels, decoded Dolby, or the AES A inputs.
Analog Input/Output
Connector
WVR7200 Installation and Safety Instructions
Inputs
CMPST A. The composite A analog input.
CMPST B. The composite B analog input.
SDI OUT. Can be selected to output Pixmon,
Loop Out, or Test Signal 1 .
1 Test Signal is available for Option GEN only.
Connectors
Options AD and DPE
1
1
1
1
The Analog I/O connector is used to receive and send analog signals. The Analog
I/O connector is a 62-pin, D-subminiature connector. Pin assignments and pin
names are listed in the following figure and table.
CAUTION. Use care when connecting the Analog Audio Output. Refer to the
instrument specifications to ensure that the Audio Load and Output Power meet
specifications. Exceeding Analog Audio Output Power may result in damage
to the instrument.
Option AD Input./Output connector
Rear-Panel Connectors
Connectors
