Rear-Panel Connectors
REMOTE Connector Pin
Assignment
Characteristic
Connector Pin Assignments
14
14 Vertical Sync
15 Not Connected

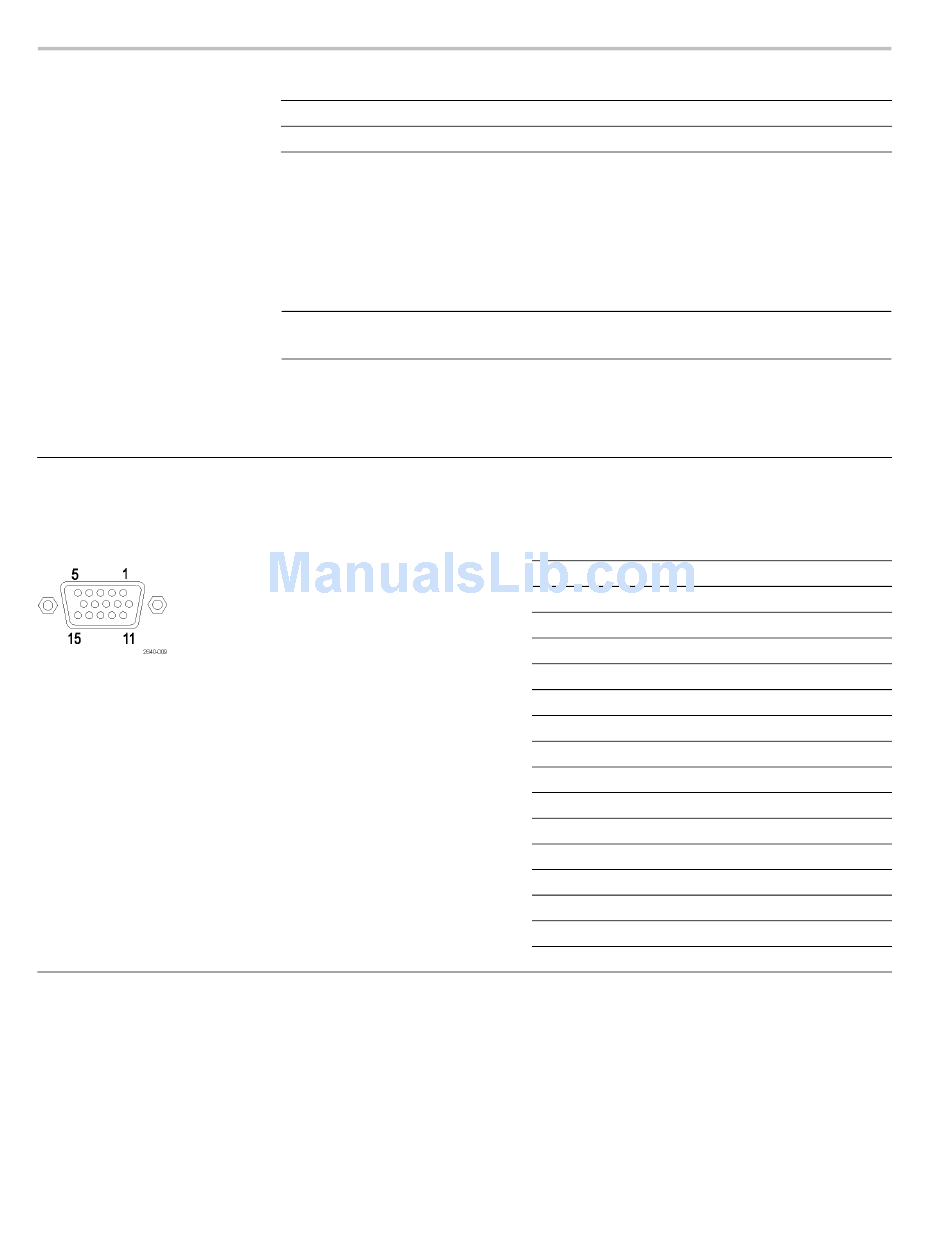

The REMOTE connector interface uses ground closures for remote control and
indicating to external equipment when alarms have occurred. The input of LTC is
through the REMOTE connector. The REMOTE connector is a 15-pin D-type
connector with socket contacts
NOTE.
For more information on Preset recall, refer to the Technical Reference
manual on the Product Documentation CD that was shipped with your instrument.
Remote connector preset functions.
Pin out
1 GND (In)
2 Reserved (I/O)
3 Reserved (I/O)
4 Reserved (In)
5 Reserved (In)
6 GND (In)
7 Time Code Positive (LTC In)
8 Time Code Negative (LTC In)
9 Ground Closure (Alarm Out)
10 Preset 1 (In)
11 Preset 2 (In)
12 Preset 3 (In)
13 Preset 4 (In)
14 Preset 5 (In)
15 Preset 6 (In)
Preset functions
Hex Binary Direct
Pins 15, mode
14, 13, selection
12, 11,
10
none
F 111111
E XX1110 Preset 1
D XX1101 Preset 2
C XX1100
B XX1011 Preset 3
A XX1010
9 XX1001
8 XX1000
7 XX0111 Preset 4
6 XX0110
5 XX0101
4 XX0100
3 XX0011
2 XX0010
1 XX0001
0 XX0000
WVR7200 Installation and Safety Instructions
Encoded
mode
selection
No action
CMPST B
CMPST A
SDI B
SDI A
Channel B
Channel A
Preset 8
Preset 7
Preset 6
Preset 5
Preset 4
Preset 3
Preset 2
Preset 1
Unused
