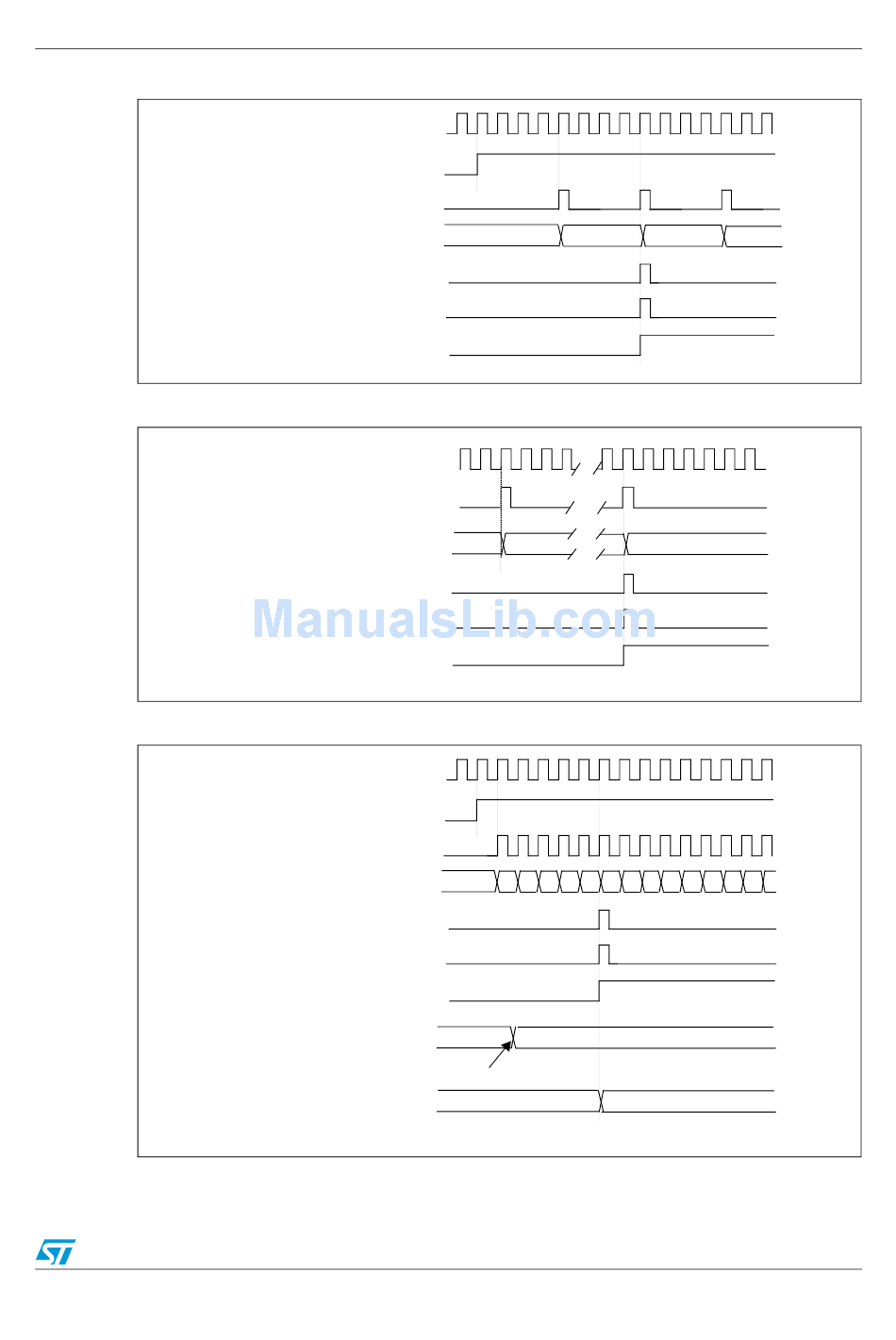

Figure 66. Counter timing diagram, internal clock divided by 4, TIMx_ARR=0x36

Note: Here, center-aligned mode 2 or 3 is used with an UIF on overflow

Figure 67. Counter timing diagram, internal clock divided by N

Figure 68. Counter timing diagram, update event with ARPE=1 (counter underflow)

CK_PSC
CNT_EN
Timer clock = CK_CNT
Counter register
Counter overflow
Update event (UEV)
Update interrupt flag (UIF)
CK_PSC
Timer clock = CK_CNT
Counter register
Counter underflow
Update event (UEV)
Update interrupt flag (UIF)
CK_PSC
CEN
Timer clock = CK_CNT
Counter register
Counter underflow
Update event (UEV)
Update interrupt flag (UIF)
Auto-reload preload register
Write a new value in TIMx_ARR
Auto-reload active register
Advanced-control timers (TIM1&TIM8)
