3.3 Installation

3.3.1 Standalone

RS300 devices can be placed as standalone routers on a flat, stable surface.
Make sure there is enough space around the router (for ventilation purposes) and check that the power cord and
data cables can easily reach it.
Workplace conditions. Main characteristics:
• Avoid humid and/or dusty locations.
• Direct exposure to sunlight and other heat sources should be avoided. The device should not be placed amongst
papers, magazines or other elements that could hinder natural air circulation.
• The device should not be placed close to strong electromagnetic fields (such as speakers, engines, etc.).
• Knocks and/or strong vibrations should be avoided during transport, operation and storage.

3.3.2 Wall mounting

The RS300 can be mounted on the wall.
There are two mounting slots on the underside of the device that can be used to secure it to a wall.
We recommend the following accessories for wall mounting, valid for solid and Gypsum board (plaster) walls:
• 2 screws: [3.5x30 mm coach screw with a 90-degree head angle].

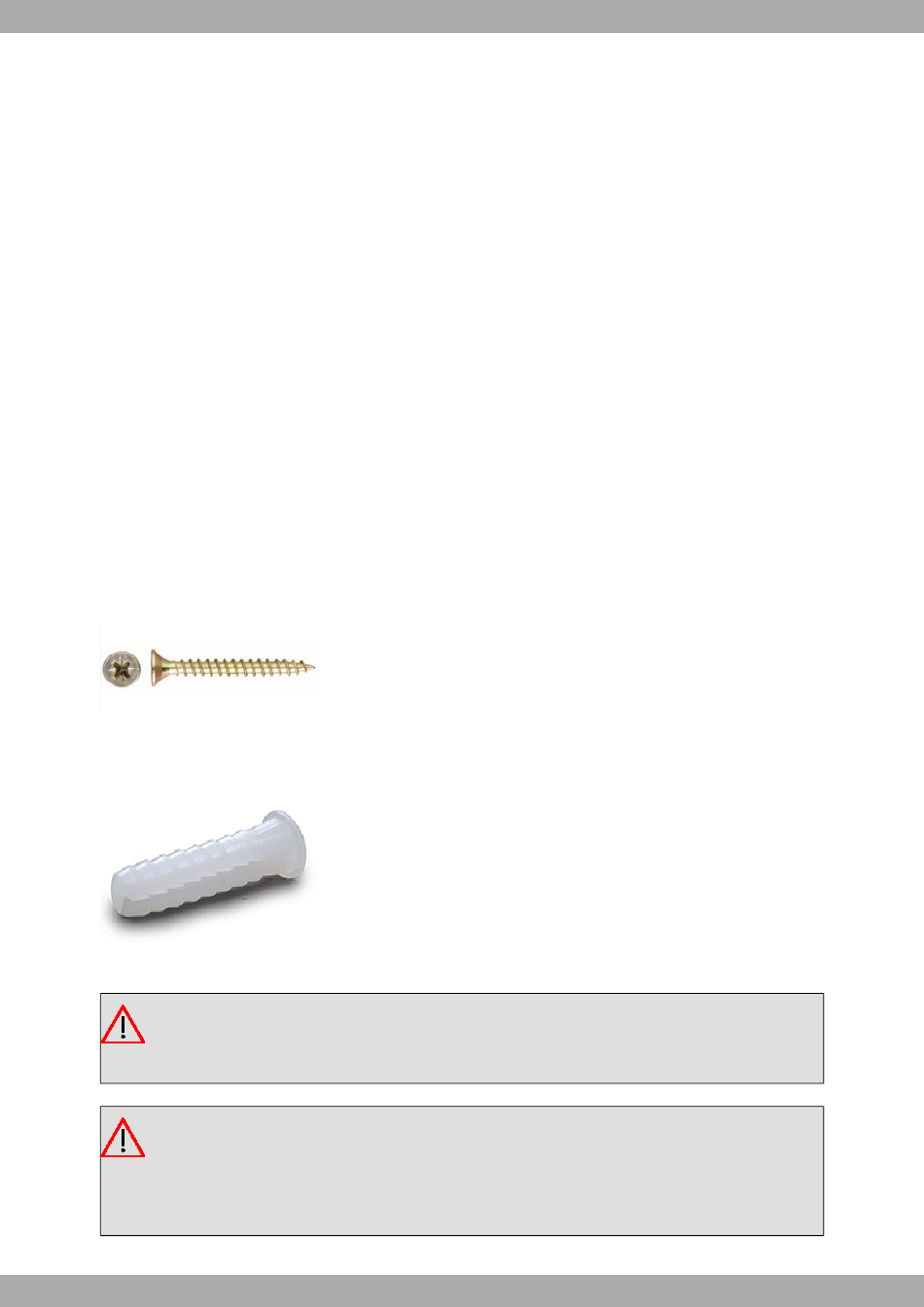

Screw
Fig. 8:
• 2 wall anchors: [8 mm diameter white ribbed wall anchor].
Wall anchor
Fig. 9:
Warning
The screws must go into a wall stud (wood) or a wall anchor of the appropriate type for the wall. Screws
into drywall are not strong enough to mount the router.
Warning
Make sure that there are no concealed pipes and cables at the desired drilling location before drilling
any mounting holes. Damage to electricity cables, gas, water and sewage pipes can result in death or
material damage. Choose the installation location so that as few obstacles or electrical appliances as
possible disturb the connection.
