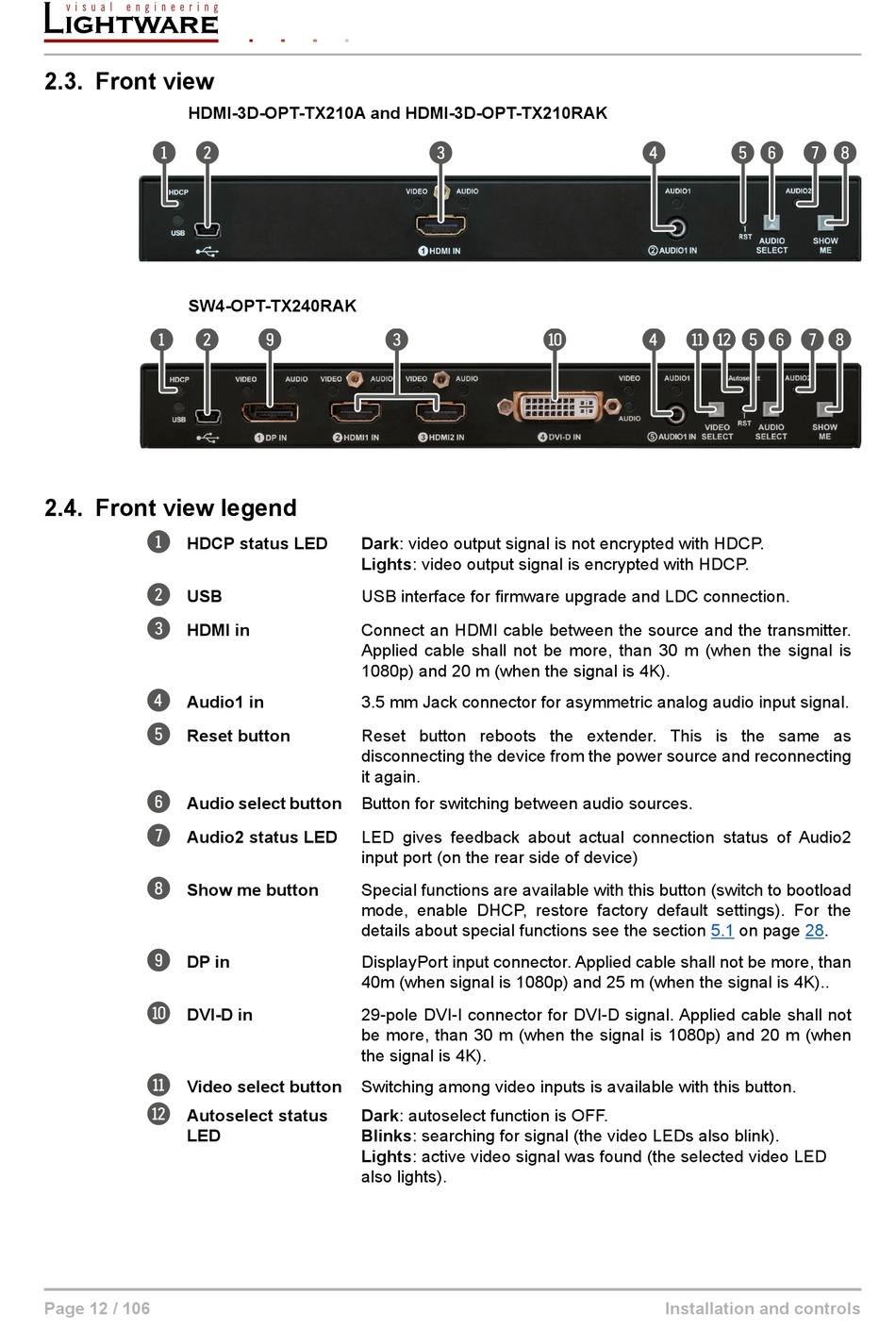

2.3. Front view

HDMI-3D-OPT-TX210A and HDMI-3D-OPT-TX210RAK
1 2
SW4-OPT-TX240RAK
1 2

2.4. Front view legend

1
HDCP status LED
2
USB
3
HDMI in
4
Audio1 in
5
Reset button
6
Audio select button
7
Audio2 status LED
8
Show me button
9
DP in
q
DVI-D in
w
Video select button
e
Autoselect status
LED
Page 12 / 106
3
9 3
Dark: video output signal is not encrypted with HDCP.
Lights: video output signal is encrypted with HDCP.
USB interface for firmware upgrade and LDC connection.
Connect an HDMI cable between the source and the transmitter.
Applied cable shall not be more, than 30 m (when the signal is
1080p) and 20 m (when the signal is 4K).
3.5 mm Jack connector for asymmetric analog audio input signal.
Reset button reboots the extender. This is the same as
disconnecting the device from the power source and reconnecting
it again.
Button for switching between audio sources.
LED gives feedback about actual connection status of Audio2
input port (on the rear side of device)
Special functions are available with this button (switch to bootload
mode, enable DHCP, restore factory default settings). For the
details about special functions see the section
DisplayPort input connector. Applied cable shall not be more, than
40m (when signal is 1080p) and 25 m (when the signal is 4K)..
29-pole DVI-I connector for DVI-D signal. Applied cable shall not
be more, than 30 m (when the signal is 1080p) and 20 m (when
the signal is 4K).
Switching among video inputs is available with this button.
Dark: autoselect function is OFF.
Blinks: searching for signal (the video LEDs also blink).
Lights: active video signal was found (the selected video LED
also lights).
4
q 4 we 56 78
5.1
Installation and controls
5 6 7 8
on page 28.
