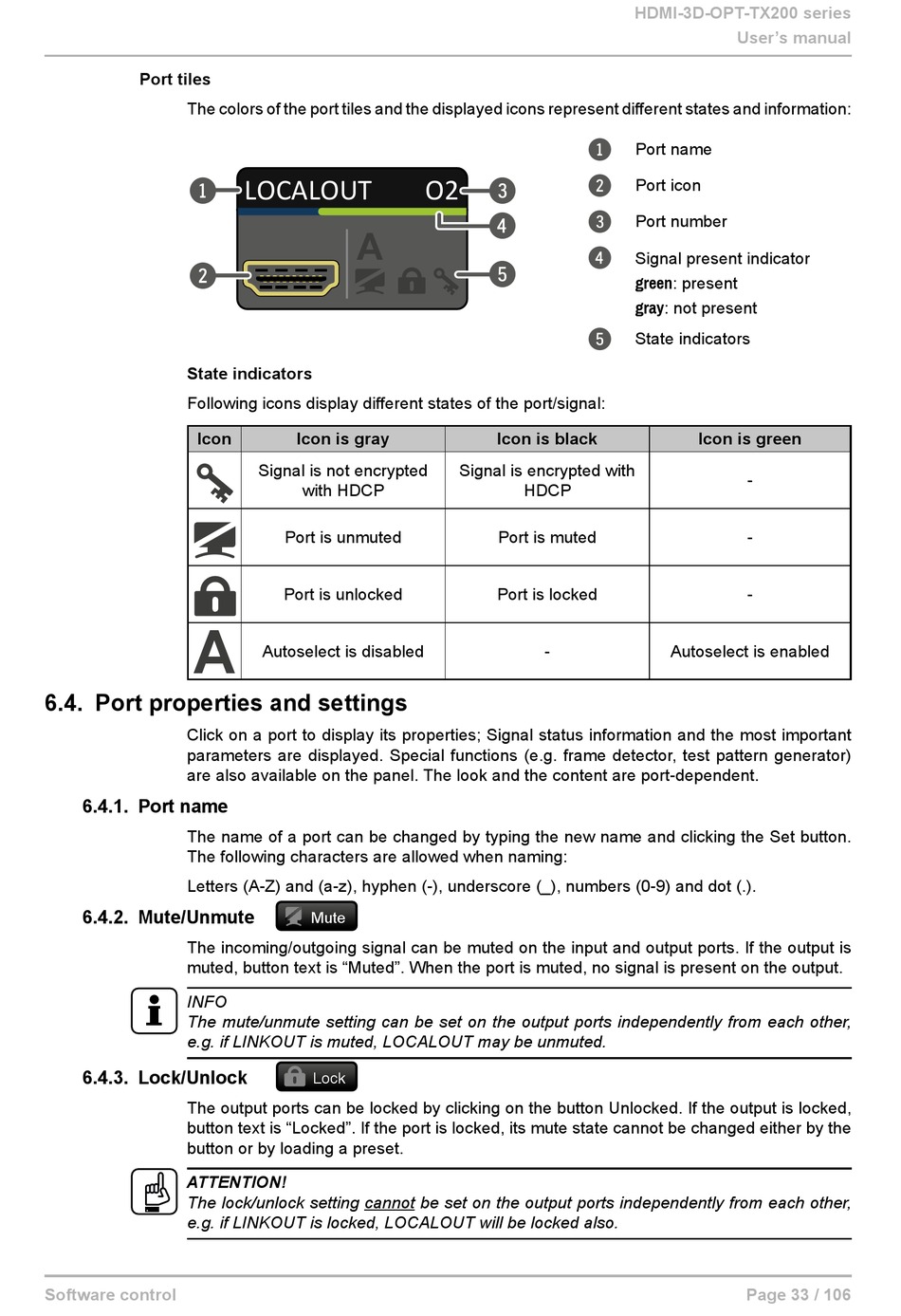

Port tiles
The colors of the port tiles and the displayed icons represent different states and information:
1
2
State indicators
Following icons display different states of the port/signal:
Icon
A
A
A
A

6.4. Port properties and settings

Click on a port to display its properties; Signal status information and the most important
parameters are displayed. Special functions (e.g. frame detector, test pattern generator)
are also available on the panel. The look and the content are port-dependent.
6.4.1. Port name
The name of a port can be changed by typing the new name and clicking the Set button.
The following characters are allowed when naming:
Letters (A-Z) and (a-z), hyphen (-), underscore (_), numbers (0-9) and dot (.).
6.4.2. Mute/Unmute
The incoming/outgoing signal can be muted on the input and output ports. If the output is
muted, button text is "Muted". When the port is muted, no signal is present on the output.
INFO
The mute/unmute setting can be set on the output ports independently from each other,
e.g. if LINKOUT is muted, LOCALOUT may be unmuted.
6.4.3. Lock/Unlock
The output ports can be locked by clicking on the button Unlocked. If the output is locked,
button text is "Locked". If the port is locked, its mute state cannot be changed either by the
button or by loading a preset.
ATTENTION!
The lock/unlock setting cannot be set on the output ports independently from each other,
e.g. if LINKOUT is locked, LOCALOUT will be locked also.
Software control
LOCALOUT
A
Icon is gray
Signal is not encrypted
with HDCP
Port is unmuted
Port is unlocked
Autoselect is disabled
A
Mute
A
Lock
1
O2
2
3
3
4
4
5
5
Icon is black
Signal is encrypted with
HDCP
Port is muted
Port is locked
-
HDMI-3D-OPT-TX200 series
User's manual
Port name
Port icon
Port number
Signal present indicator
green: present
gray: not present
State indicators
Icon is green
-
-
-
Autoselect is enabled
