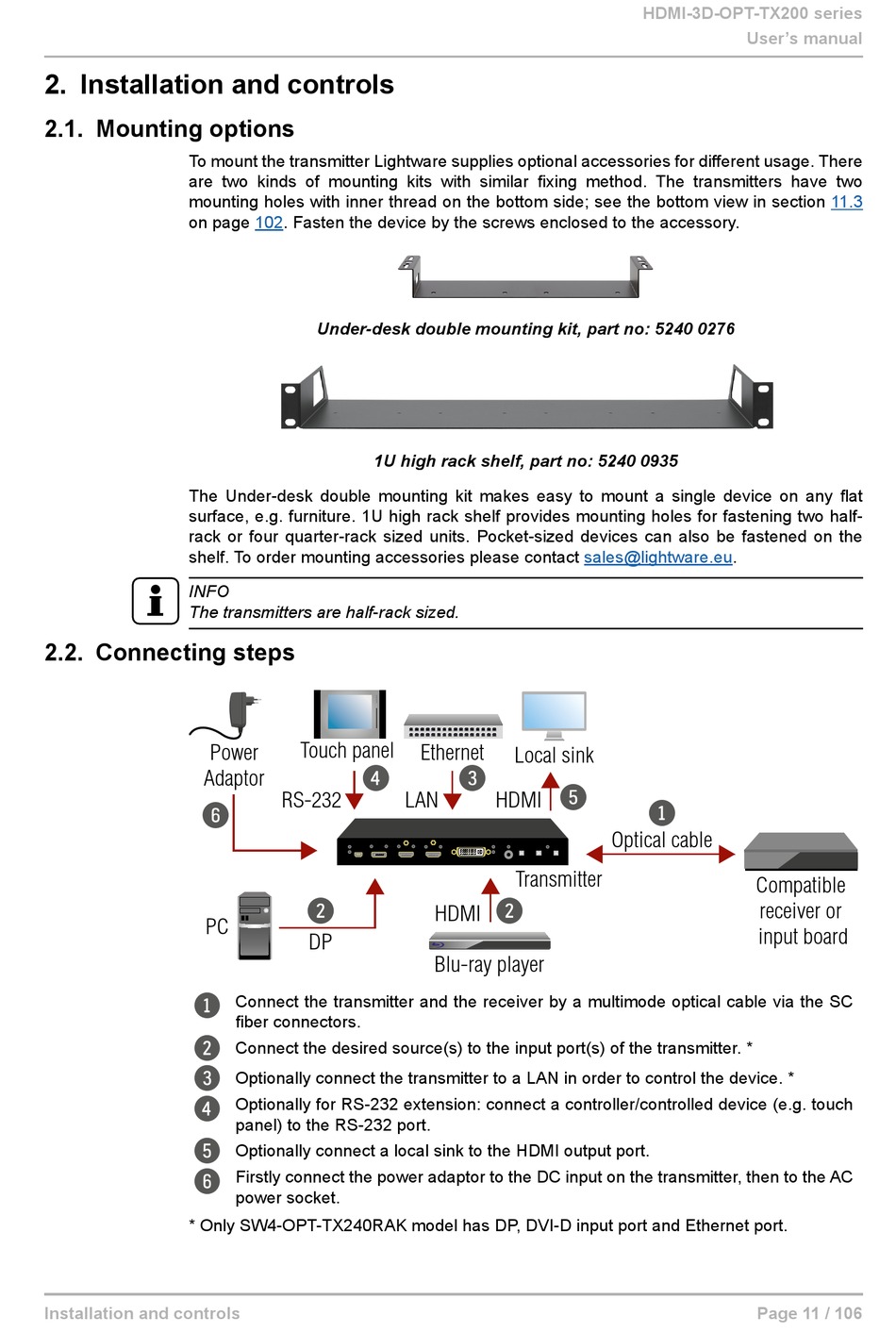

2. Installation and controls

2.1. Mounting options
To mount the transmitter Lightware supplies optional accessories for different usage. There
are two kinds of mounting kits with similar fixing method. The transmitters have two
mounting holes with inner thread on the bottom side; see the bottom view in section
on page 102. Fasten the device by the screws enclosed to the accessory.
The Under-desk double mounting kit makes easy to mount a single device on any flat
surface, e.g. furniture. 1U high rack shelf provides mounting holes for fastening two half-
rack or four quarter-rack sized units. Pocket-sized devices can also be fastened on the
shelf. To order mounting accessories please contact sales@lightware.eu.
INFO
The transmitters are half-rack sized.

2.2. Connecting steps

Power
Adaptor
6
PC
1
2
3
4
5
6
* Only SW4-OPT-TX240RAK model has DP, DVI-D input port and Ethernet port.
Installation and controls
Under-desk double mounting kit, part no: 5240 0276
1U high rack shelf, part no: 5240 0935
Touch panel
4
RS-232 LAN
2
DP
Connect the transmitter and the receiver by a multimode optical cable via the SC
fiber connectors.
Connect the desired source(s) to the input port(s) of the transmitter. *
Optionally connect the transmitter to a LAN in order to control the device. *
Optionally for RS-232 extension: connect a controller/controlled device (e.g. touch
panel) to the RS-232 port.
Optionally connect a local sink to the HDMI output port.
Firstly connect the power adaptor to the DC input on the transmitter, then to the AC
power socket.
Ethernet
Local sink
3
5
HDMI
Transmitter
2
HDMI
Blu-ray player
HDMI-3D-OPT-TX200 series
User's manual
1
Optical cable
Compatible
receiver or
input board
Page 11 / 106
