6.7.2. Create or modify an Event

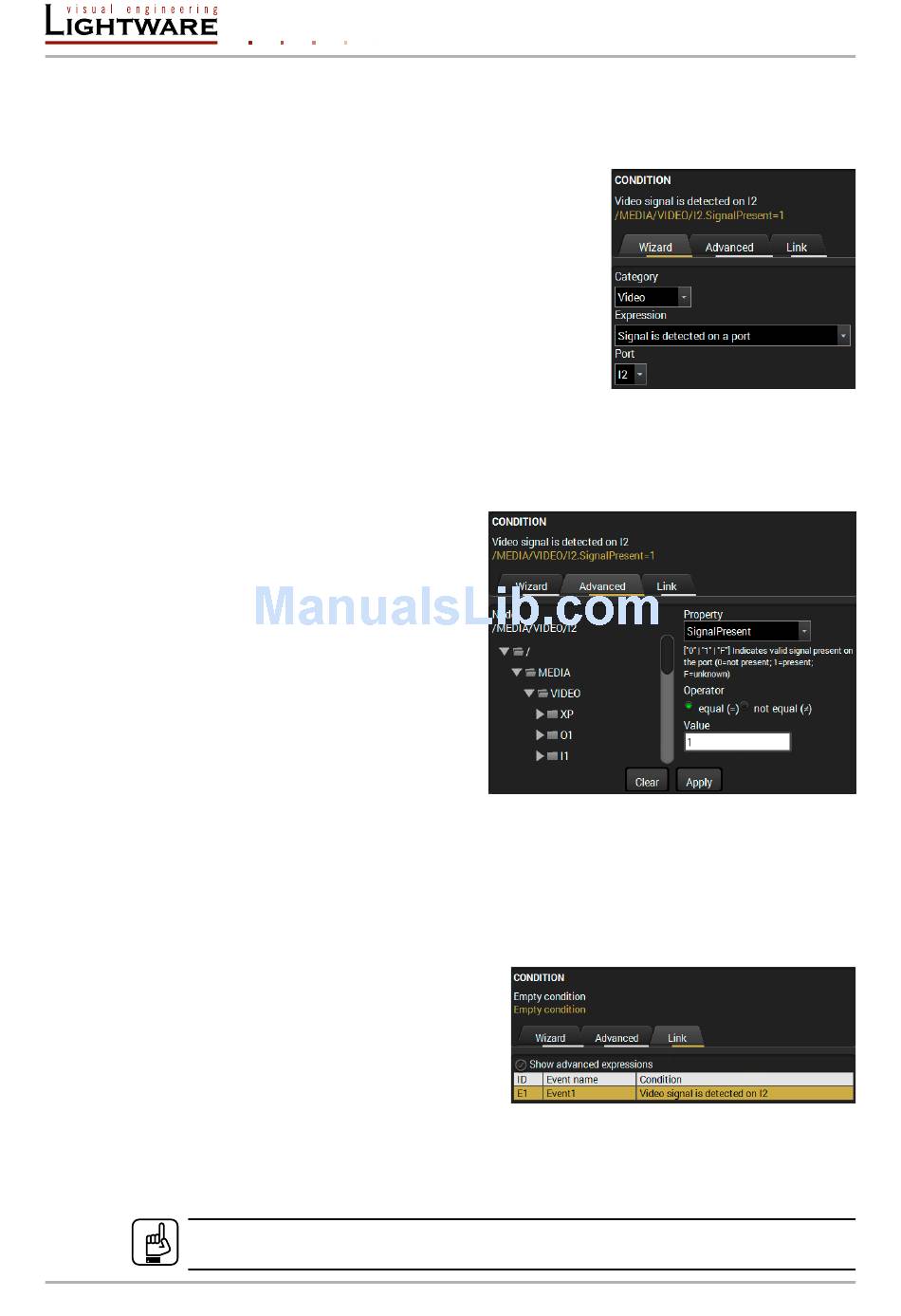

Wizard mode
The wizard mode lists the most common conditions and actions, so the user does not have
to look for LW3 nodes and properties.
Step 1. Click on the Edit button of the desired Event; the
Step 2. The wizard mode is displayed as default. Select
Step 3. Select the desired Expression from the drop-
Step 4. Press the Apply button to store the settings of the
Advanced mode
The goal of this mode is the same as of the wizard: set the properties and methods for
conditions and actions. The difference is the number of the available and usable properties
and methods of the LW3 protocol. Advanced mode allows almost all of it.
Step 1. Click on the Edit button of the
Step 2. The wizard mode is the default,
Step 3. Select the desired Property from
Step 4. Set the desired value and operator, then press the Apply button to store settings.
The Link tool
The new interface allows creating more actions to the same condition. In that case, a
condition can trigger more actions. To set such an Event, the Link tool has been introduced.
Step 1. Click on the Edit button of the
Step 2. The wizard mode is displayed as
Step 3. All the saved Events are analyzed
Step 4. Select the desired Condition and press the Apply button to store the settings.
ATTENTION!
The structure of the Action panel is the same as the Condition; see the right panel.
