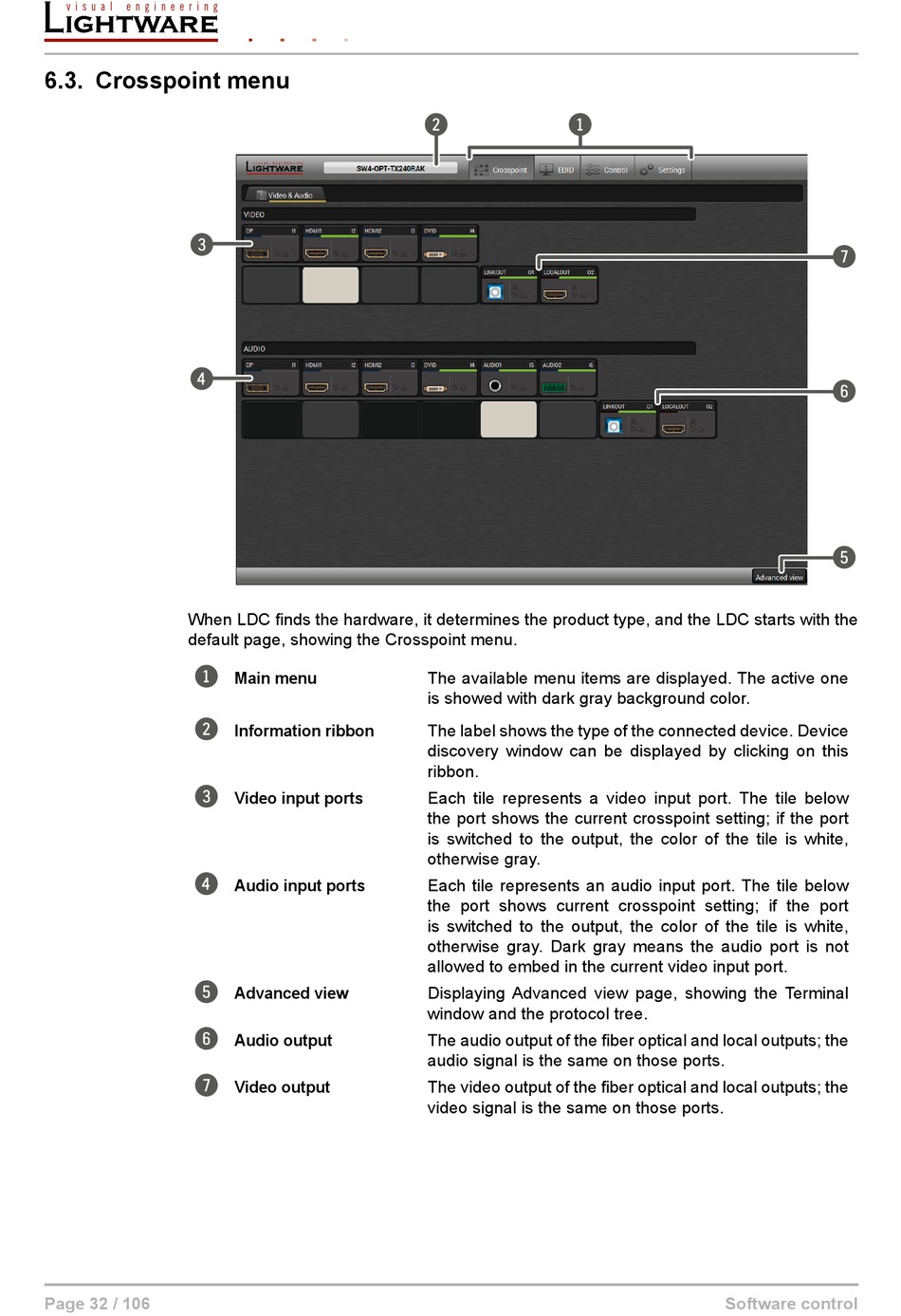

6.3. Crosspoint menu
3
4
When LDC finds the hardware, it determines the product type, and the LDC starts with the
default page, showing the Crosspoint menu.
1
2
3
4
5
6
7
Page 32 / 106
Main menu
Information ribbon
Video input ports
Audio input ports
Advanced view
Audio output
Video output
2 1
The available menu items are displayed. The active one
is showed with dark gray background color.
The label shows the type of the connected device. Device
discovery window can be displayed by clicking on this
ribbon.
Each tile represents a video input port. The tile below
the port shows the current crosspoint setting; if the port
is switched to the output, the color of the tile is white,
otherwise gray.
Each tile represents an audio input port. The tile below
the port shows current crosspoint setting; if the port
is switched to the output, the color of the tile is white,
otherwise gray. Dark gray means the audio port is not
allowed to embed in the current video input port.
Displaying Advanced view page, showing the Terminal
window and the protocol tree.
The audio output of the fiber optical and local outputs; the
audio signal is the same on those ports.
The video output of the fiber optical and local outputs; the
video signal is the same on those ports.
7
6
5
Software control
