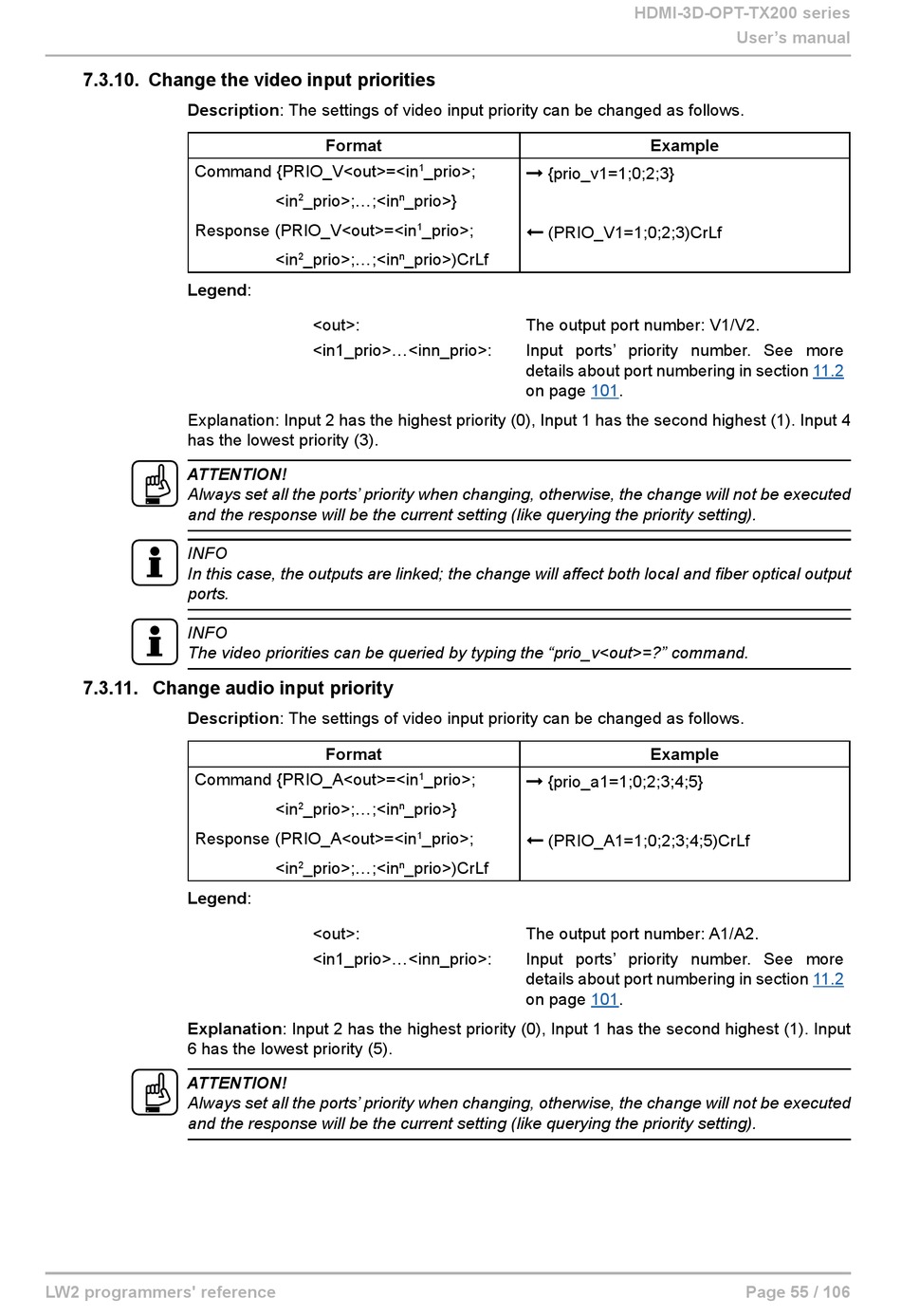

Lightware HDMI-3D-OPT-TX210RAK User Manual page 55

7.3.10. Change the video input priorities
Description: The settings of video input priority can be changed as follows.
Command {PRIO_V<out>=<in
Response (PRIO_V<out>=<in
Legend:
Explanation: Input 2 has the highest priority (0), Input 1 has the second highest (1). Input 4
has the lowest priority (3).
ATTENTION!
Always set all the ports' priority when changing, otherwise, the change will not be executed
and the response will be the current setting (like querying the priority setting).
INFO
In this case, the outputs are linked; the change will affect both local and fiber optical output
ports.
INFO
The video priorities can be queried by typing the "prio_v<out>=?" command.
7.3.11. Change audio input priority
Description: The settings of video input priority can be changed as follows.
Command {PRIO_A<out>=<in
Response (PRIO_A<out>=<in
Legend:
Explanation: Input 2 has the highest priority (0), Input 1 has the second highest (1). Input
6 has the lowest priority (5).
ATTENTION!
Always set all the ports' priority when changing, otherwise, the change will not be executed
and the response will be the current setting (like querying the priority setting).
LW2 programmers' reference
Format
_prio>;
1
<in _prio>;...;<in _prio>}
2 n
_prio>;
1
<in _prio>;...;<in _prio>)CrLf
2 n
<out>:
<in1_prio>...<inn_prio>:
Format
_prio>;
1
<in _prio>;...;<in _prio>}
2 n
_prio>;
1
<in _prio>;...;<in _prio>)CrLf
2 n
<out>:
<in1_prio>...<inn_prio>:
HDMI-3D-OPT-TX200 series
Example
 {prio_v1=1;0;2;3}
 (PRIO_V1=1;0;2;3)CrLf
The output port number: V1/V2.
Input ports' priority number. See more
details about port numbering in section
on page 101.
Example
 {prio_a1=1;0;2;3;4;5}
 (PRIO_A1=1;0;2;3;4;5)CrLf
The output port number: A1/A2.
Input ports' priority number. See more
details about port numbering in section
on page 101.
