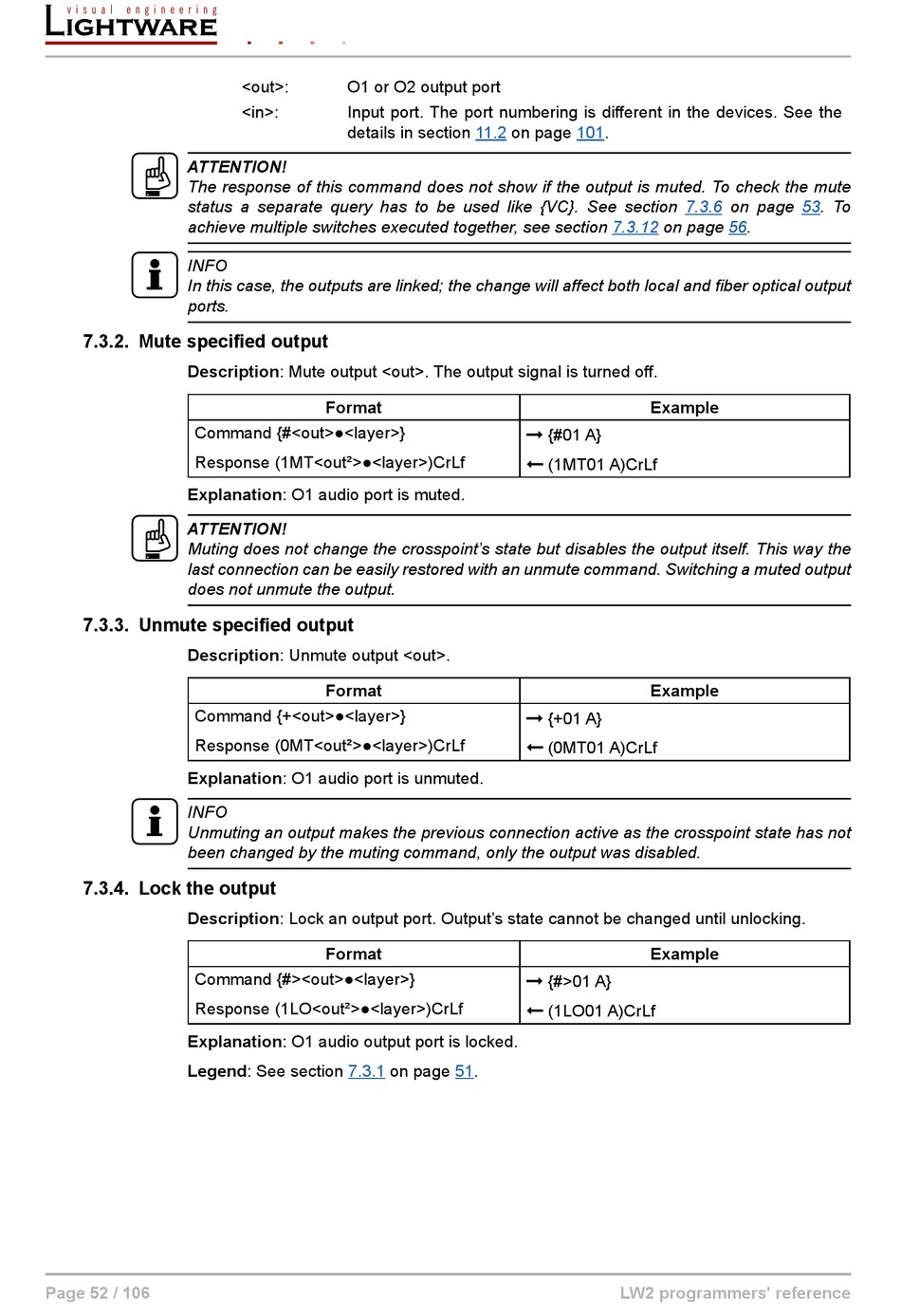

Lightware HDMI-3D-OPT-TX210RAK User Manual page 52

ATTENTION!
The response of this command does not show if the output is muted. To check the mute
status a separate query has to be used like {VC}. See section
achieve multiple switches executed together, see section
INFO
In this case, the outputs are linked; the change will affect both local and fiber optical output
ports.
7.3.2. Mute specified output
Description: Mute output <out>. The output signal is turned off.
Command {#<out>●<layer>}
Response (1MT<out²>●<layer>)CrLf
Explanation: O1 audio port is muted.
ATTENTION!
Muting does not change the crosspoint's state but disables the output itself. This way the
last connection can be easily restored with an unmute command. Switching a muted output
does not unmute the output.
7.3.3. Unmute specified output
Description: Unmute output <out>.
Command {+<out>●<layer>}
Response (0MT<out²>●<layer>)CrLf
Explanation: O1 audio port is unmuted.
INFO
Unmuting an output makes the previous connection active as the crosspoint state has not
been changed by the muting command, only the output was disabled.
7.3.4. Lock the output
Description: Lock an output port. Output's state cannot be changed until unlocking.
Command {#><out>●<layer>}
Response (1LO<out²>●<layer>)CrLf
Explanation: O1 audio output port is locked.
Legend: See section
Page 52 / 106
<out>: O1 or O2 output port
<in>: Input port. The port numbering is different in the devices. See the
details in section
Format
Format
Format
7.3.1 on page 51.
11.2 on page 101.
7.3.12
 {#01 A}
 (1MT01 A)CrLf
 {+01 A}
 (0MT01 A)CrLf
 {#>01 A}
 (1LO01 A)CrLf
LW2 programmers' reference
7.3.6 on page 53. To
on page 56.
Example
Example
Example
