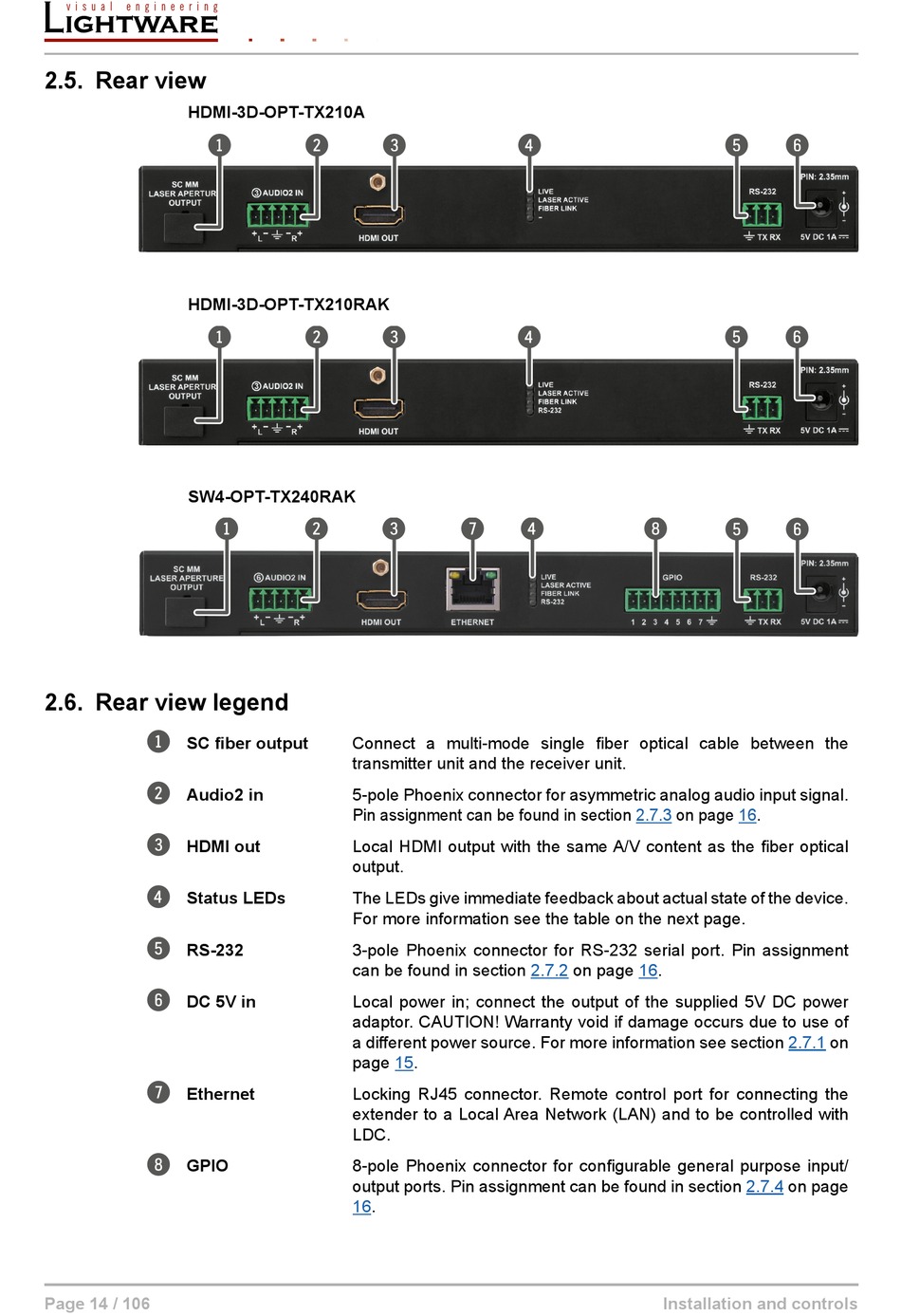

2.5. Rear view

HDMI-3D-OPT-TX210A
1
HDMI-3D-OPT-TX210RAK
1
SW4-OPT-TX240RAK
1

2.6. Rear view legend

1
SC fiber output
2
Audio2 in
3
HDMI out
4
Status LEDs
5
RS-232
6
DC 5V in
7
Ethernet
8
GPIO
Page 14 / 106
2 3
2 3
2 3 7
Connect a multi-mode single fiber optical cable between the
transmitter unit and the receiver unit.
5-pole Phoenix connector for asymmetric analog audio input signal.
Pin assignment can be found in section
Local HDMI output with the same A/V content as the fiber optical
output.
The LEDs give immediate feedback about actual state of the device.
For more information see the table on the next page.
3-pole Phoenix connector for RS-232 serial port. Pin assignment
can be found in section
Local power in; connect the output of the supplied 5V DC power
adaptor. CAUTION! Warranty void if damage occurs due to use of
a different power source. For more information see section
page 15.
Locking RJ45 connector. Remote control port for connecting the
extender to a Local Area Network (LAN) and to be controlled with
LDC.
8-pole Phoenix connector for configurable general purpose input/
output ports. Pin assignment can be found in section
16.
4
4
4 8
2.7.3 on page 16.
2.7.2 on page 16.
Installation and controls
5 6
5 6
5 6
2.7.1 on
2.7.4 on page
