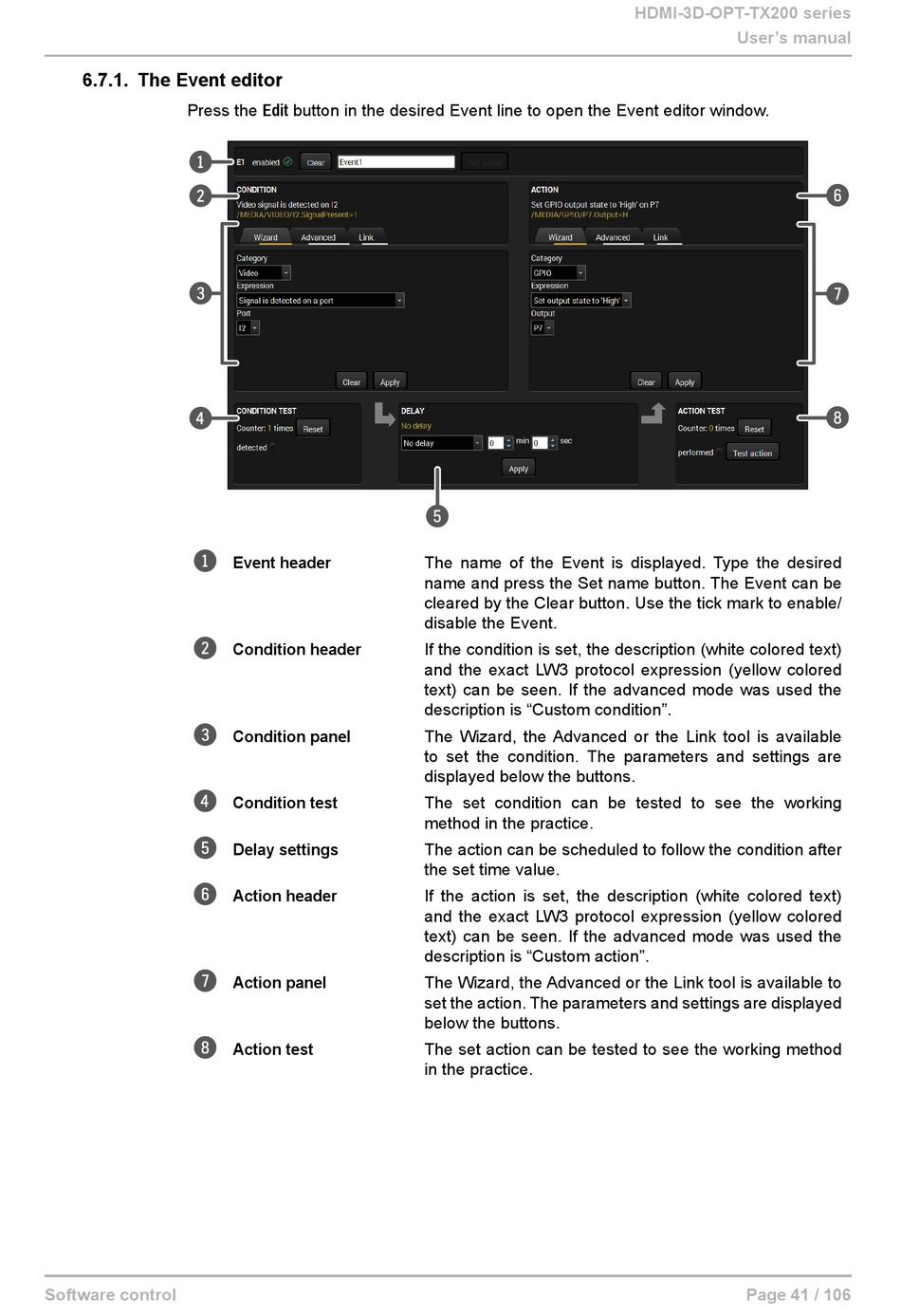

6.7.1. The Event editor
Press the Edit button in the desired Event line to open the Event editor window.
1
2
3
4
1
2
3
4
5
6
7
8
Software control
Event header
Condition header
Condition panel
Condition test
Delay settings
Action header
Action panel
Action test
5
The name of the Event is displayed. Type the desired
name and press the Set name button. The Event can be
cleared by the Clear button. Use the tick mark to enable/
disable the Event.
If the condition is set, the description (white colored text)
and the exact LW3 protocol expression (yellow colored
text) can be seen. If the advanced mode was used the
description is "Custom condition".
The Wizard, the Advanced or the Link tool is available
to set the condition. The parameters and settings are
displayed below the buttons.
The set condition can be tested to see the working
method in the practice.
The action can be scheduled to follow the condition after
the set time value.
If the action is set, the description (white colored text)
and the exact LW3 protocol expression (yellow colored
text) can be seen. If the advanced mode was used the
description is "Custom action".
The Wizard, the Advanced or the Link tool is available to
set the action. The parameters and settings are displayed
below the buttons.
The set action can be tested to see the working method
in the practice.
