ETHERNET

VGA VID 1 and 2

2026265-075C

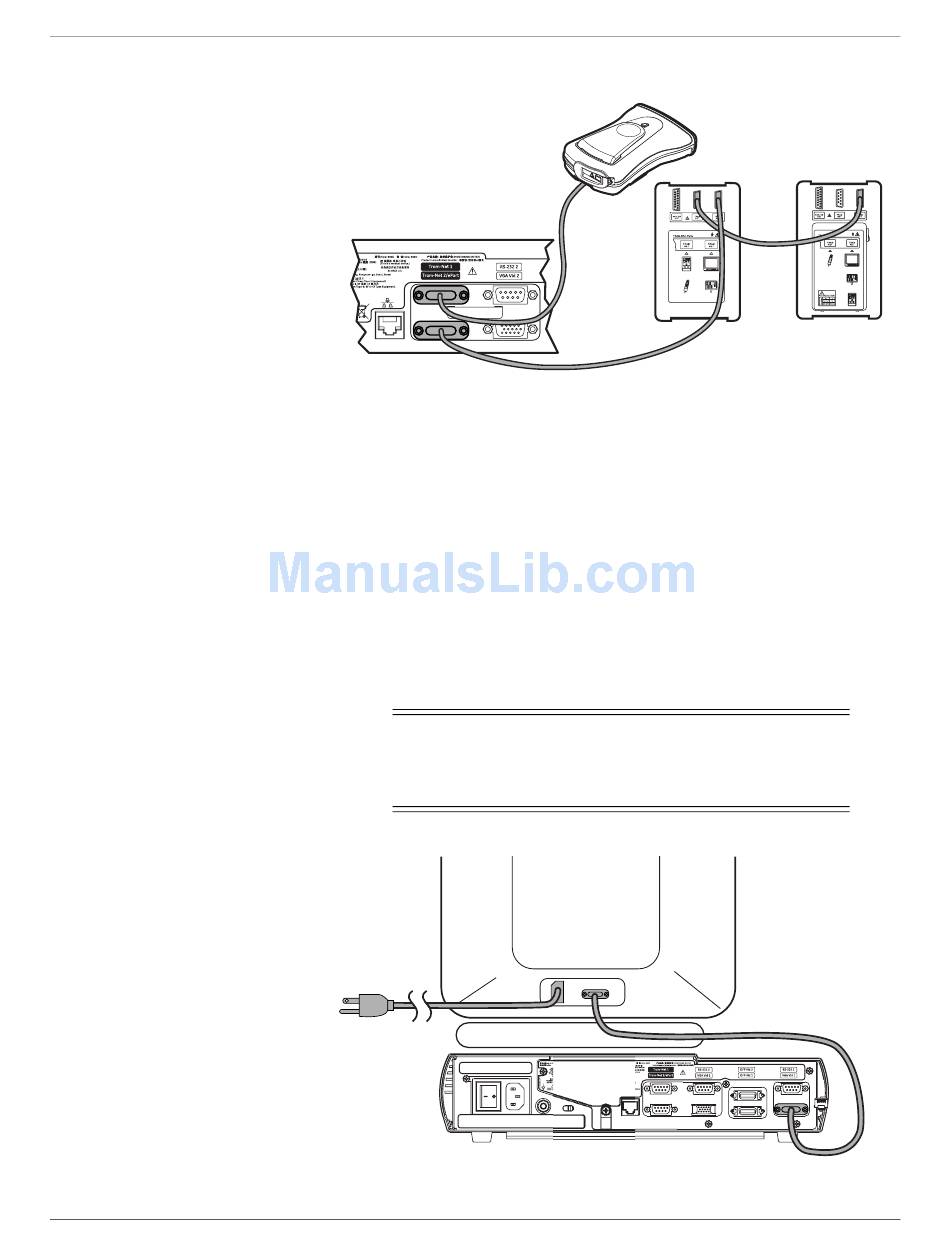

Installation: Back panel connections
The ETHERNET connector provides an ANSI/IEEE 802.3 10BaseT
Ethernet standard interface to the Unity Network using a Category 5
network cable. The connector is an 8-pin, RJ-45 type.
NOTE
The number of video connectors varies by configuration.
The two VGA connectors provide an interface to analog (VGA) displays.
The connector is a 15-pin, high density D type.
WARNING
Do not connect a monochrome display to the Solar
8000M/i patient monitor. Visual alarm indictors may not
appear properly, resulting in a hazard to the patient.
Solar 8000M/i patient monitor
One Tram-rac must have a
power supply.
