Oracle SPARC T7-1 Service Manual page 14

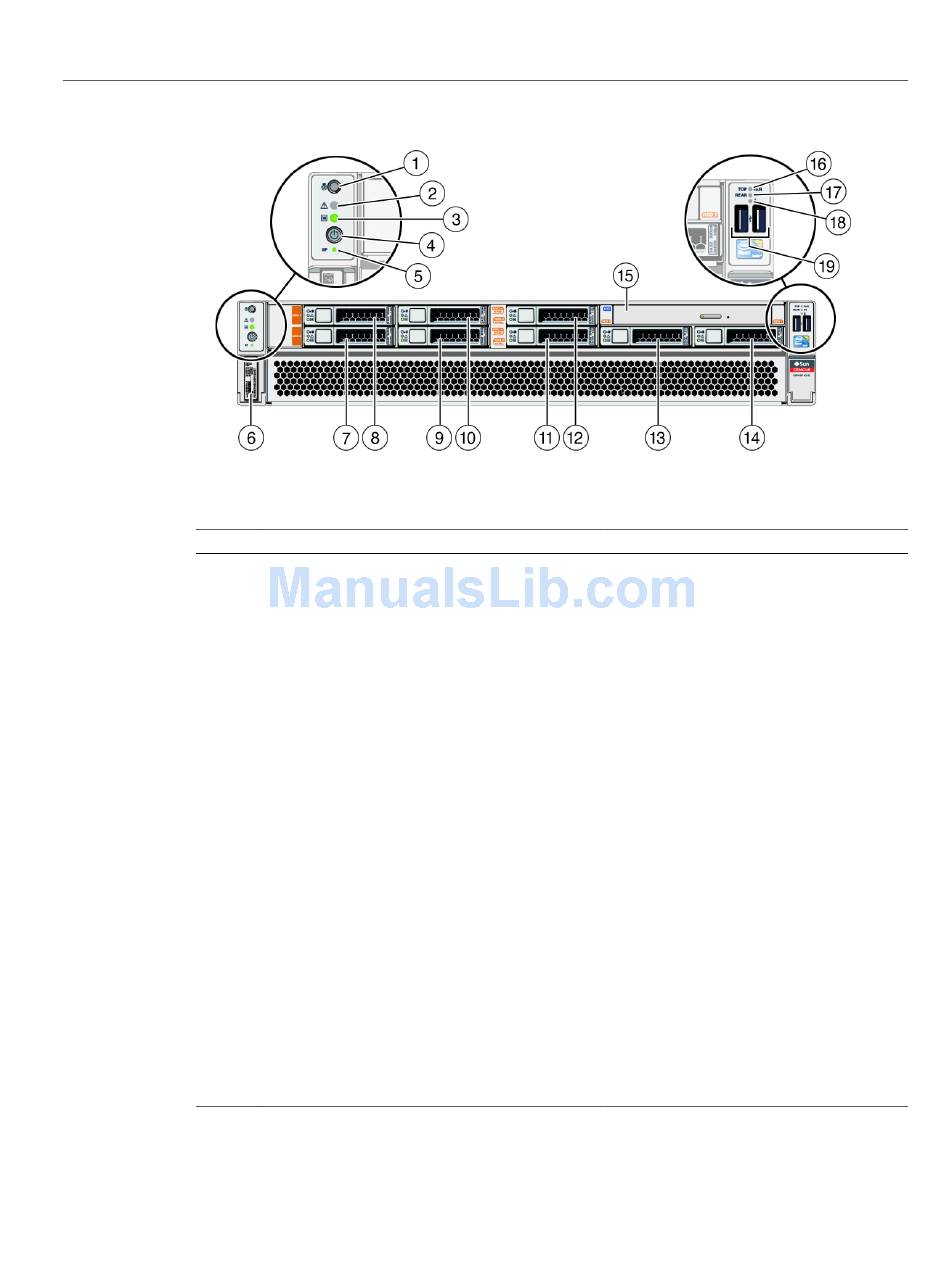

Front Panel Components (Service)
No.
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
14 SPARC T7-1 Server Service Manual • May 2017
Description
Server Locator LED/Locator button (white)
Service Required LED (amber)
Power LED (green)
Server Power button
SP Fault LED (green or amber)
Serial number
HDD 0
HDD 1
HDD 2 or NVMe 0
HDD 3 or NVMe 1
HDD 4 or NVMe 2
HDD 5 or NVMe 3
HDD 6
HDD 7
DVD drive (SATA)
Fan Service LEDs (amber)
Links
"Front Panel Controls and
LEDs" on page 30
"Front Panel Controls and
LEDs" on page 30
"Front Panel Controls and
LEDs" on page 30
"Front Panel Controls and
LEDs" on page 30
"Front Panel Controls and
LEDs" on page 30
"Servicing the SPM" on page 131
"Find the Server Serial Number" on page 44
"Servicing Drives" on page 61
"Servicing Drives" on page 61
"Servicing Drives" on page 61
"Servicing Drives" on page 61
"Servicing Drives" on page 61
"Servicing Drives" on page 61
"Servicing Drives" on page 61
"Servicing Drives" on page 61
"Servicing the DVD Drive" on page 139
"Servicing Fan Modules" on page 73
